Mil Circuit: Wiring Diagram

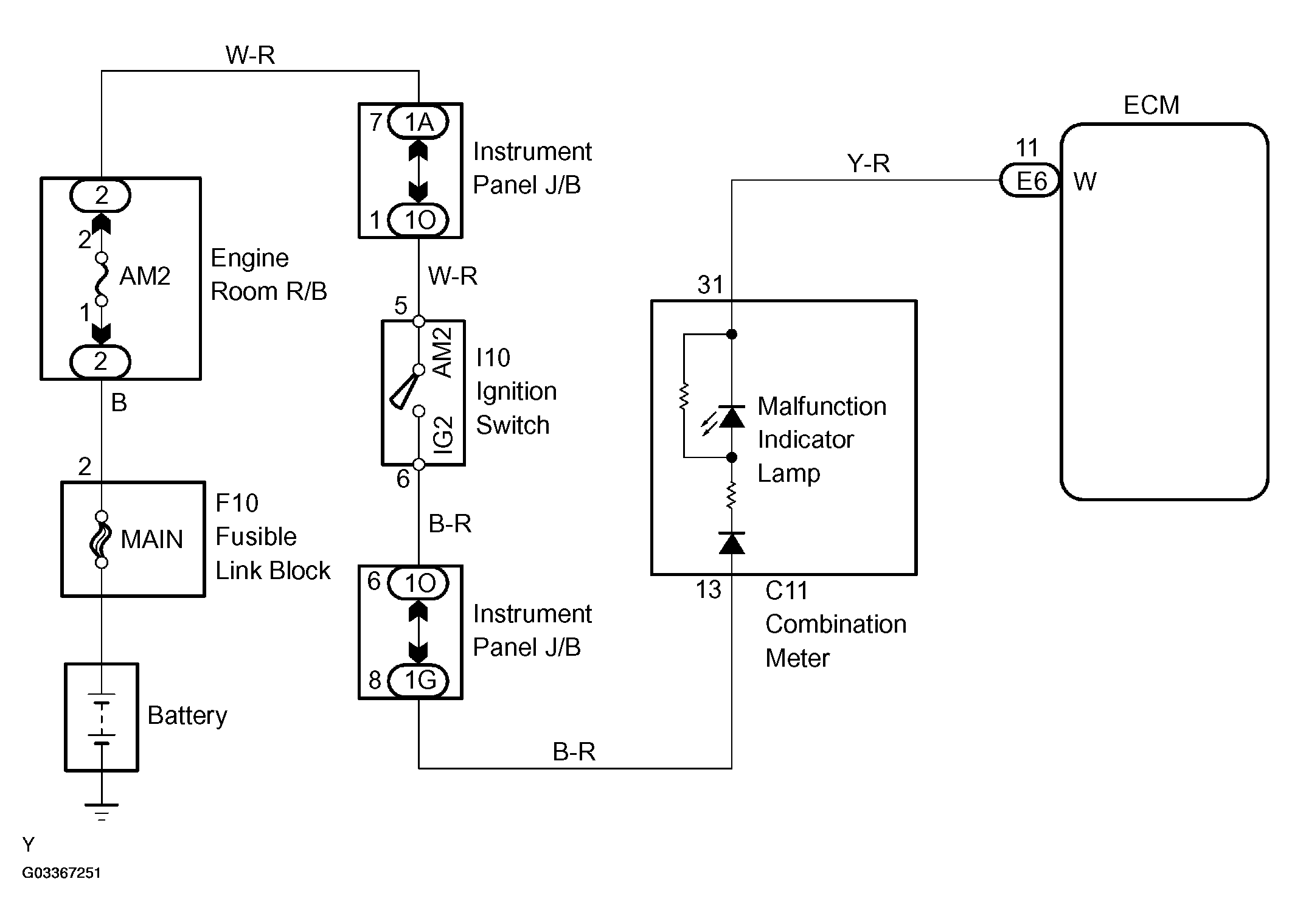

Fig 1: MIL Circuit Wiring Diagram

G03367251

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
