Fuel Pressure Control Module: Diagrams




Component Connector End Views

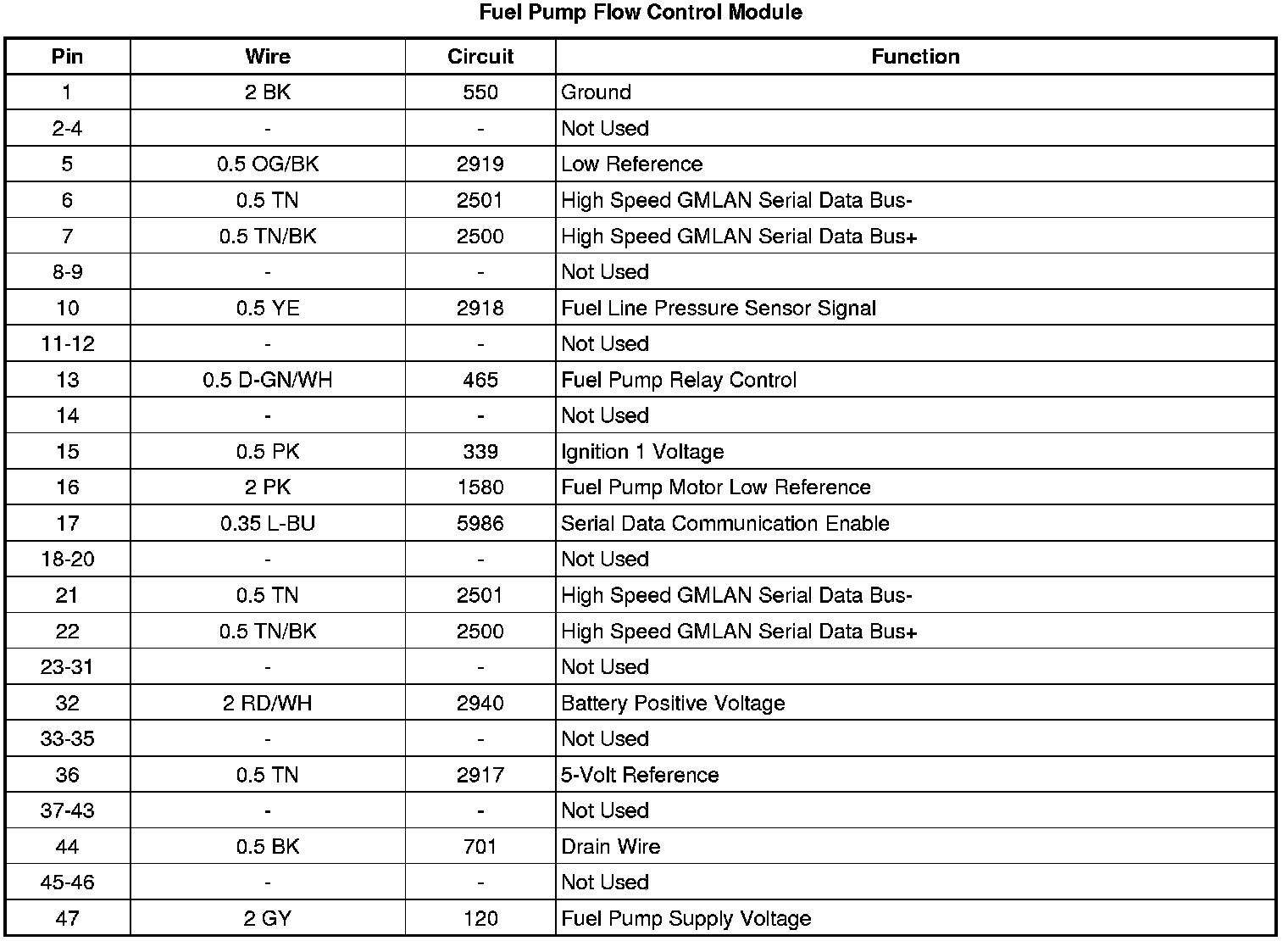

Fuel Pump Flow Control Module
