Air Injection Control Valve: Diagrams

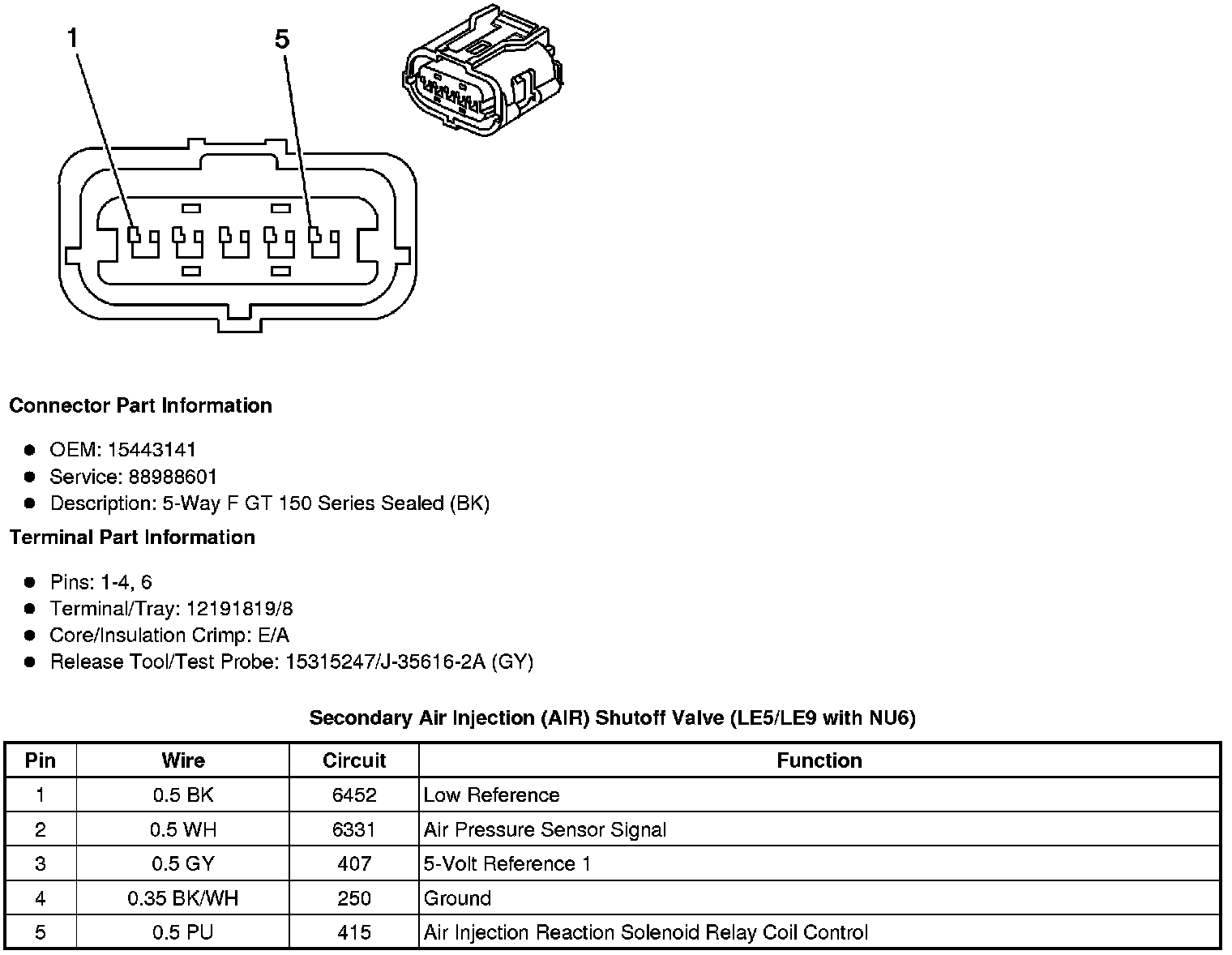

Component Connector End Views

Secondary Air Injection (AIR) Shutoff Valve (LE5/LE9 with NU6)
