Home >> Saturn >> 2009 >> VUE FWD L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Variable Valve Timing Solenoid >> Diagrams

Variable Valve Timing Solenoid: Diagrams




Component Connector End Views

Camshaft Position (CMP) Actuator Solenoid Valve - Exhaust (LAT/LE5/LE9)

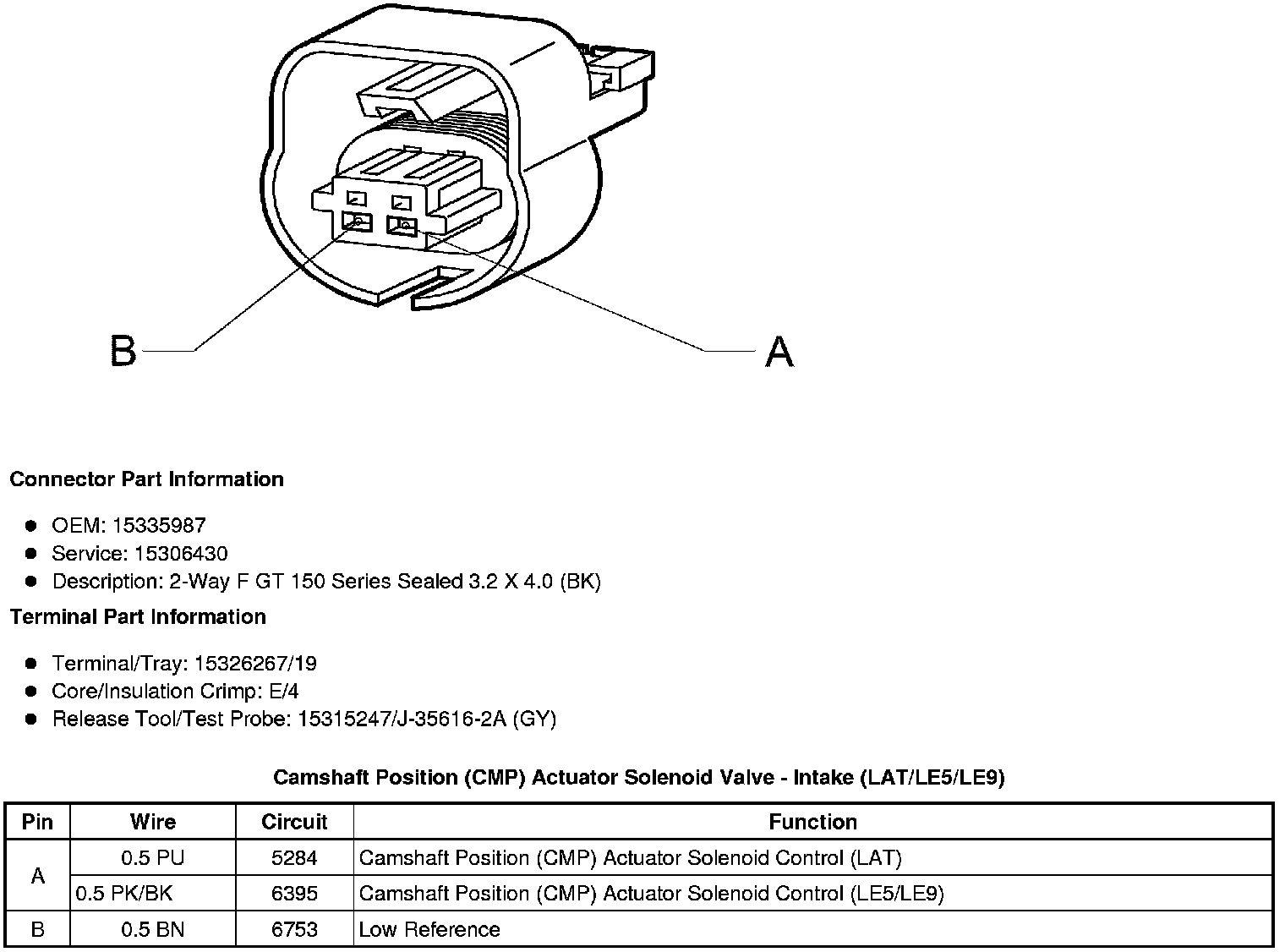

Camshaft Position (CMP) Actuator Solenoid Valve - Intake (LAT/LE5/LE9)
