Oxygen Sensor: Diagrams




Component Connector End Views

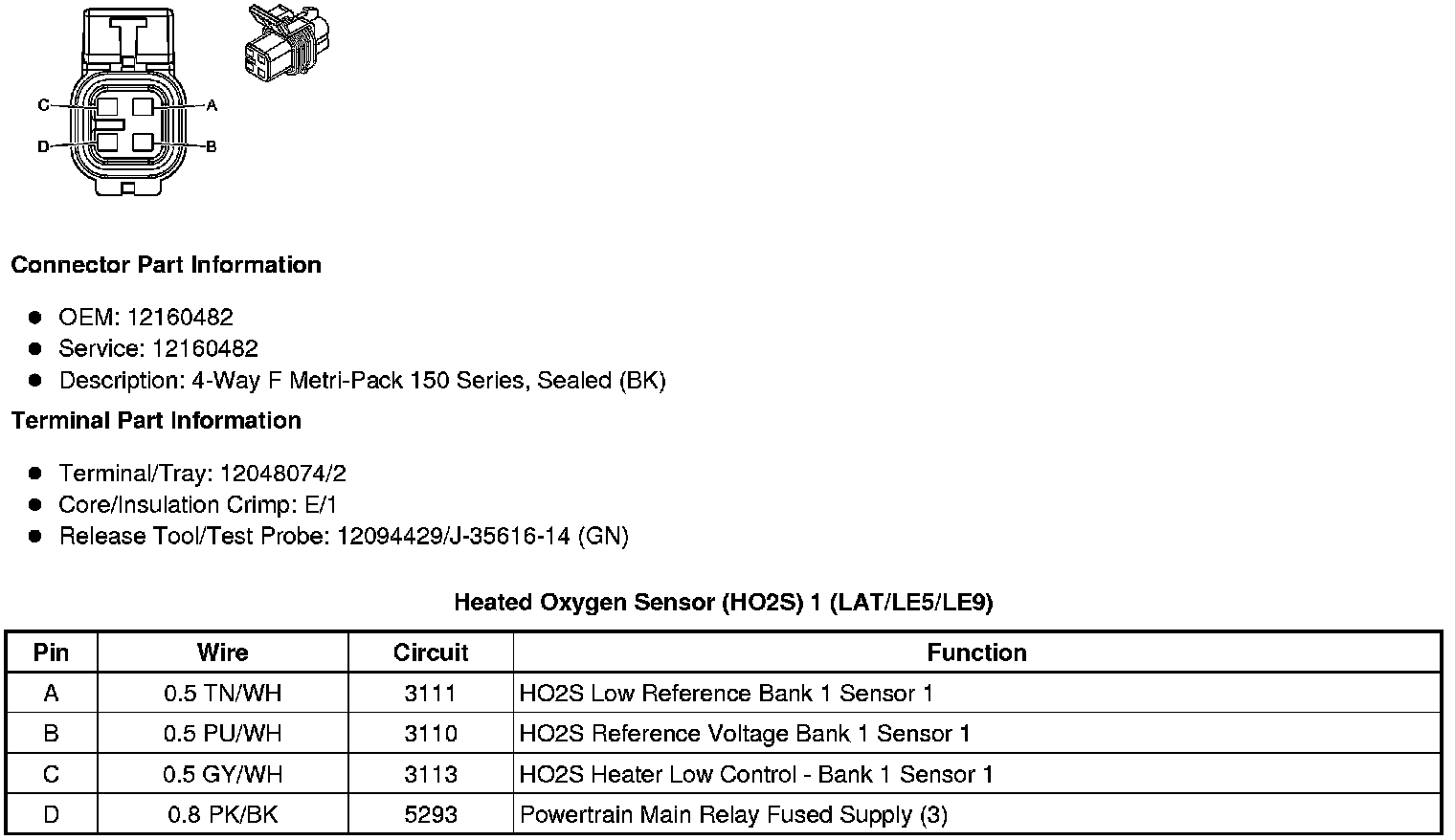

Heated Oxygen Sensor (HO2S) 1 (LAT/LE5/LE9)

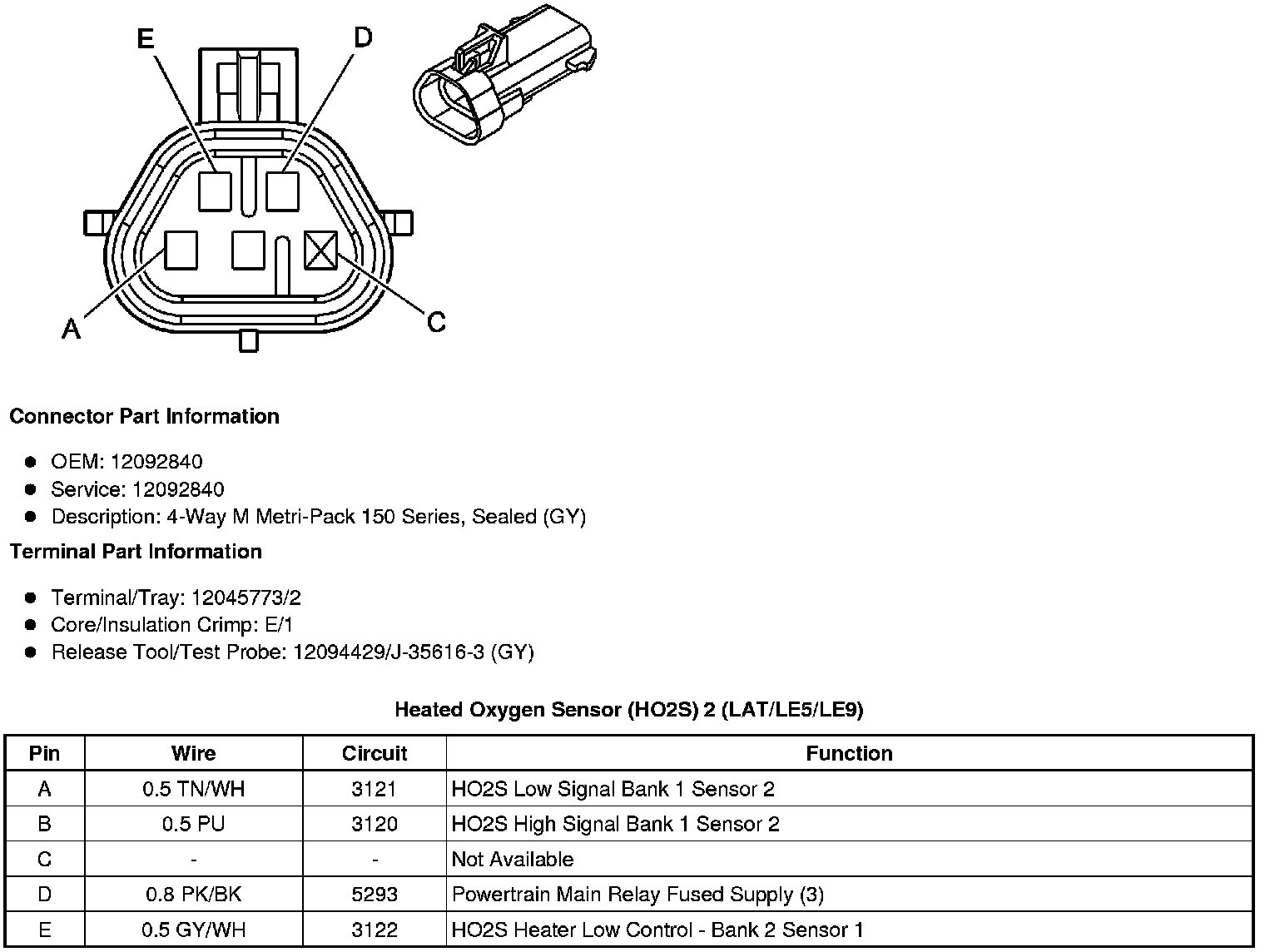

Heated Oxygen Sensor (HO2S) 2 (LAT/LE5/LE9)
