Control Assembly: Diagrams




Component Connector End Views

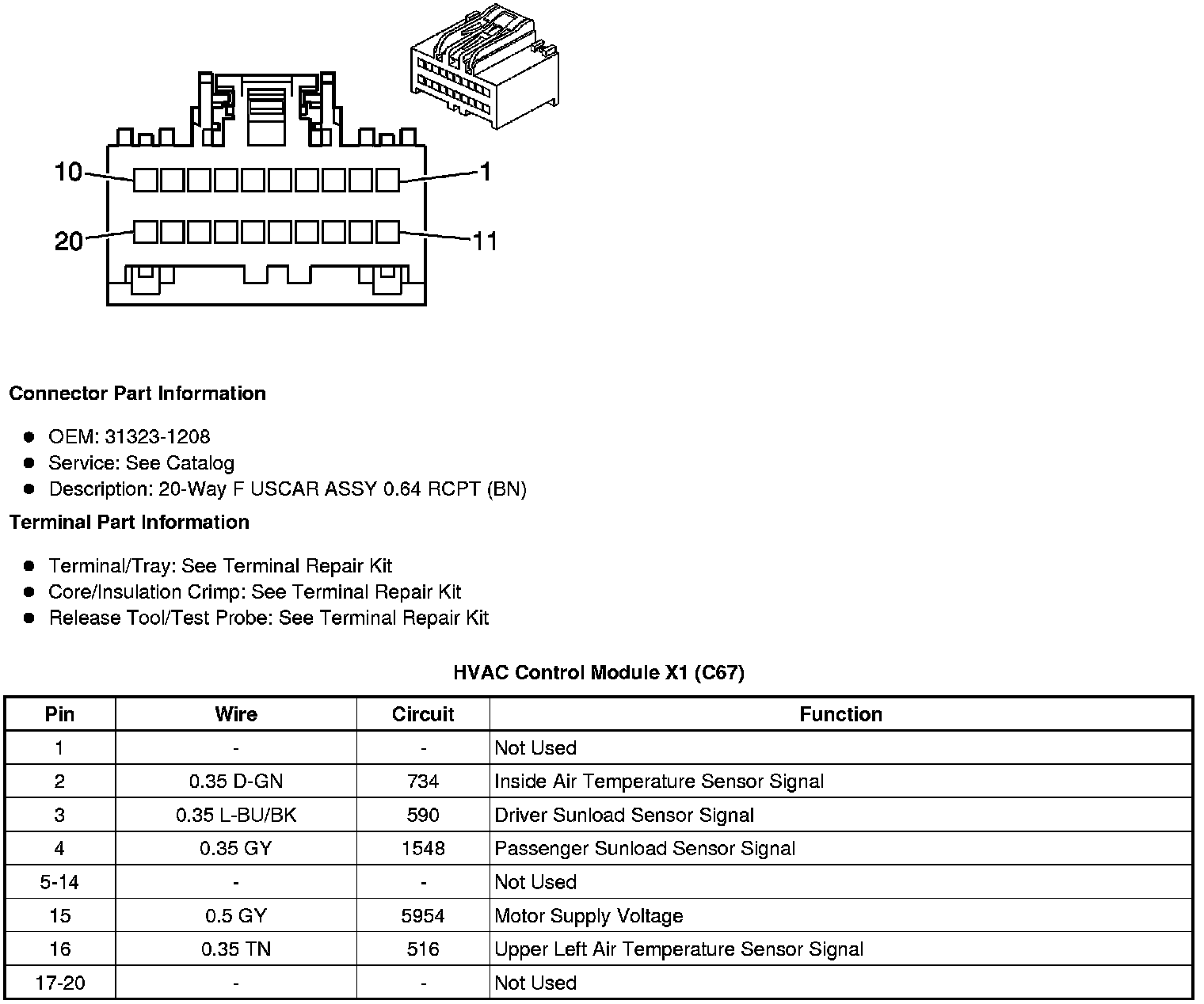

HVAC Control Module X1 (C67)

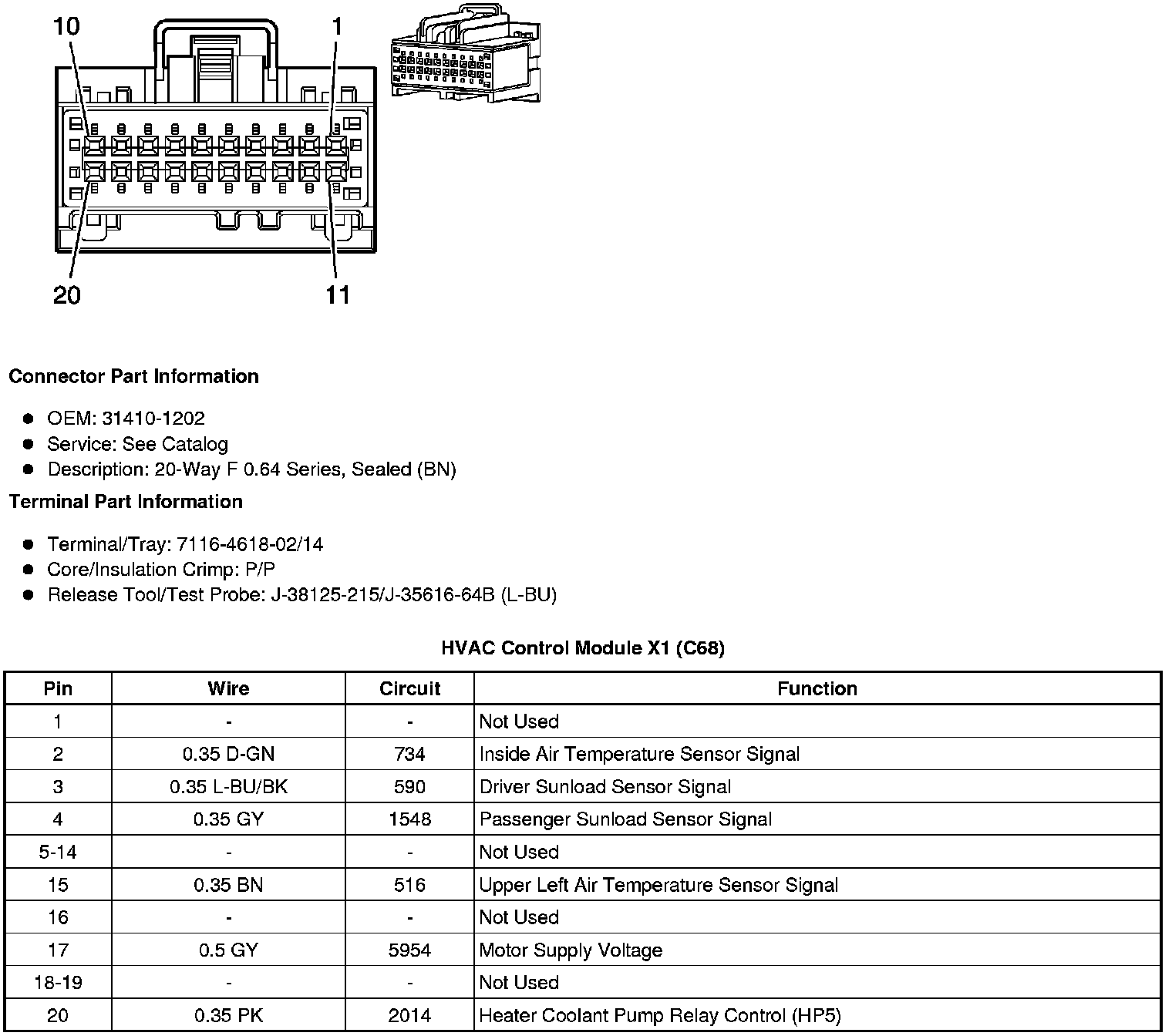

HVAC Control Module X1 (C68)

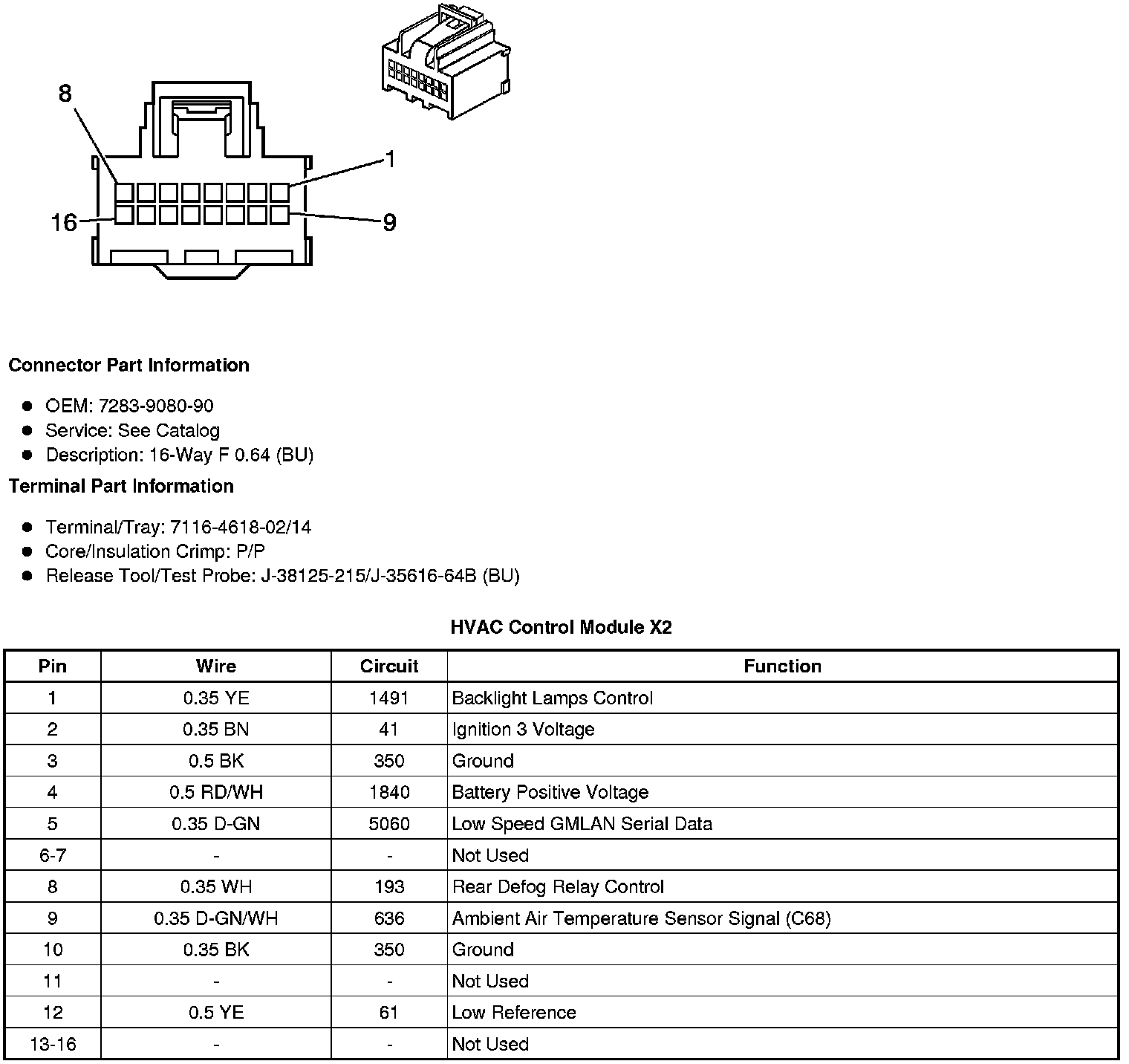

HVAC Control Module X2

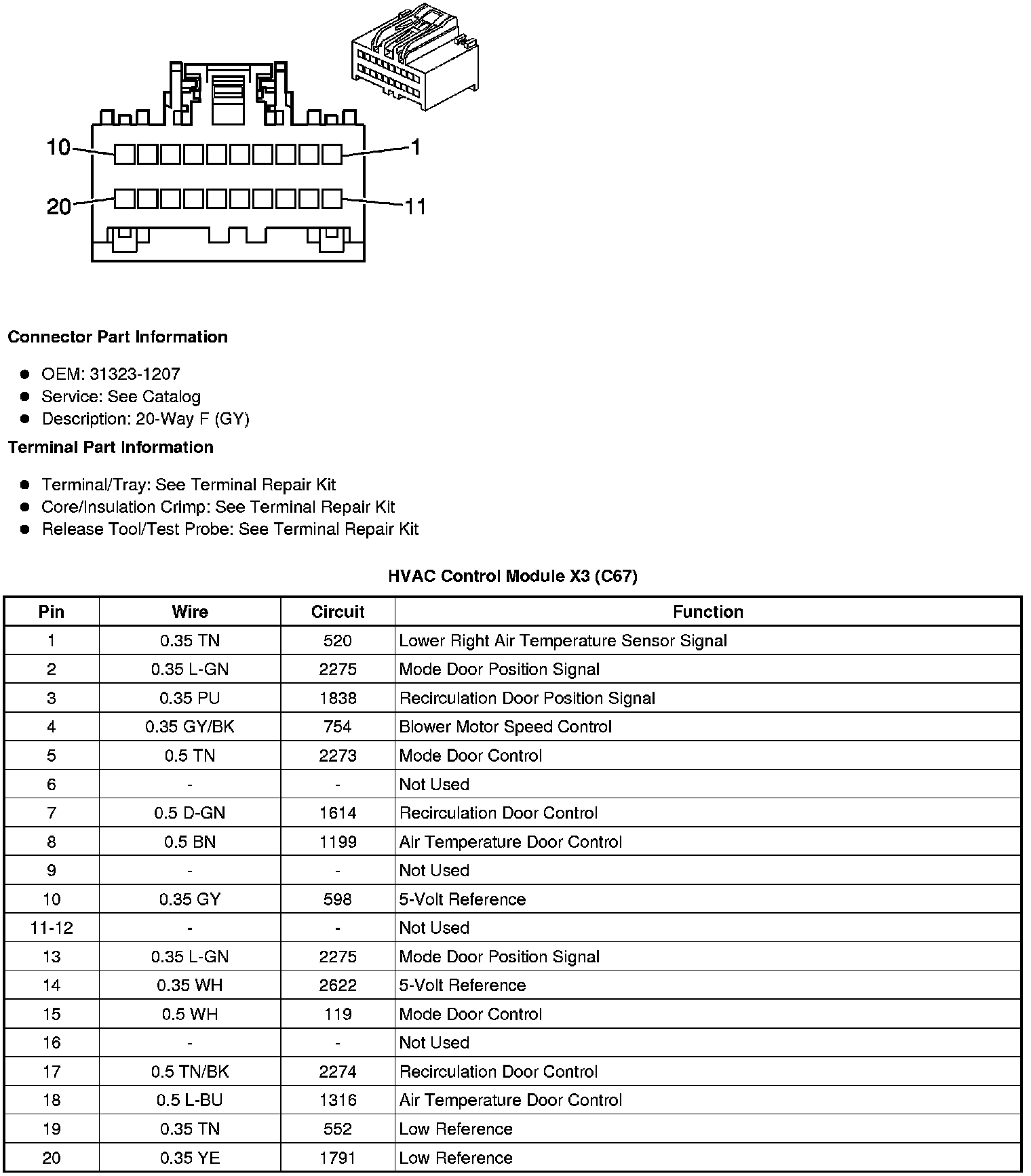

HVAC Control Module X3 (C67)

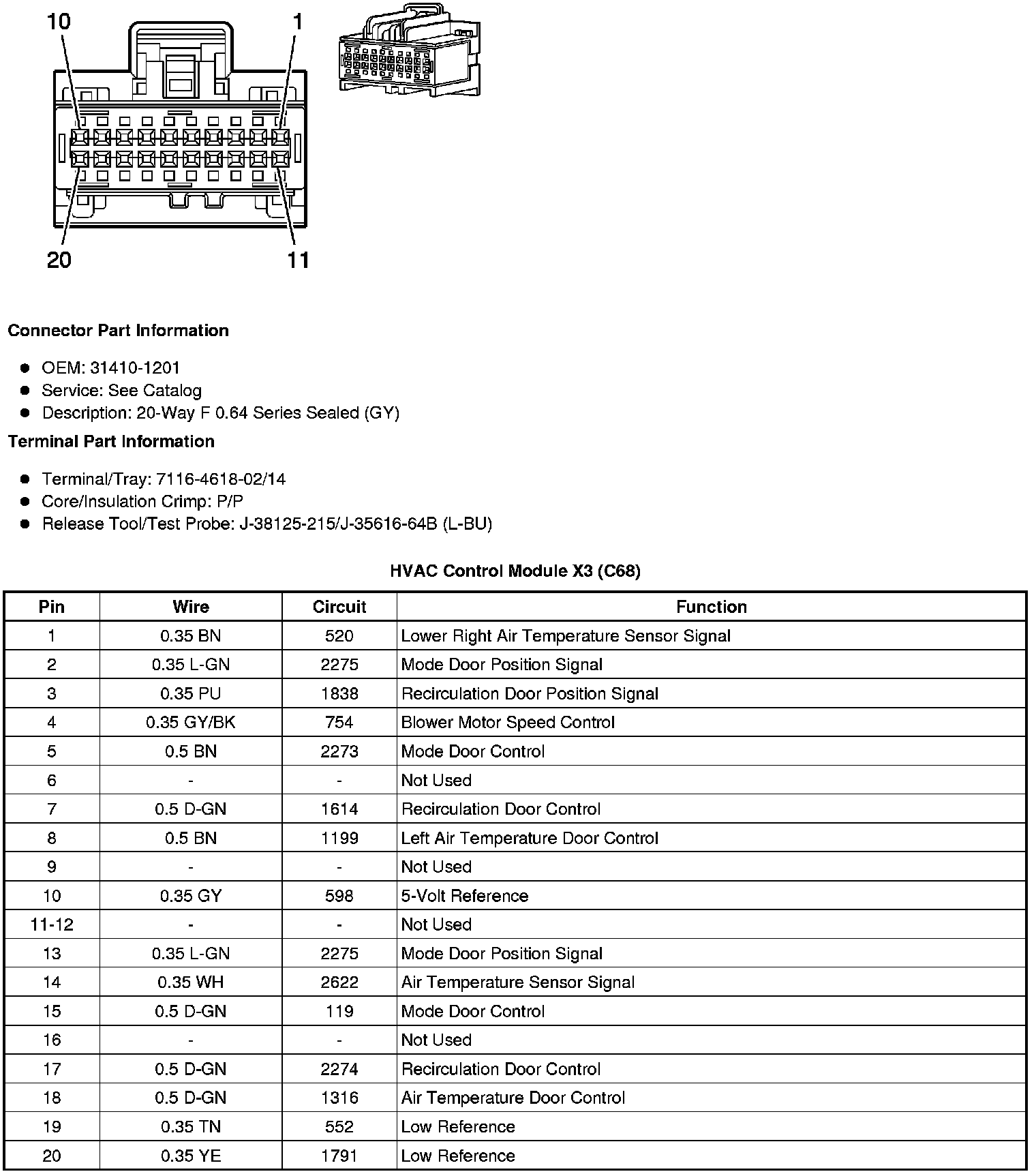

HVAC Control Module X3 (C68)
