Camshaft Position Sensor: Diagrams

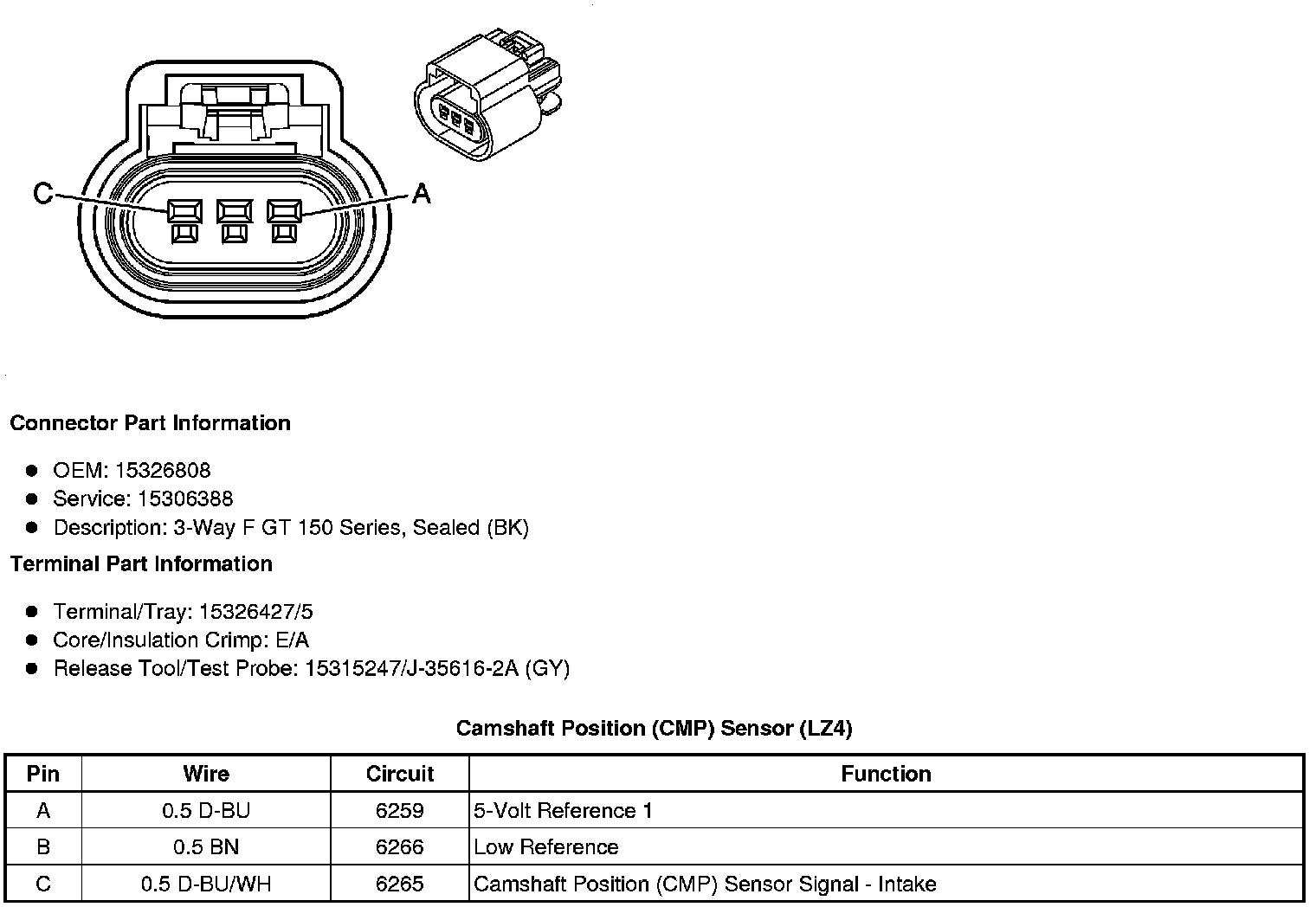

Component Connector End Views

Camshaft Position (CMP) Sensor (LZ4)
