Home >> Saturn >> 2009 >> Sky L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Occupant Sensor

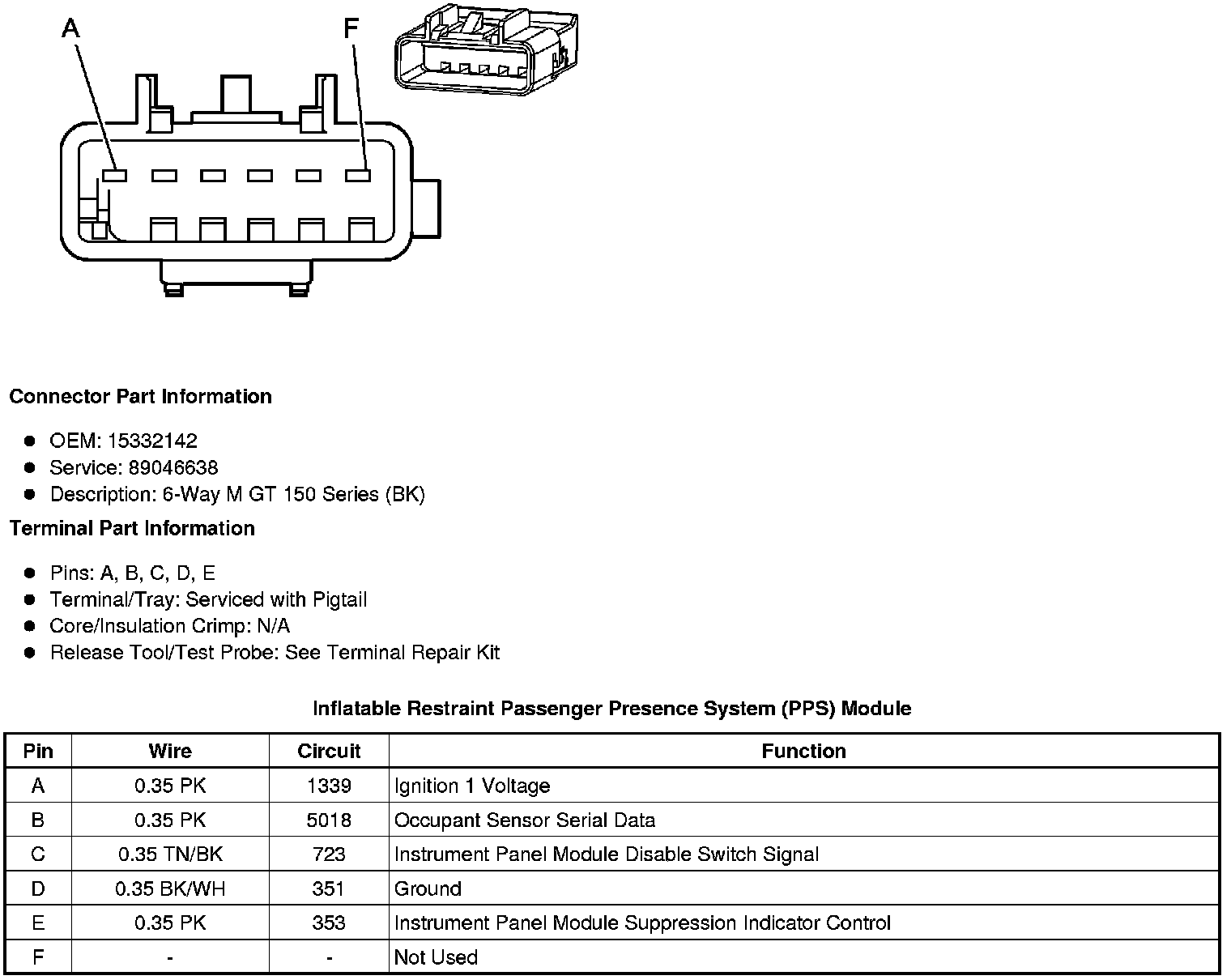

Seat Occupant Sensor




Component Connector End Views

Inflatable Restraint Passenger Presence System (PPS) Module
