Refrigerant Pressure Sensor / Switch, HVAC
Refrigerant Pressure Sensor / Switch, HVAC

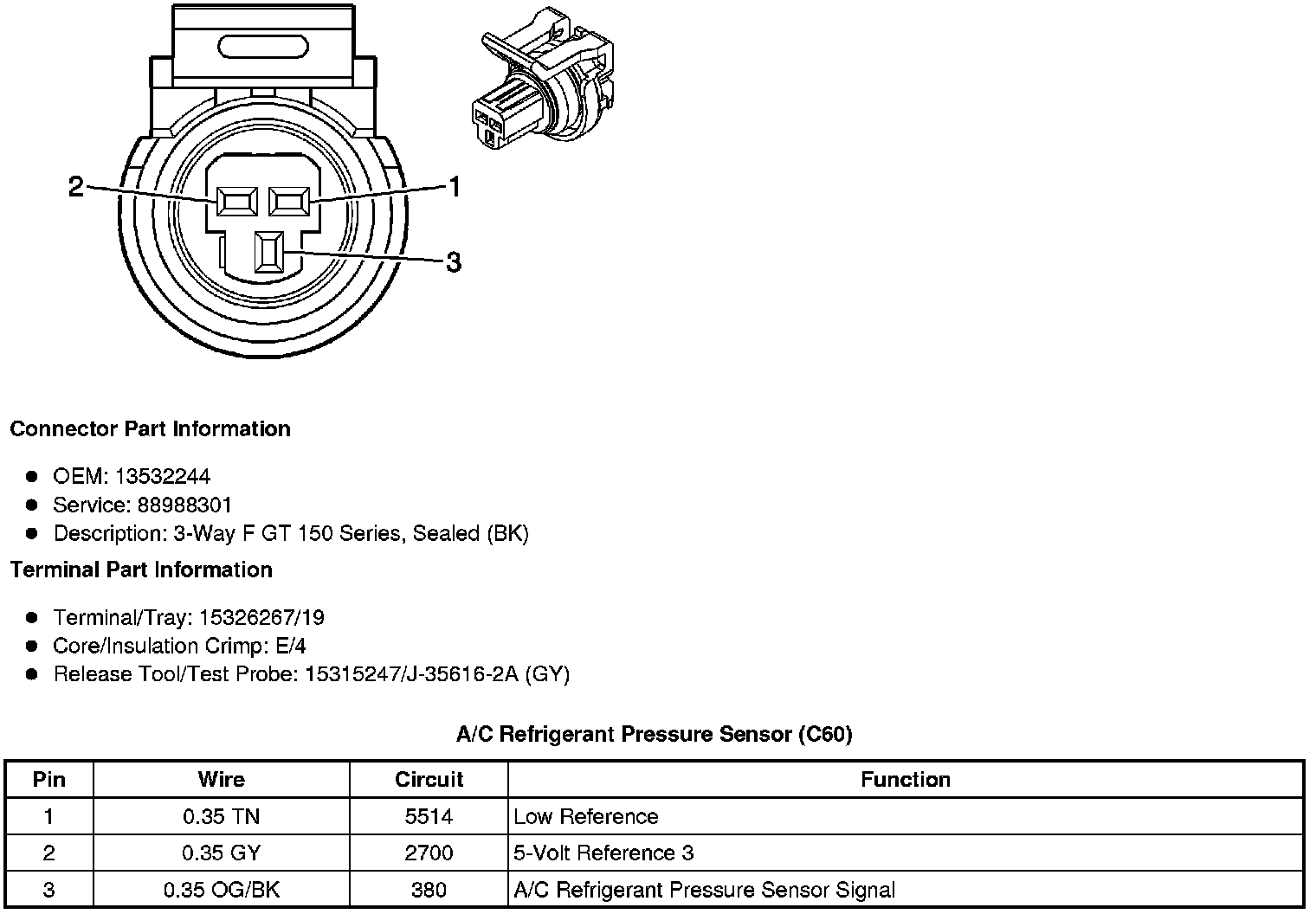

Component Connector End Views
A/C Refrigerant Pressure Sensor (C60)
