Power Window Switch
>>

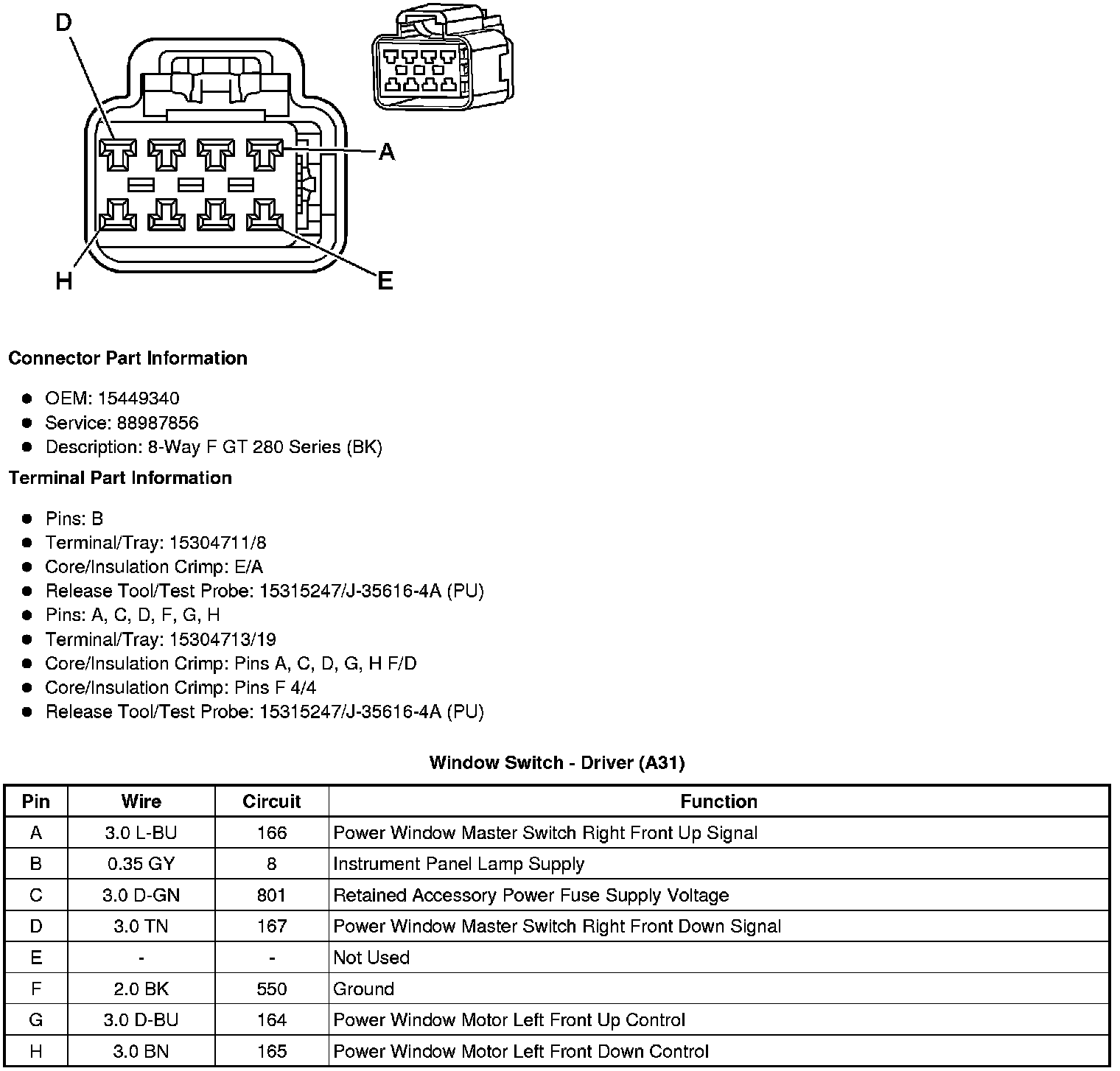

Window Switch - Driver (A31)
Window Switch - Driver (A31)
Component Connector End Views
Window Switch - Driver (A31)
