Home >> Saturn >> 2009 >> Sky L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Injector >> Fuel Injector 1

Fuel Injector 1

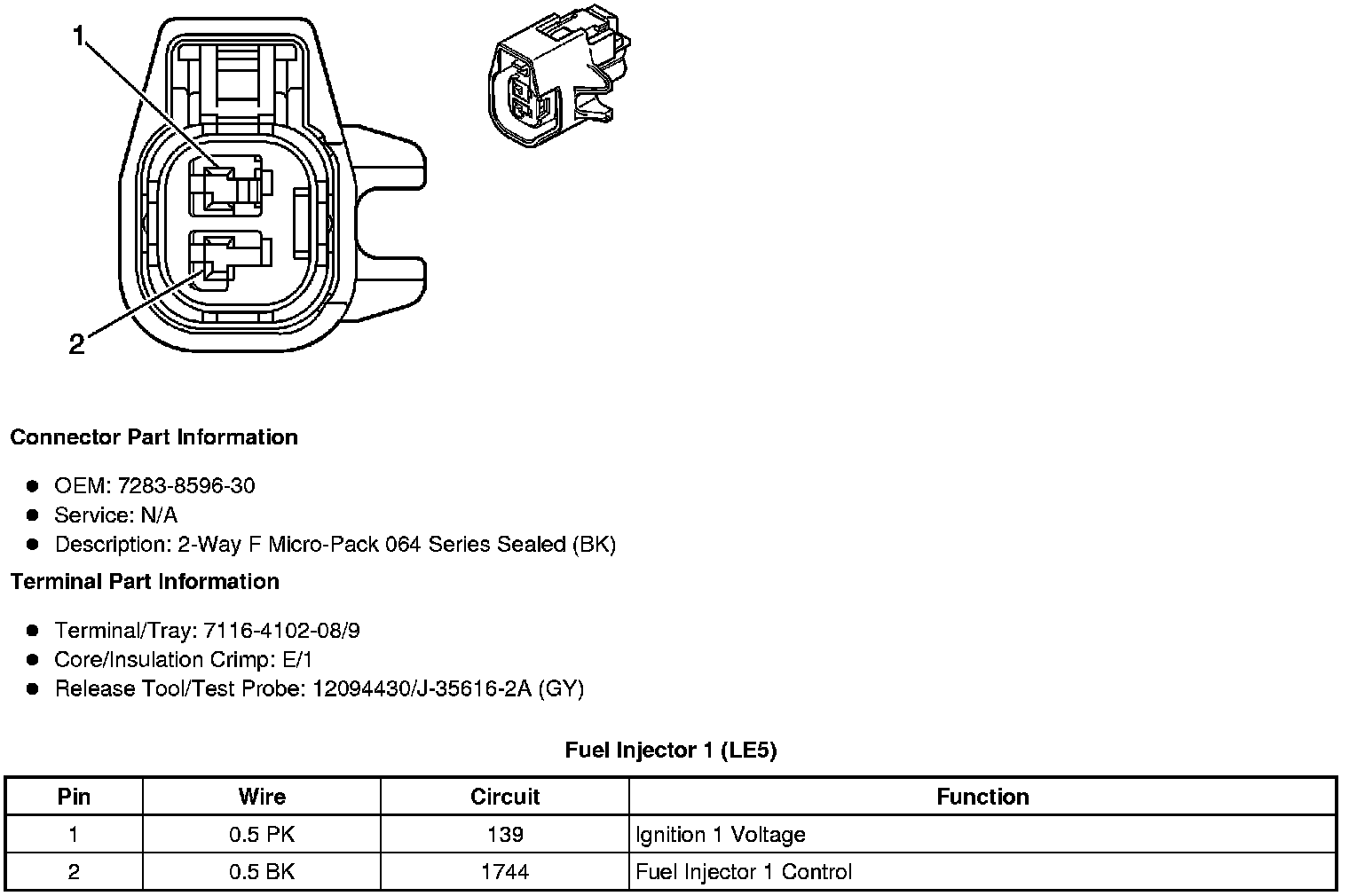

Component Connector End Views

Fuel Injector 1 (LE5)
