Knock Sensor: Diagrams




Component Connector End Views

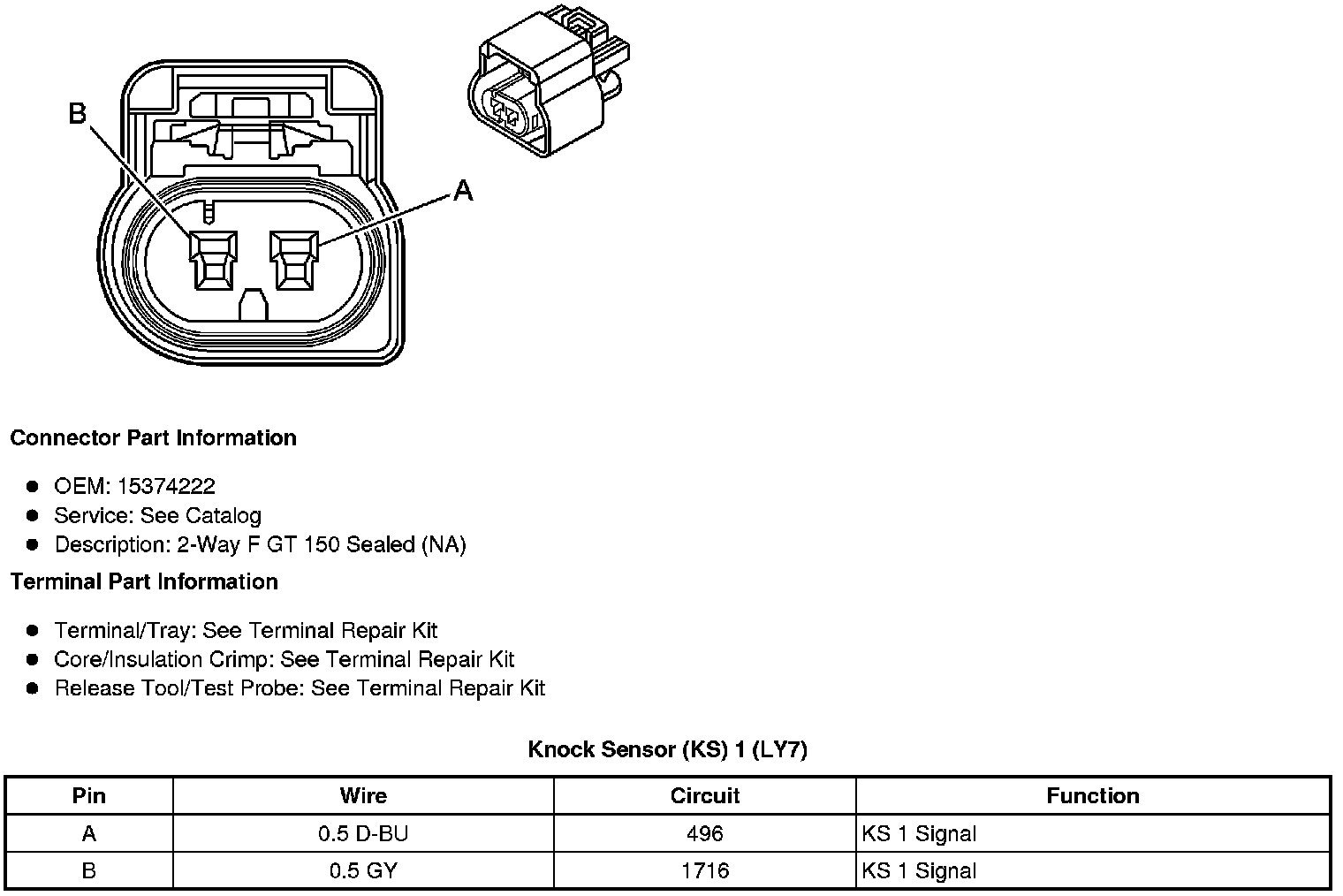

Knock Sensor (KS) 1 (LY7)

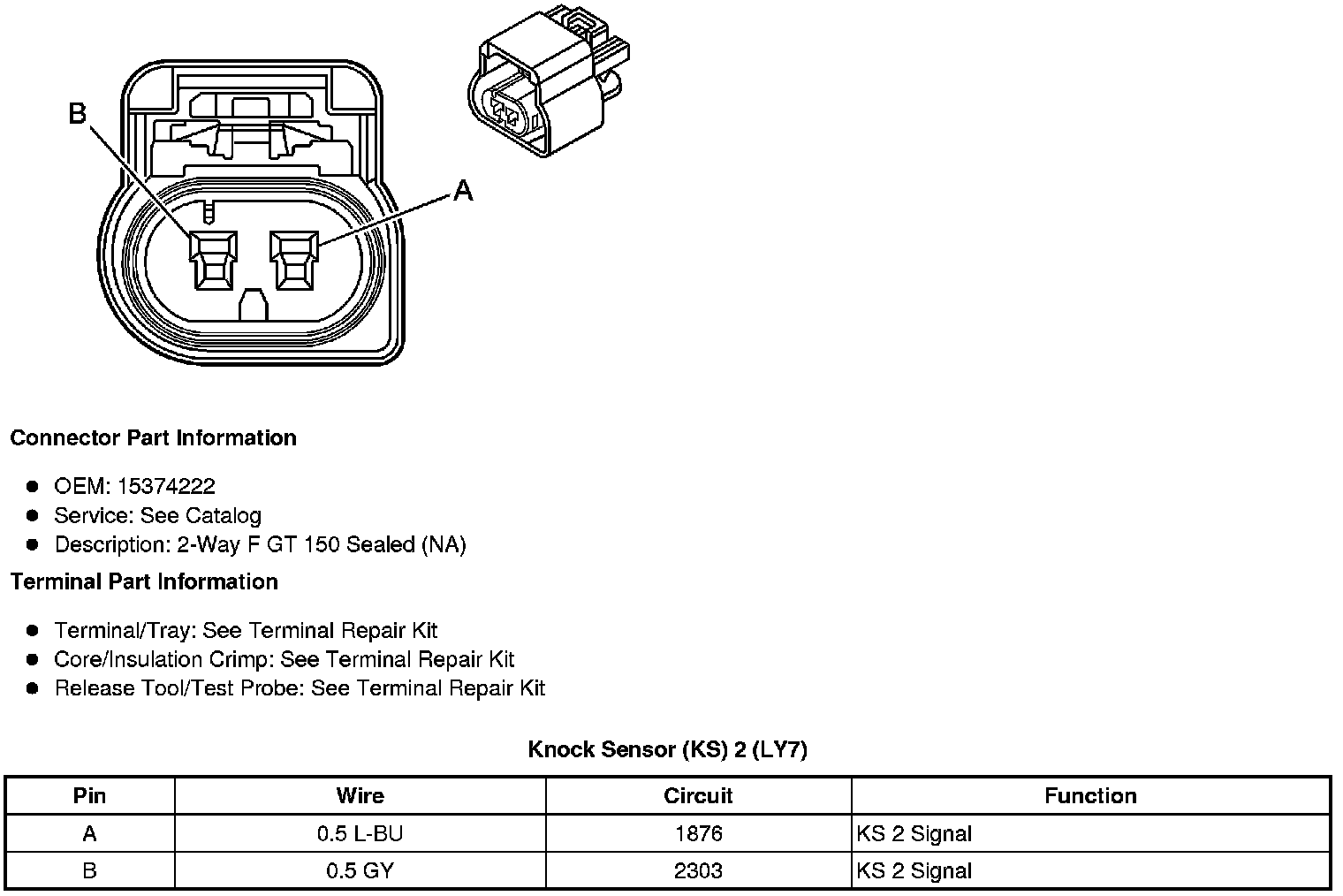

Knock Sensor (KS) 2 (LY7)
