Home >> Saturn >> 2009 >> Aura L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Occupant Sensor

Seat Occupant Sensor

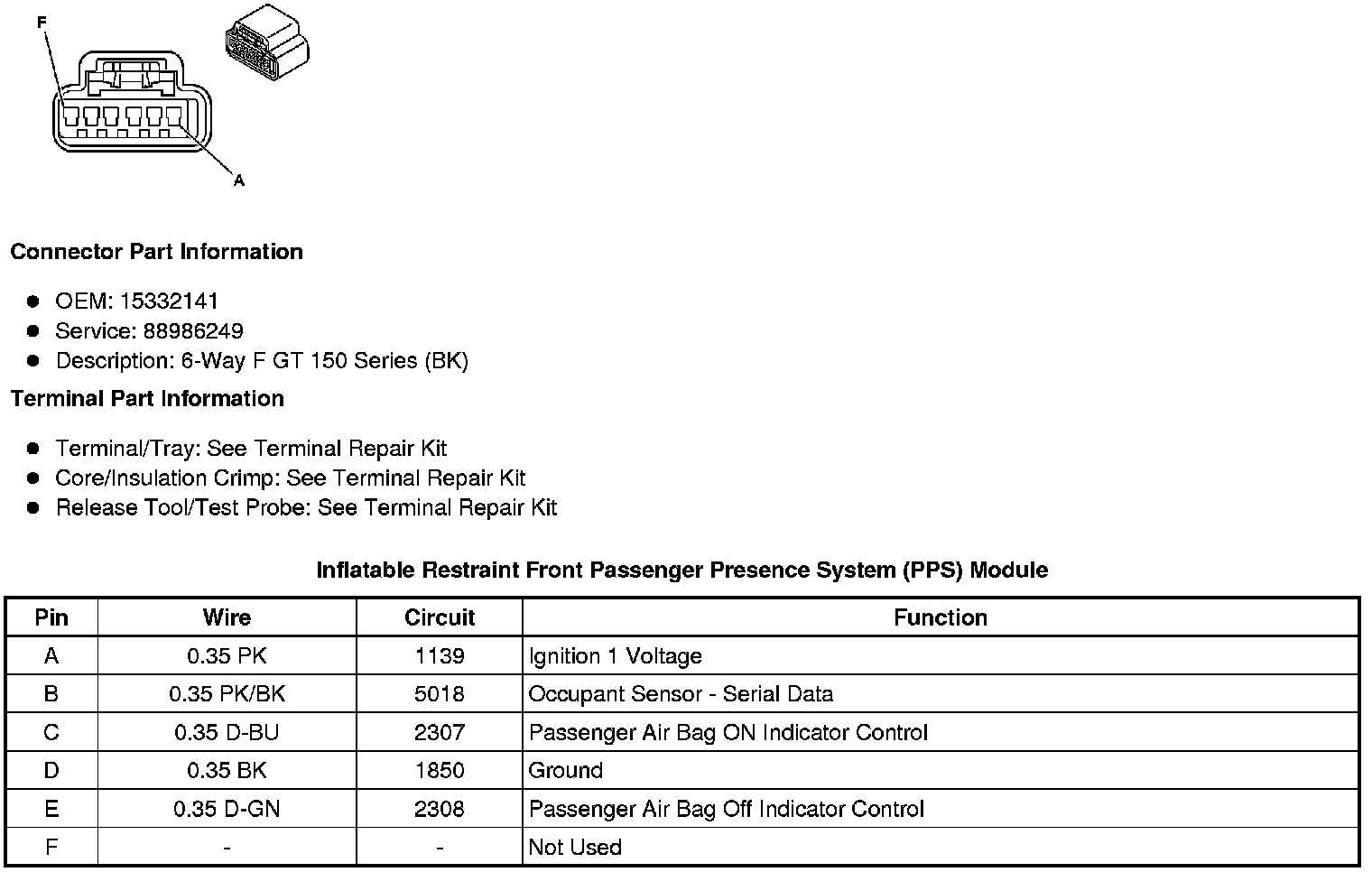

Component Connector End Views

Inflatable Restraint Front Passenger Presence System (PPS) Module
