Pedal Positioning Sensor




Component Connector End Views

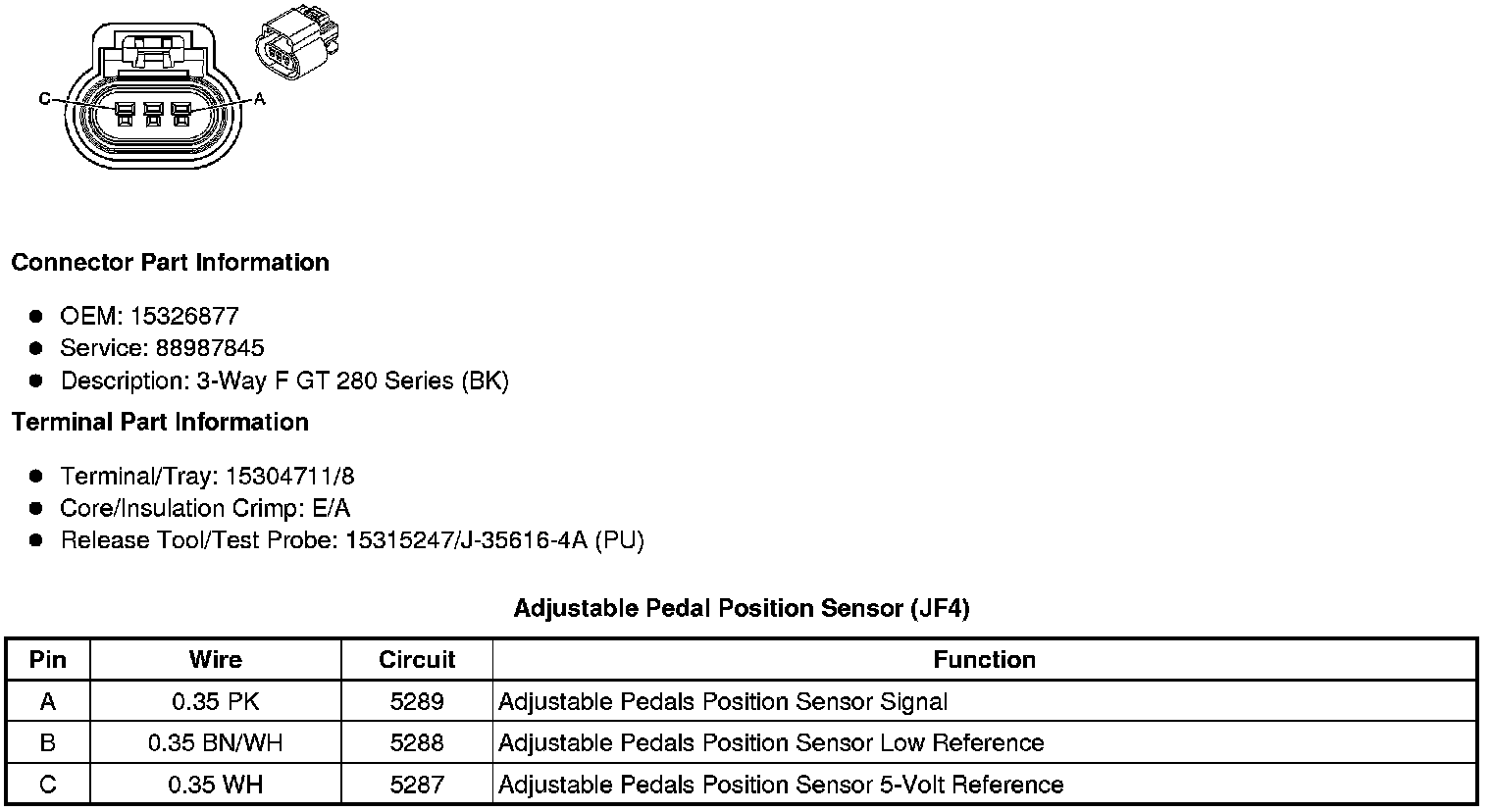

Adjustable Pedal Position Sensor (JF4)

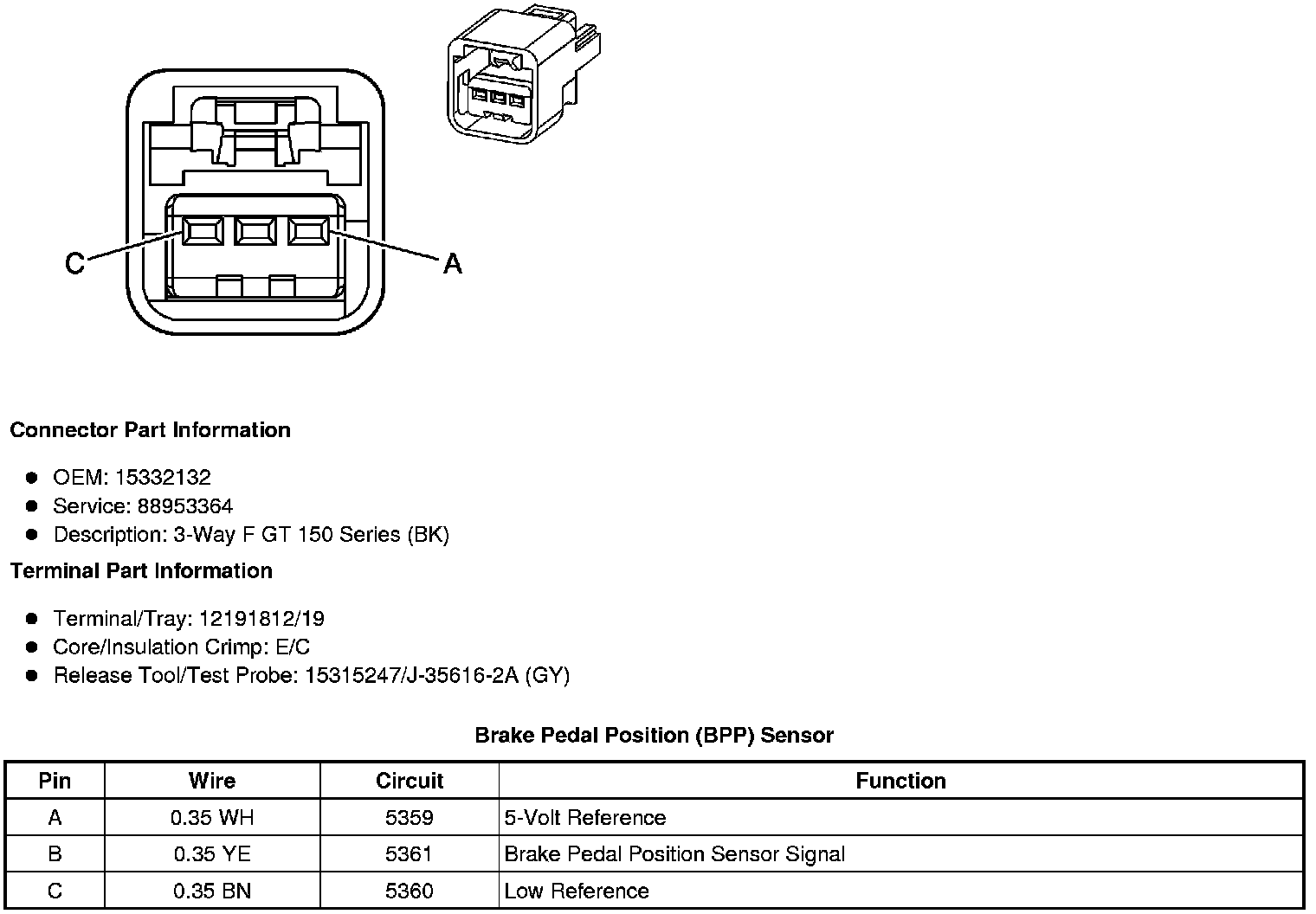

Brake Pedal Position (BPP) Sensor
