Home >> Saturn >> 2009 >> Aura L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Dimmer Switch

Dimmer Switch

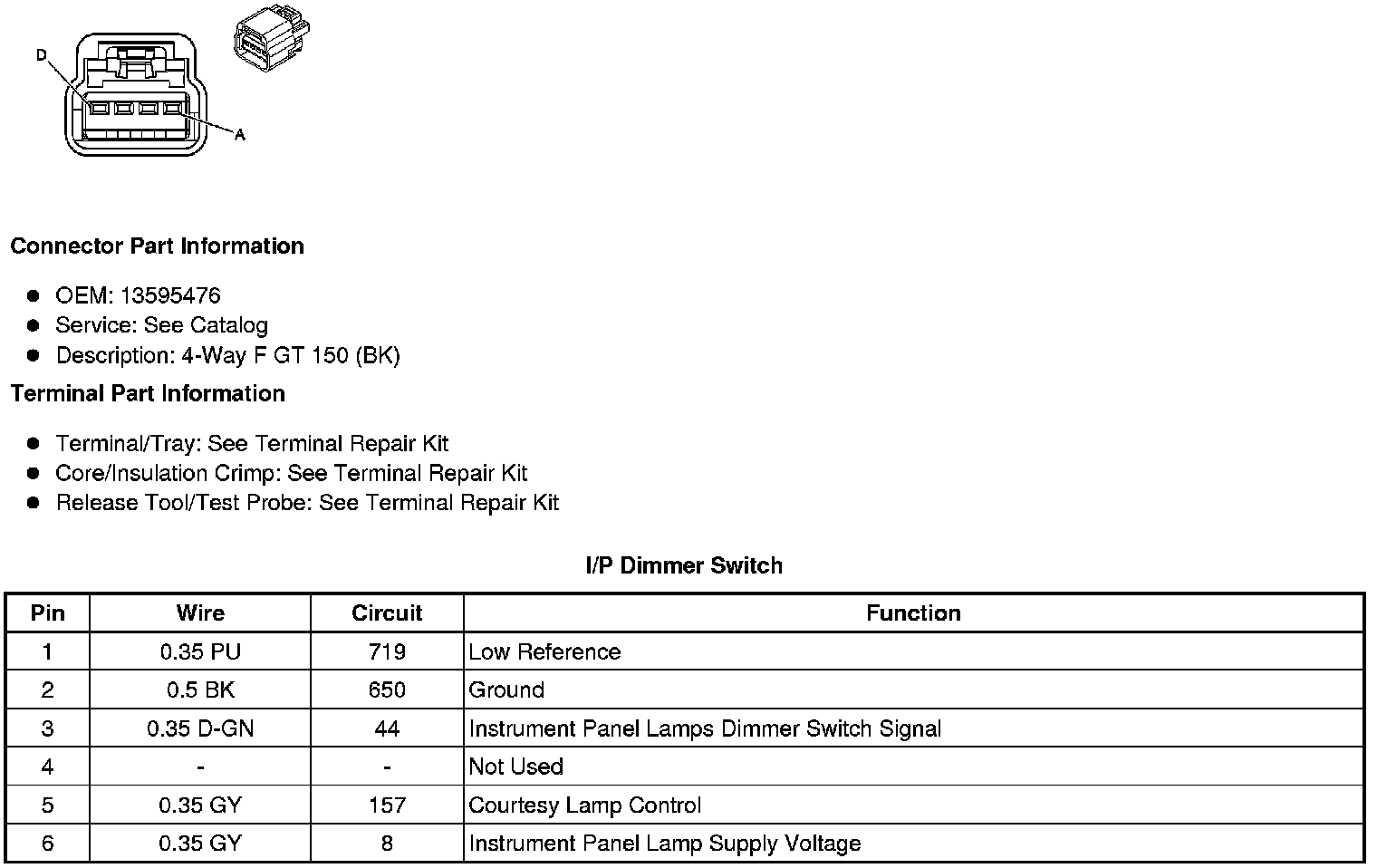

Component Connector End Views

I/P Dimmer Switch
