System Diagram




Component Connector End Views

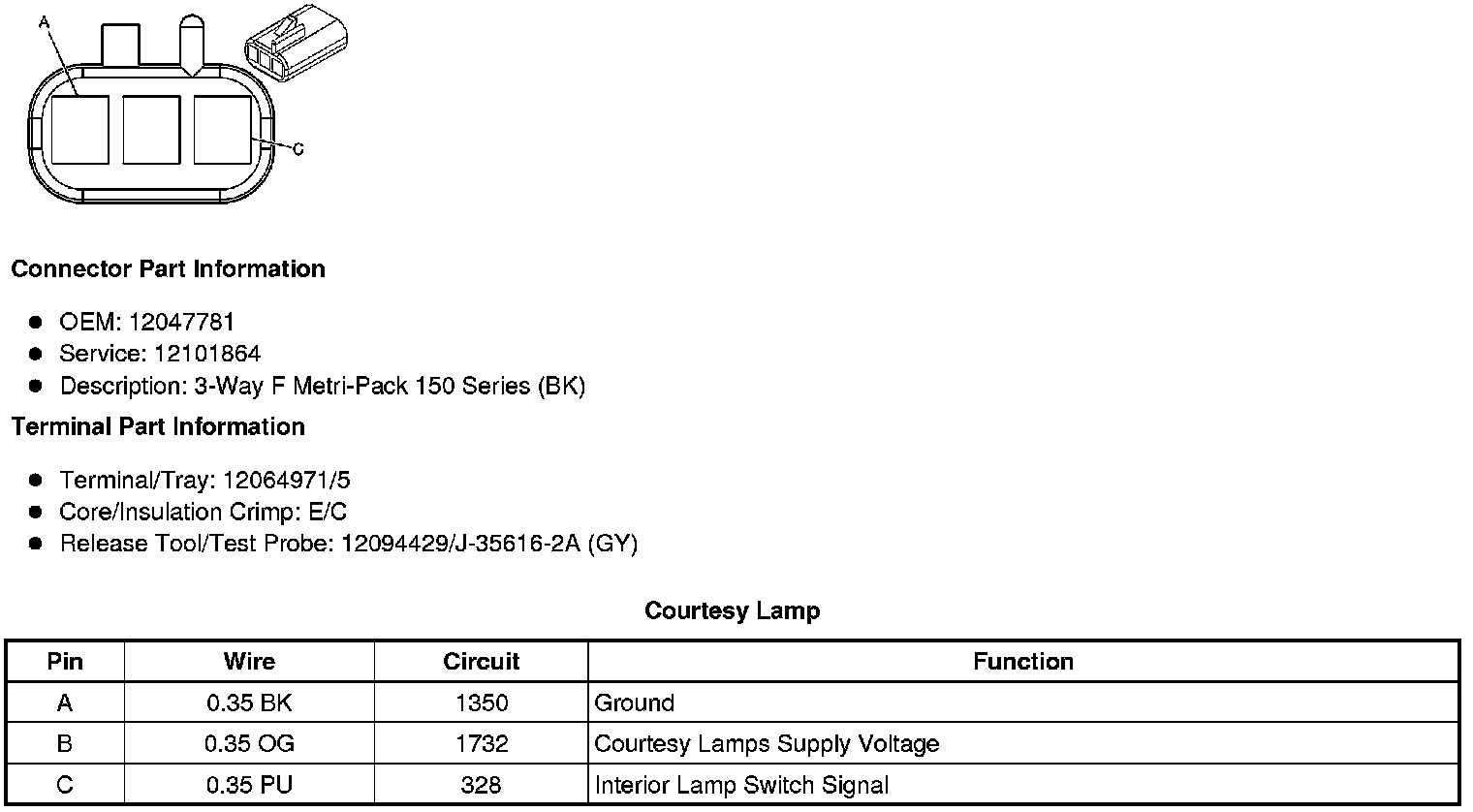

Courtesy Lamp

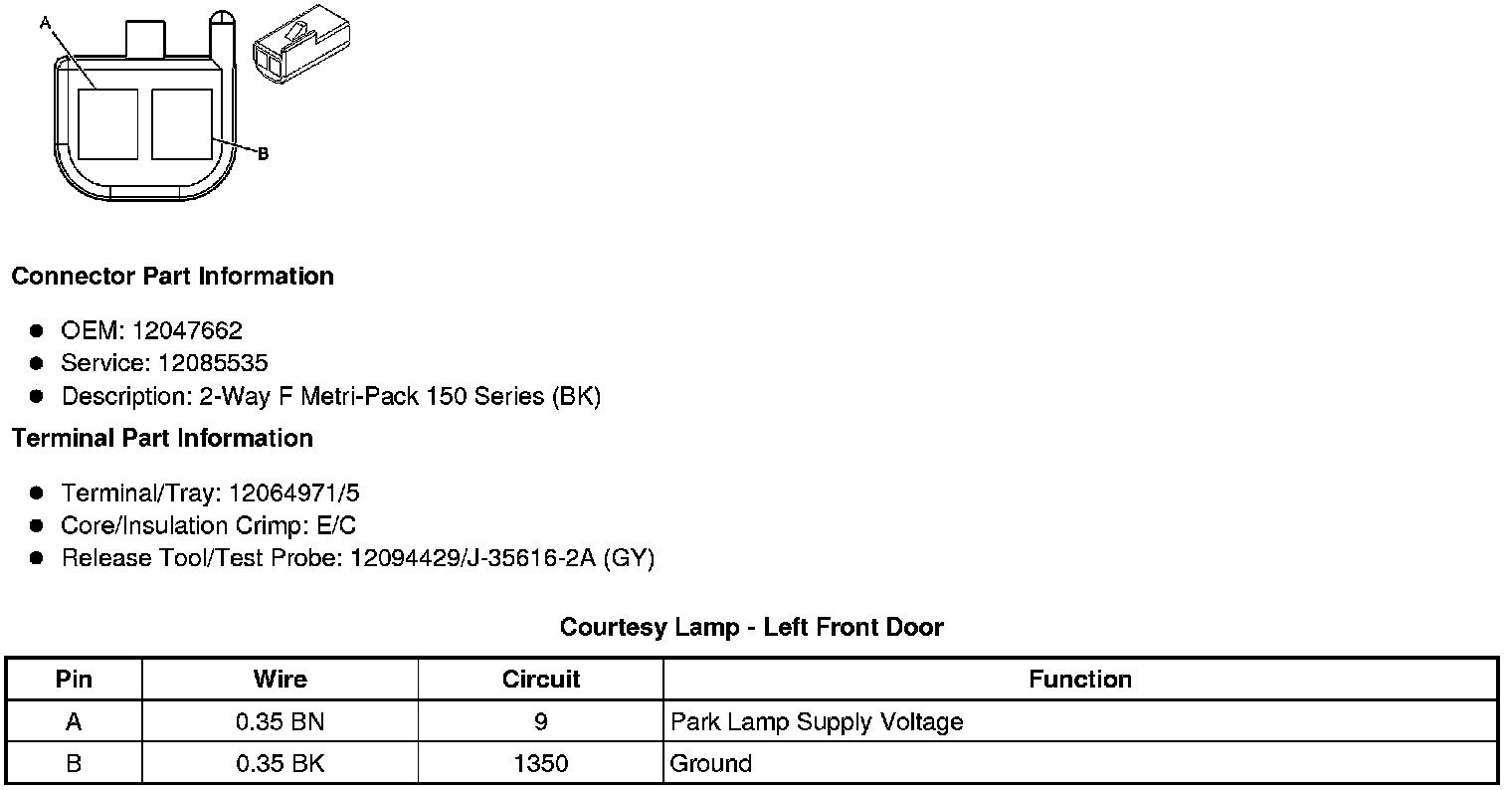

Courtesy Lamp - Left Front Door






Courtesy Lamp - Right Front Door

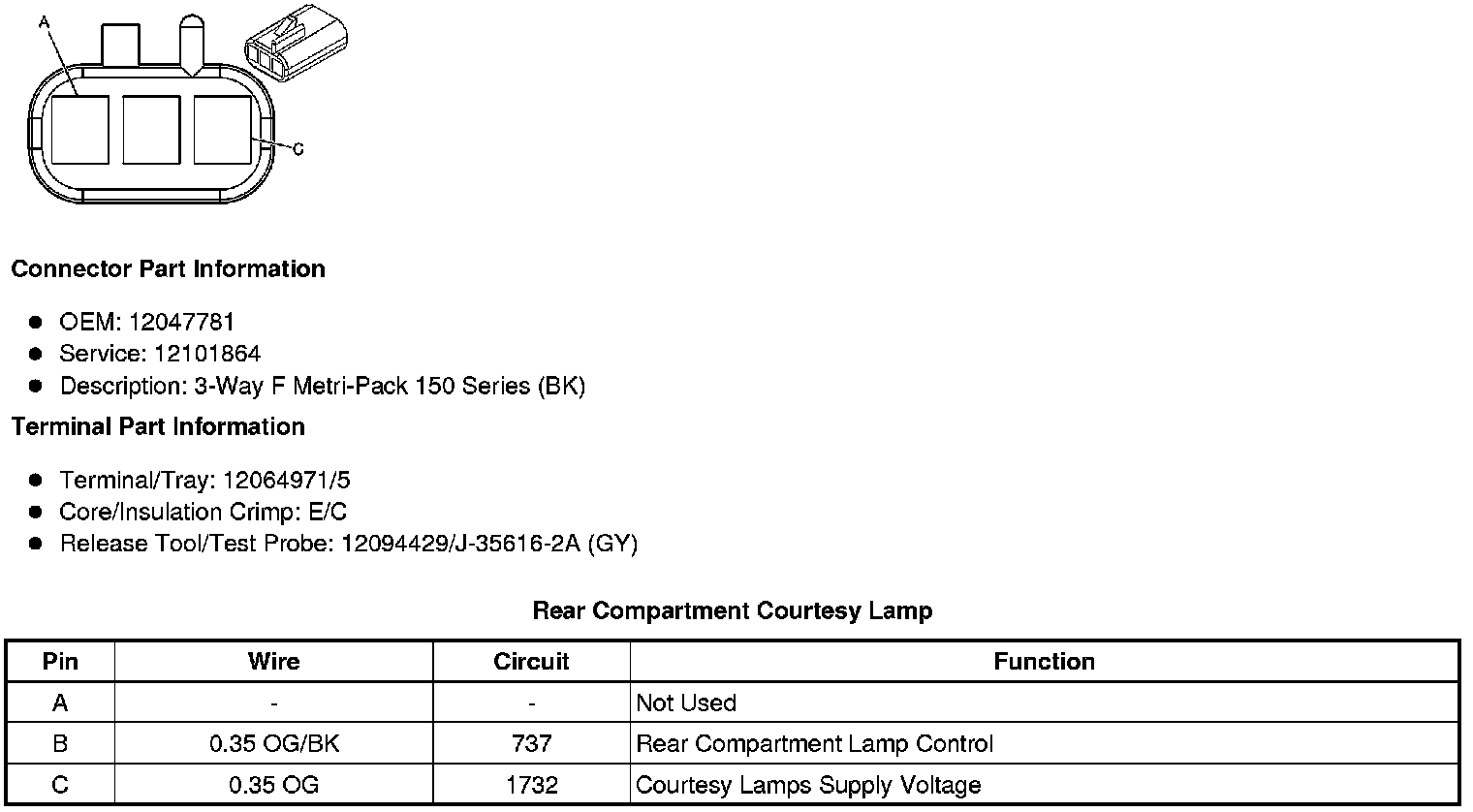

Rear Compartment Courtesy Lamp
