Central Control Module: Diagrams




Component Connector End Views

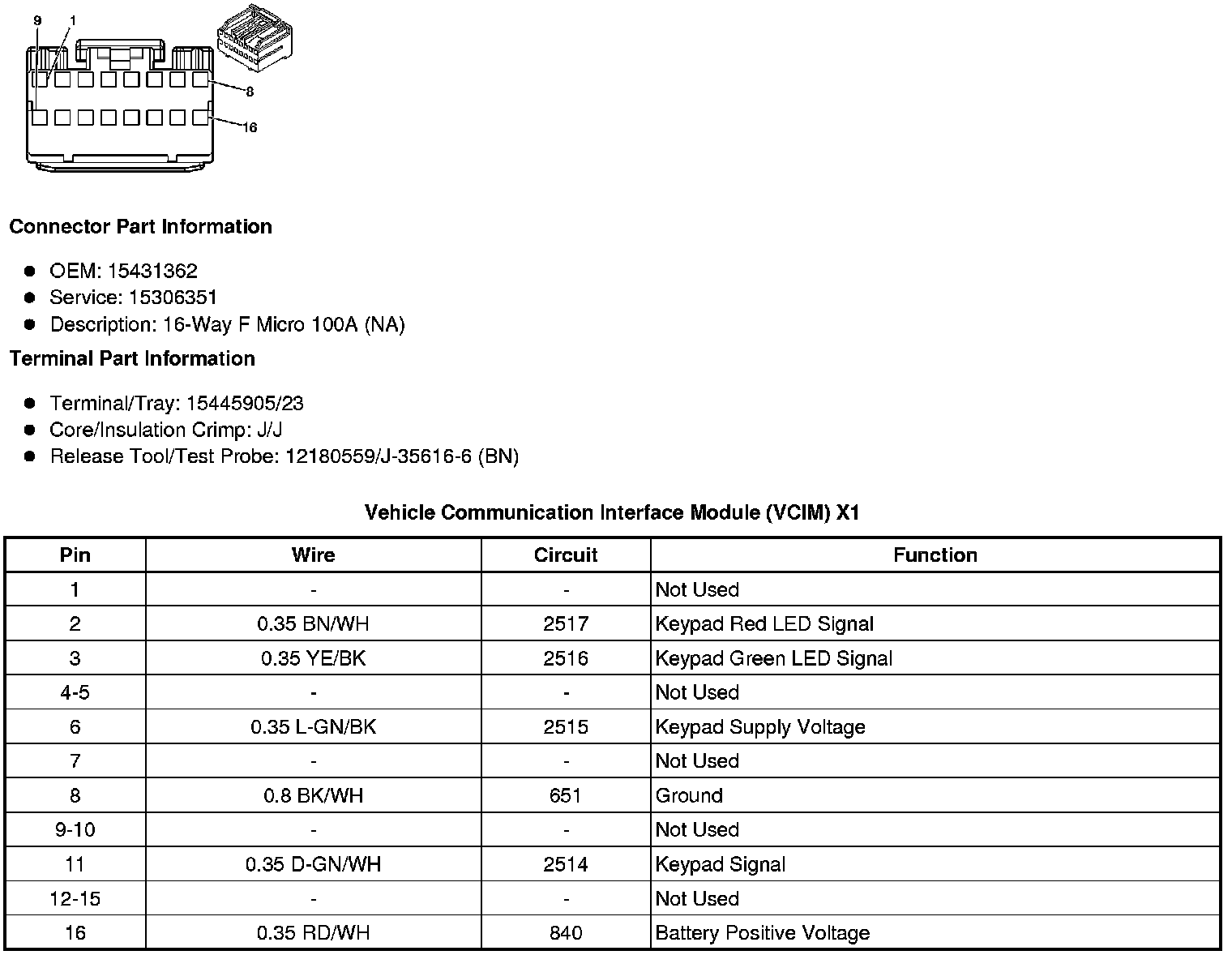

Vehicle Communication Interface Module (VCIM) X1

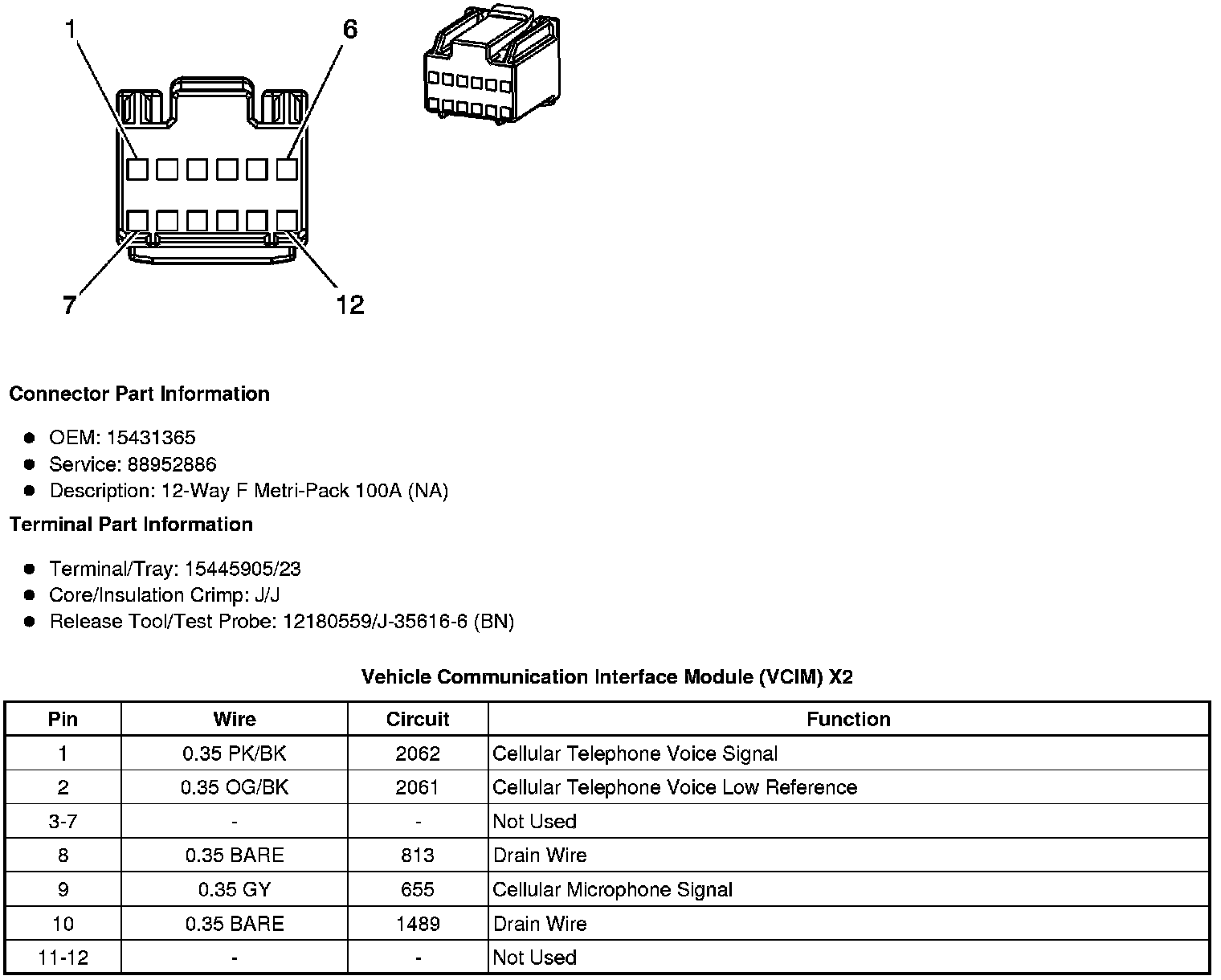

Vehicle Communication Interface Module (VCIM) X2

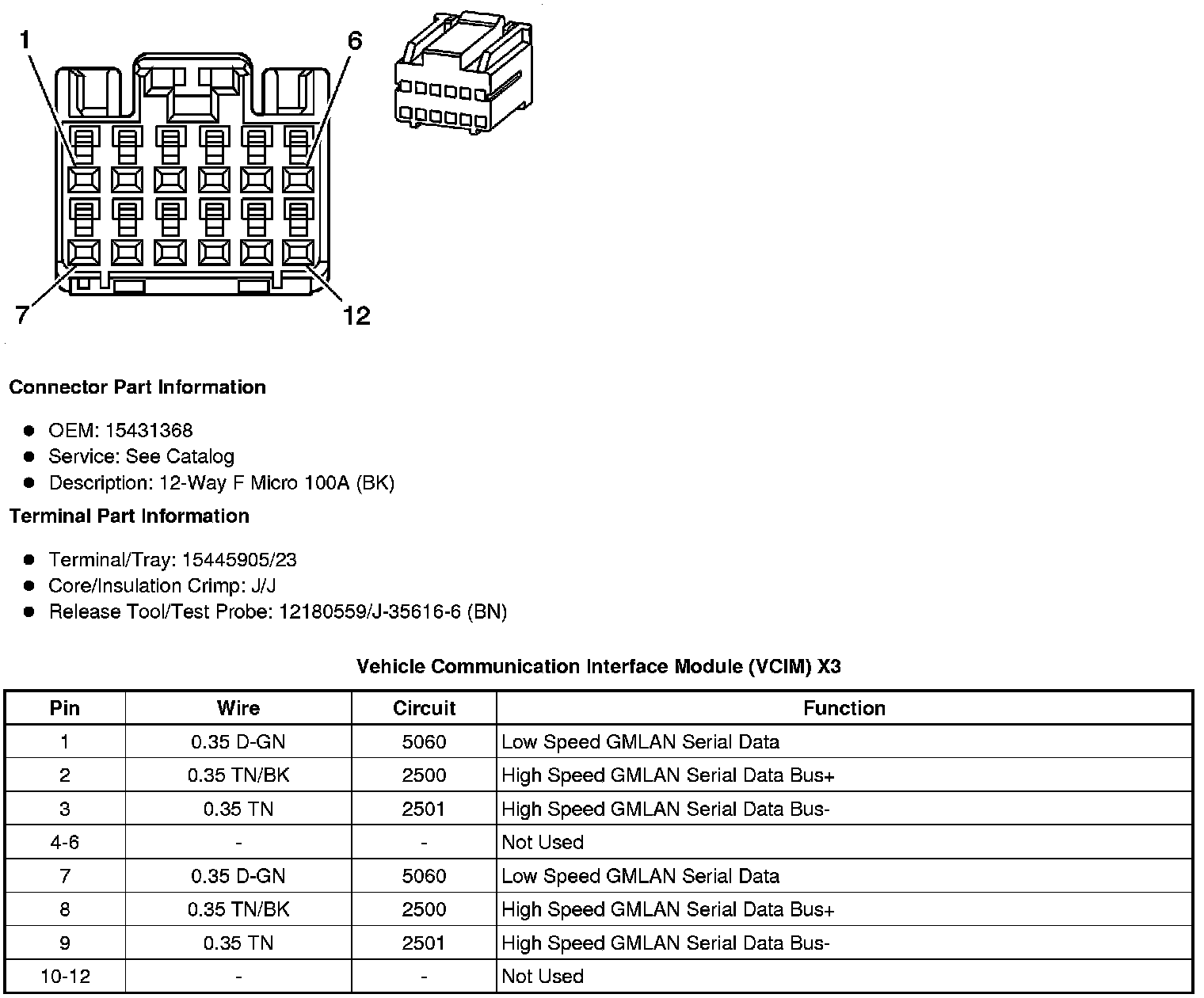

Vehicle Communication Interface Module (VCIM) X3
