Home >> Saturn >> 2009 >> Aura L4-2.4L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brake Fluid Level Sensor/Switch

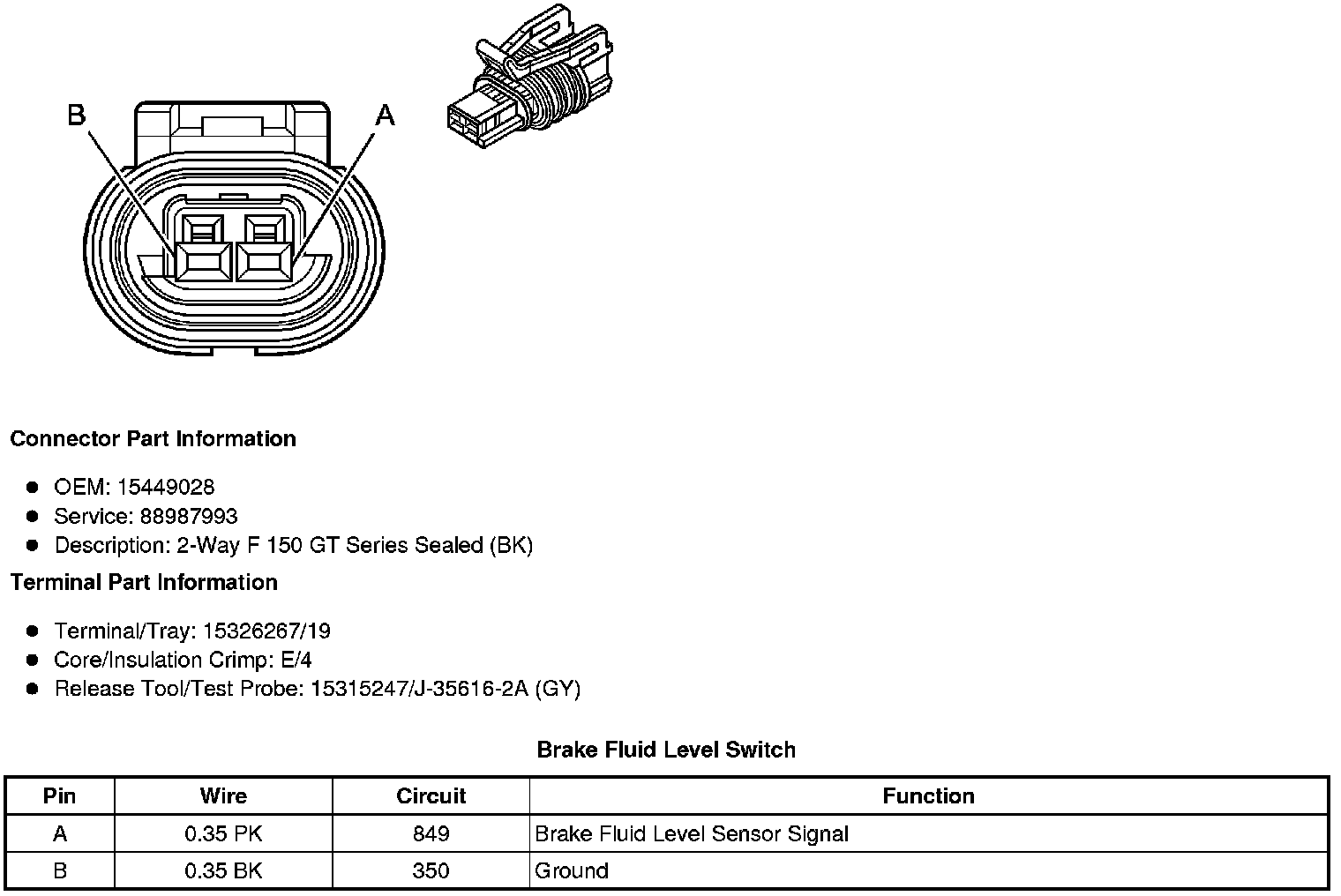

Brake Fluid Level Sensor/Switch




Component Connector End Views

Brake Fluid Level Switch
