Windshield Outside Moisture Sensor Replacement

Windshield Outside Moisture Sensor Replacement

Removal Procedure

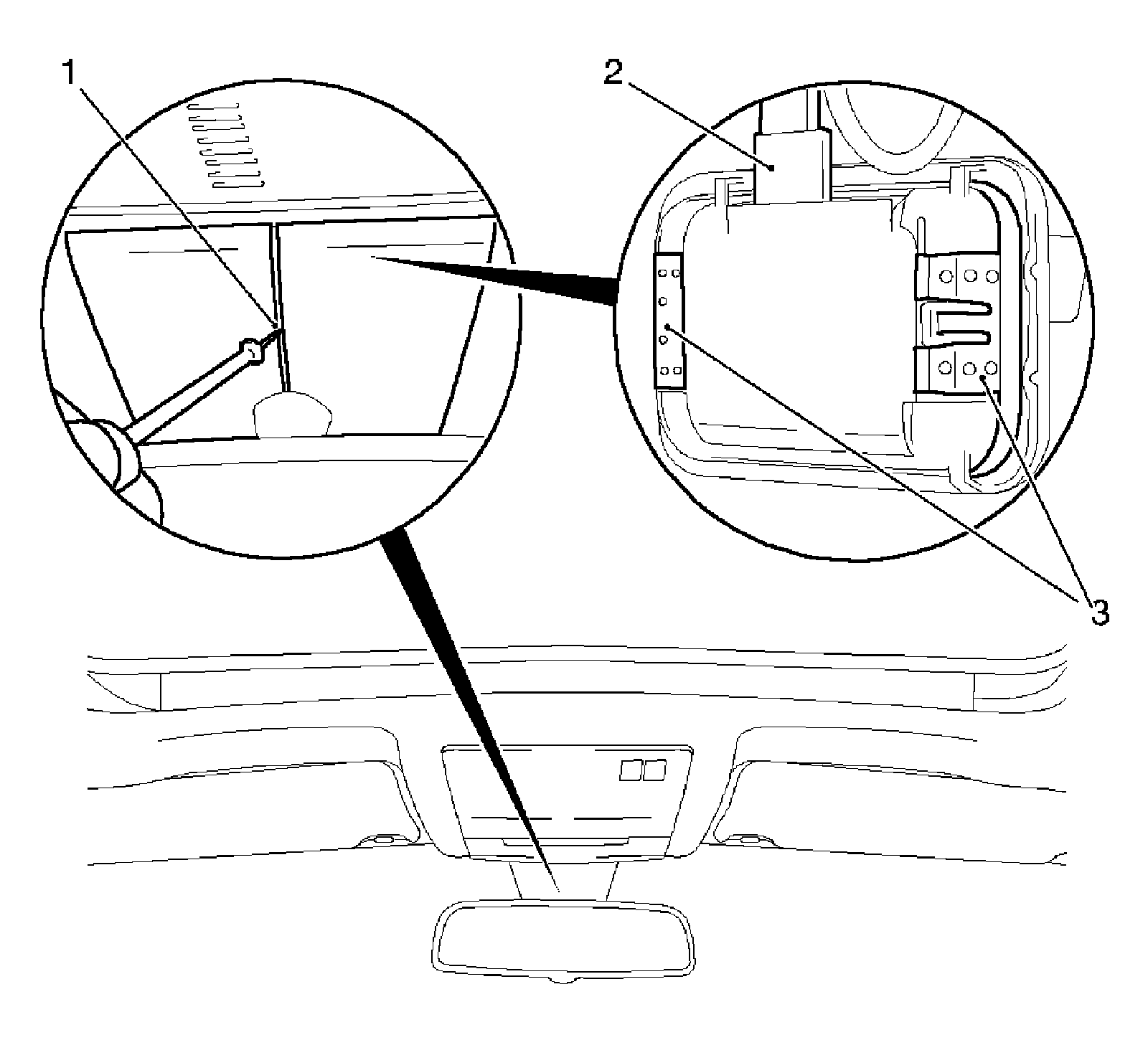

1. Release the windshield outside moisture sensor cover (1).
2. Remove the windshield outside moisture sensor.

* Disconnect the wiring harness plug (2).
* Release the 2 clamps (3).

Installation Procedure

1. Install the windshield outside moisture sensor.

* Connect the wiring harness plug.
* Close the 2 clamps.

2. Install the windshield outside moisture sensor cover.
