Wheel Speed Sensor




Component Connector End Views

Wheel Speed Sensor (WSS) - Left Front

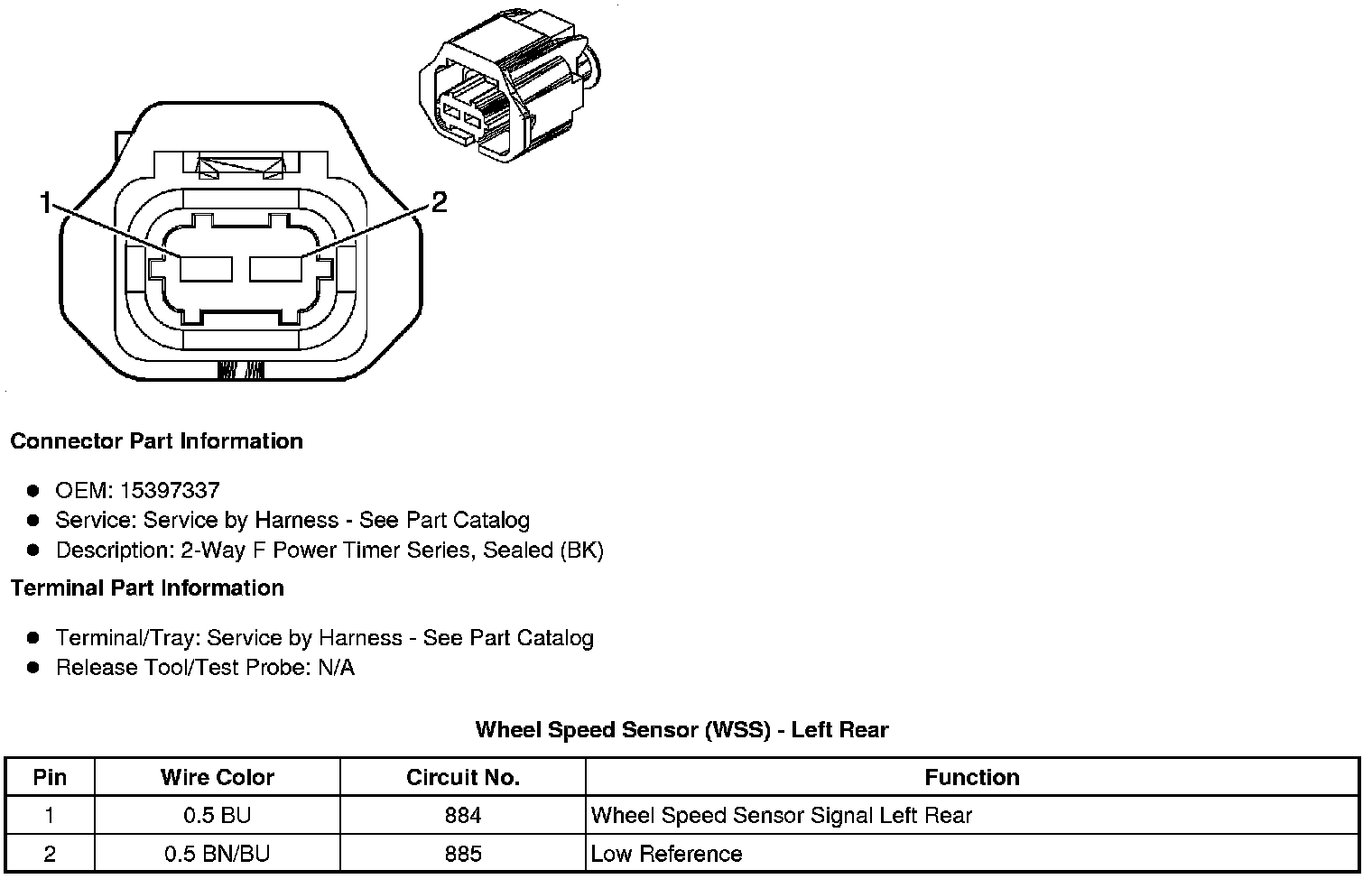

Wheel Speed Sensor (WSS) - Left Rear





Wheel Speed Sensor (WSS) - Right Front

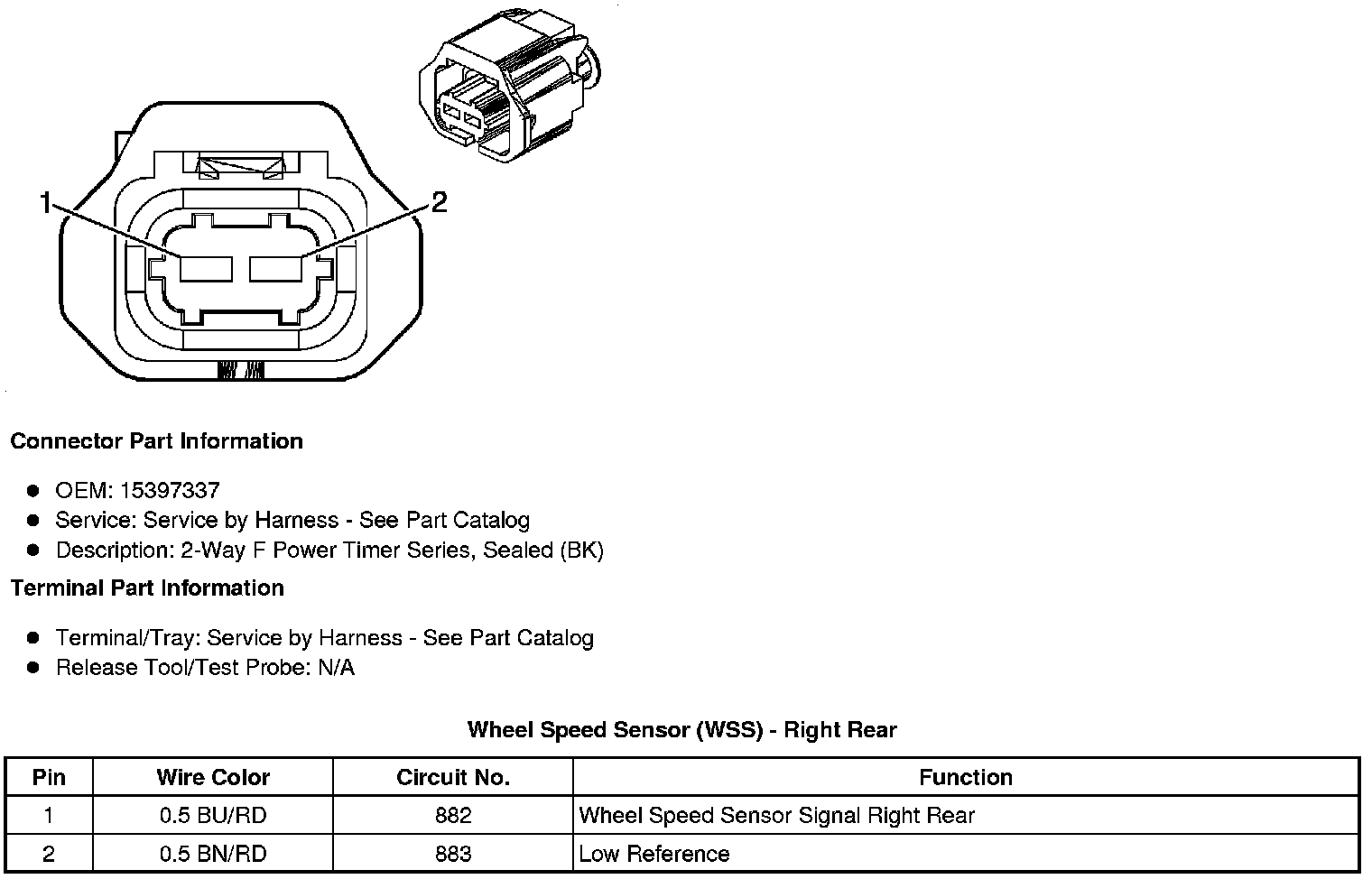

Wheel Speed Sensor (WSS) - Right Rear
