Mirrors




Component Connector End Views

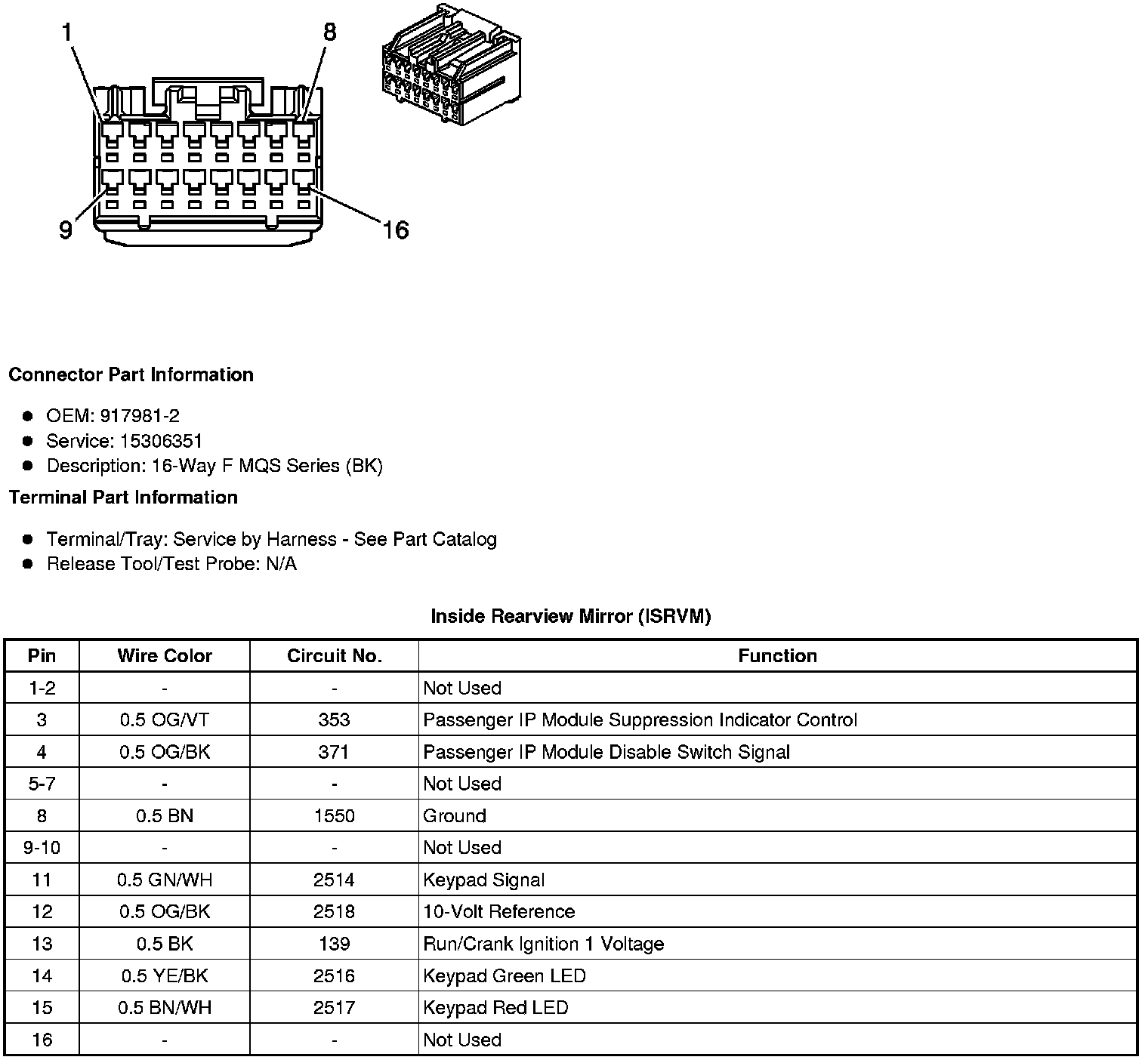

Inside Rearview Mirror (ISRVM)





Outside Rearview Mirror - Driver

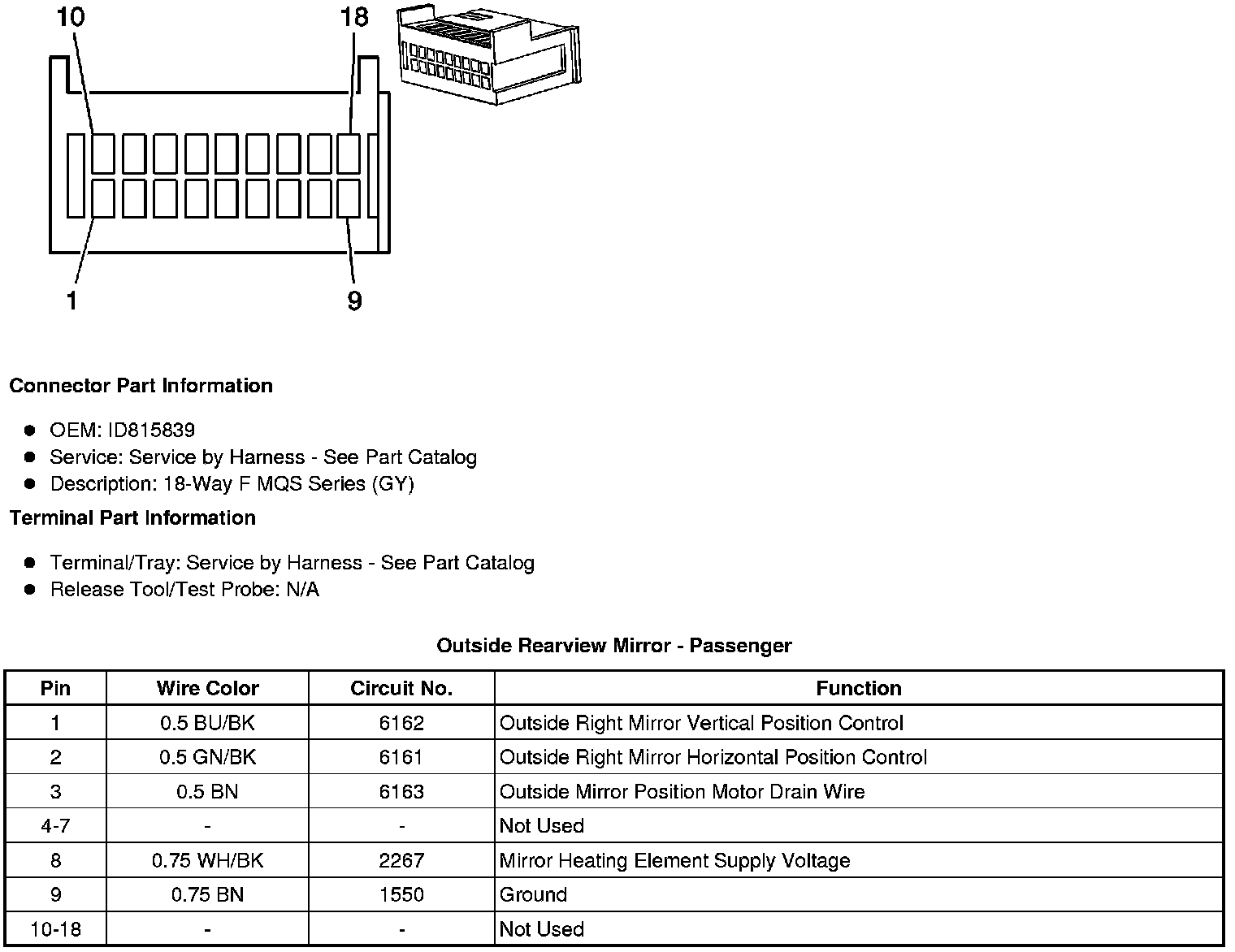

Outside Rearview Mirror - Passenger
