Home >> Saturn >> 2009 >> Astra L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Hood Sensor/Switch (For Alarm)

Hood Sensor/Switch (For Alarm)

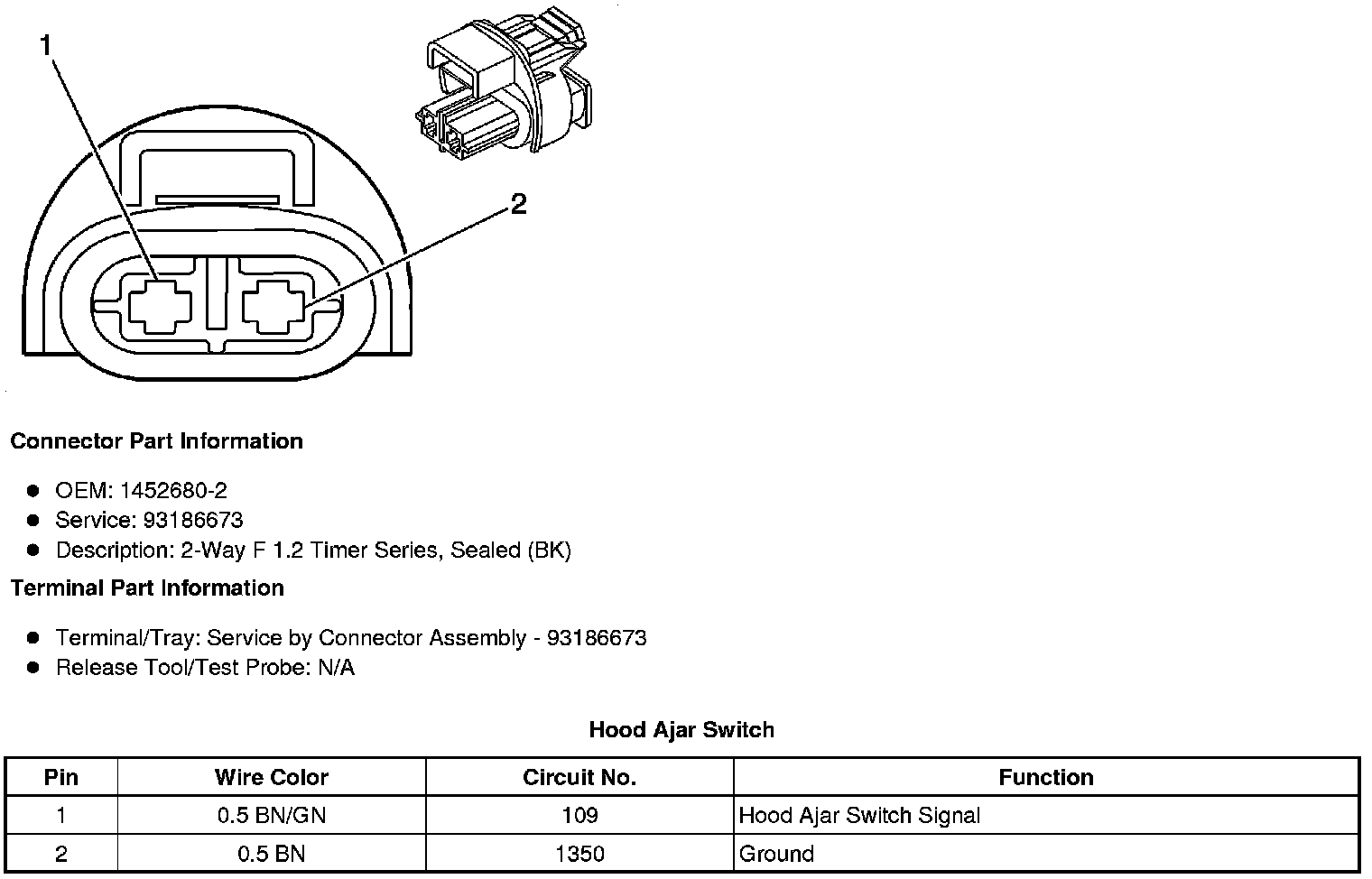

Component Connector End Views

Hood Ajar Switch
