Front Door Window Motor




Component Connector End Views

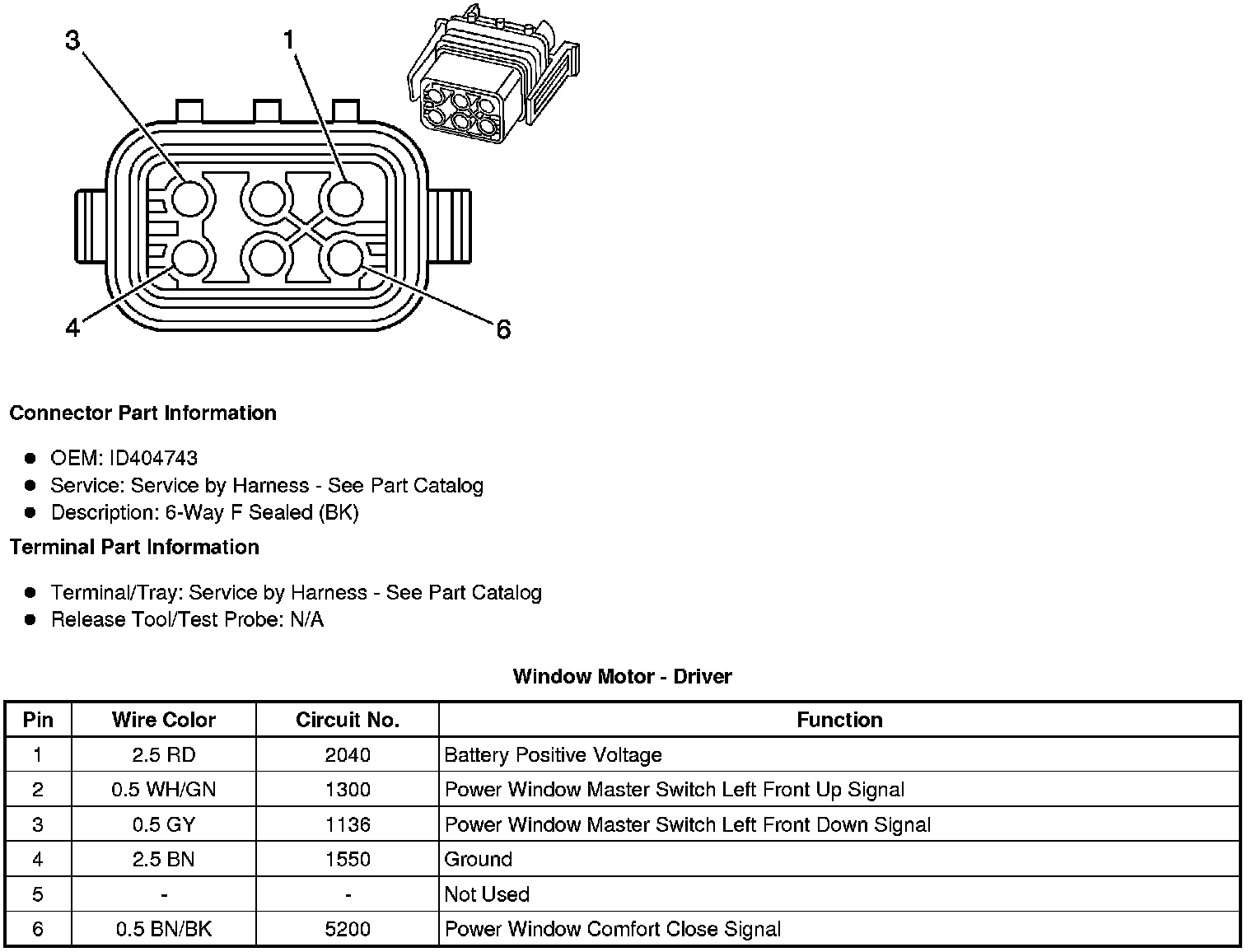

Window Motor - Driver

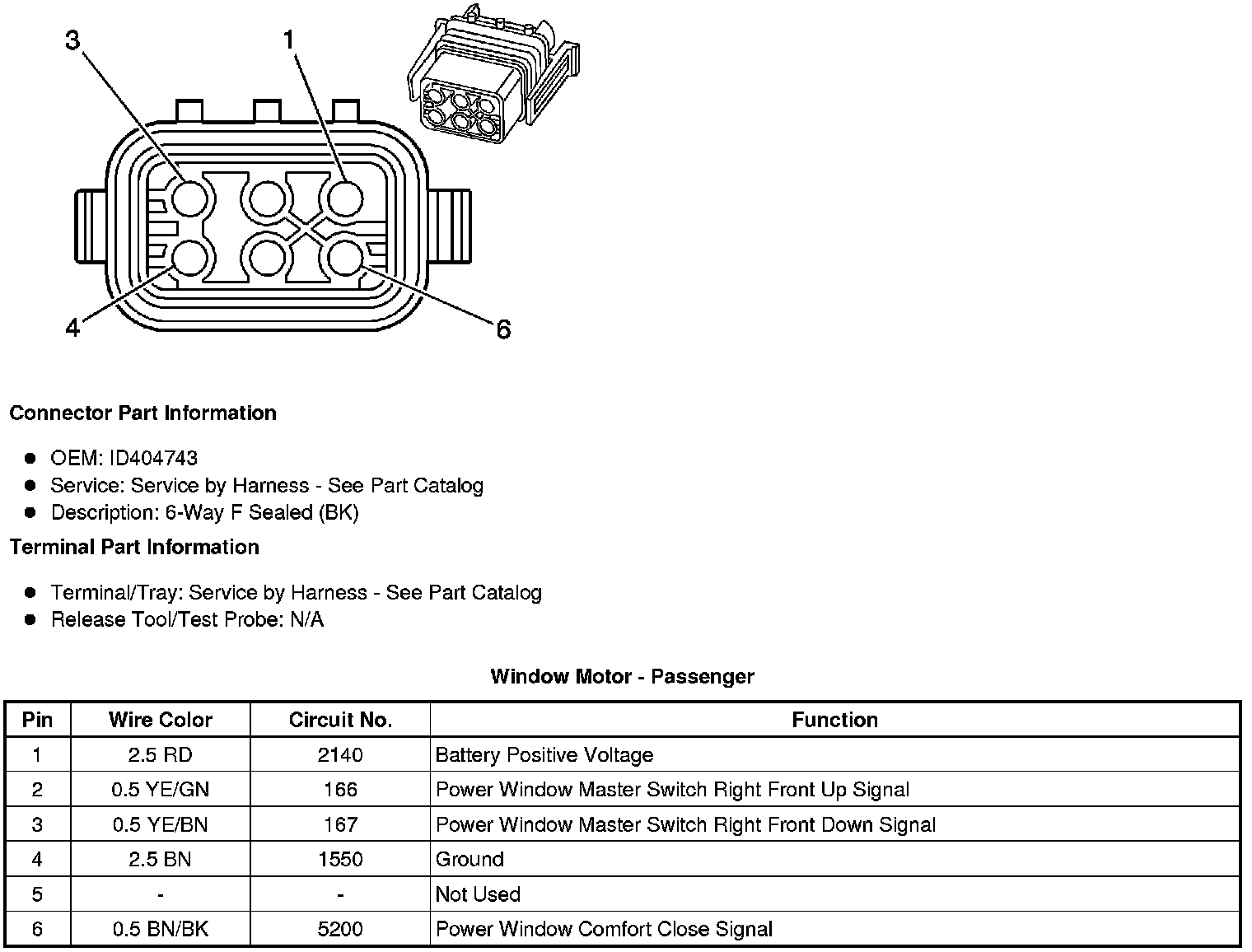

Window Motor - Passenger
