Electrical Diagrams



Data Communication Schematics

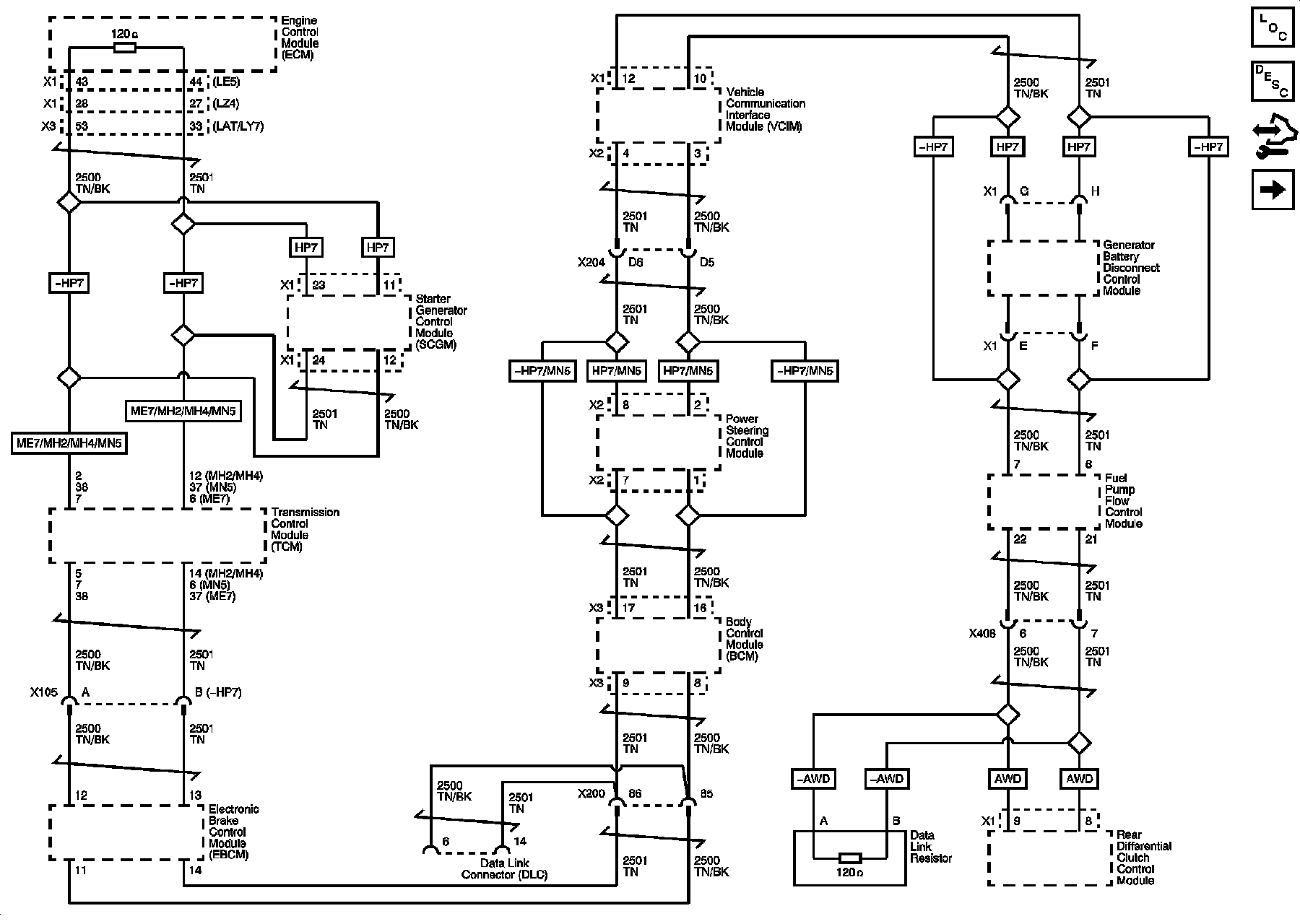

High Speed GMLAN

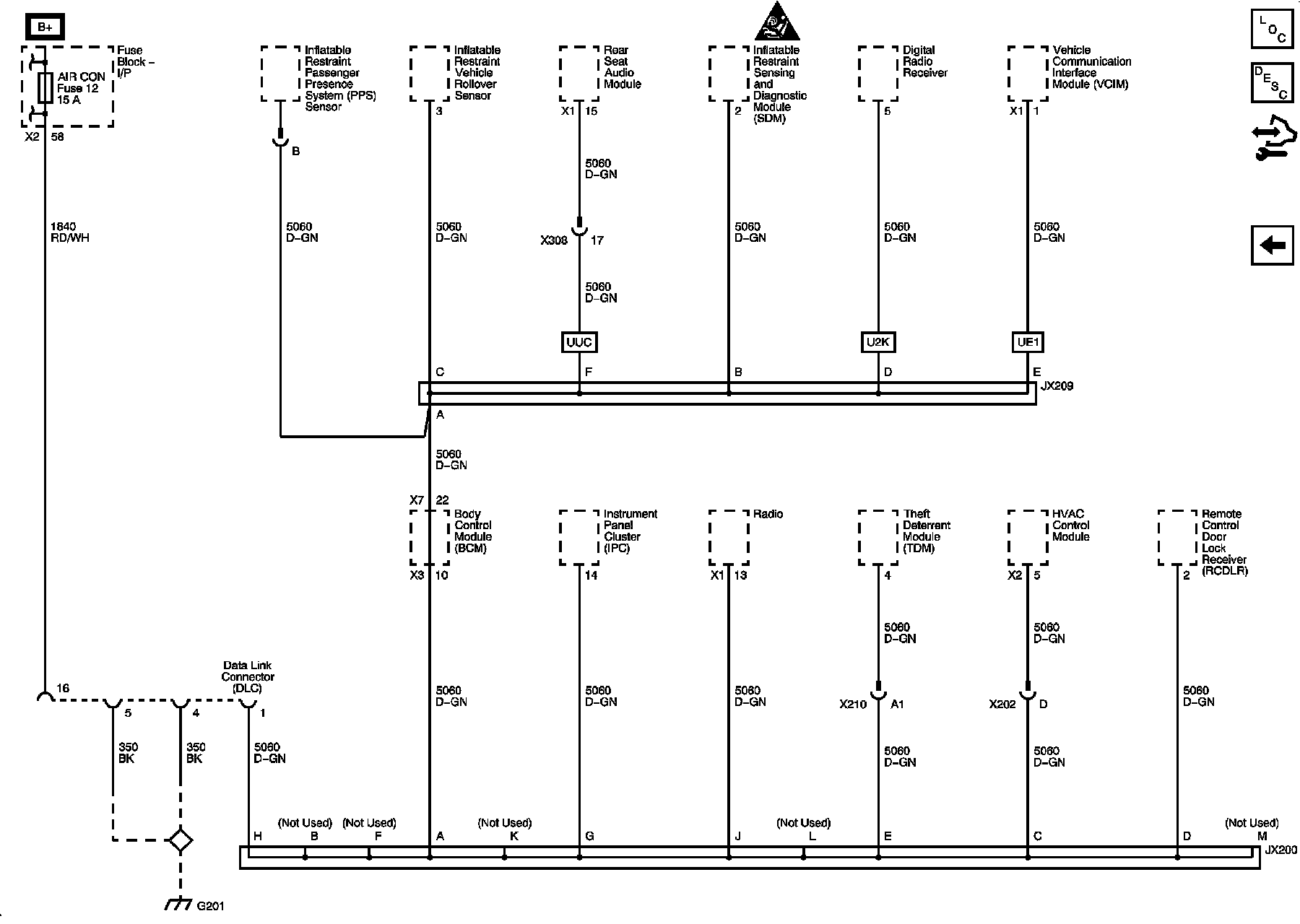

Low Speed GMLAN

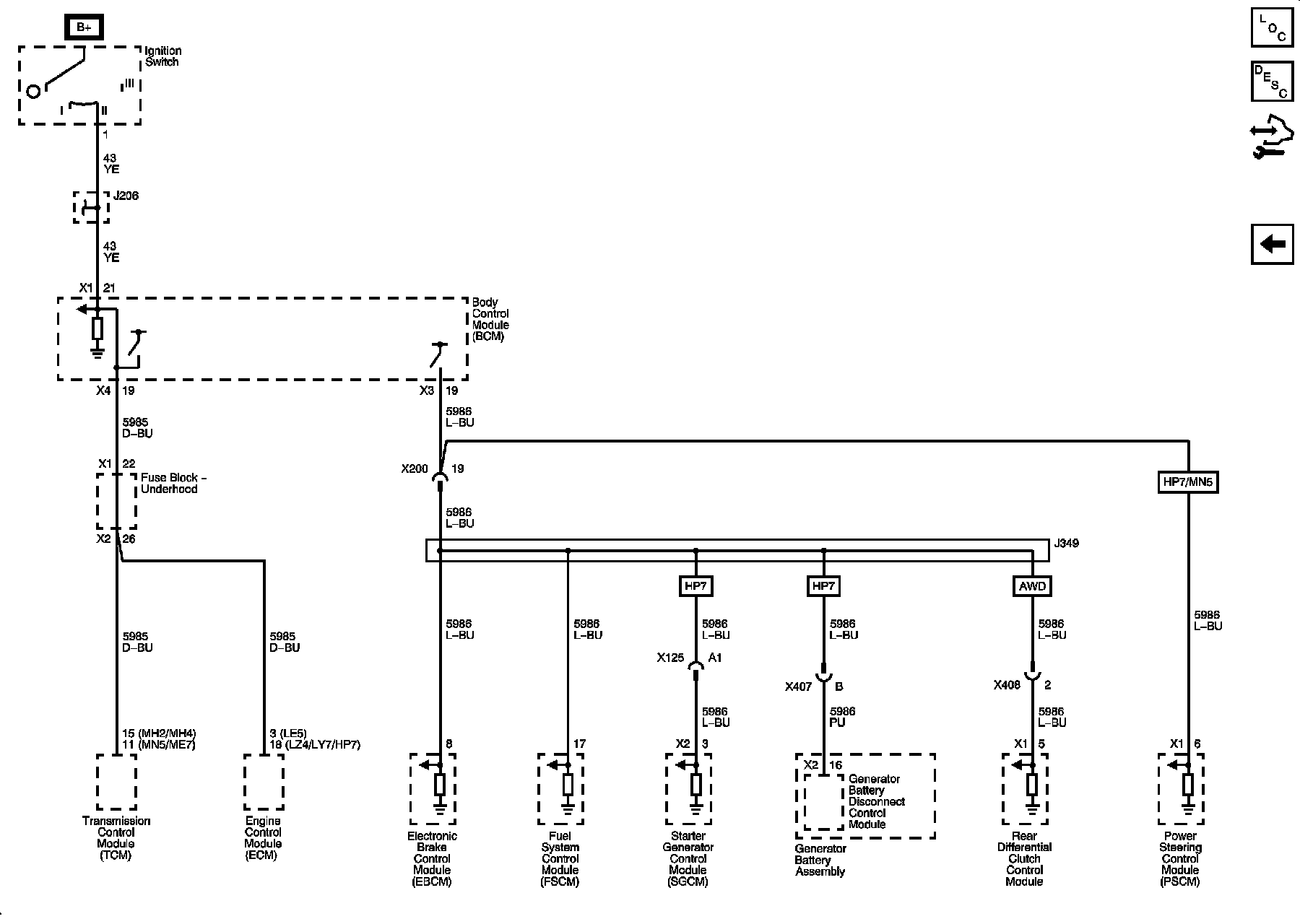

Serial Data Communication Enable and Accessory Wake Up
