Connector Views




Accelerator Pedal Position (APP) Sensor

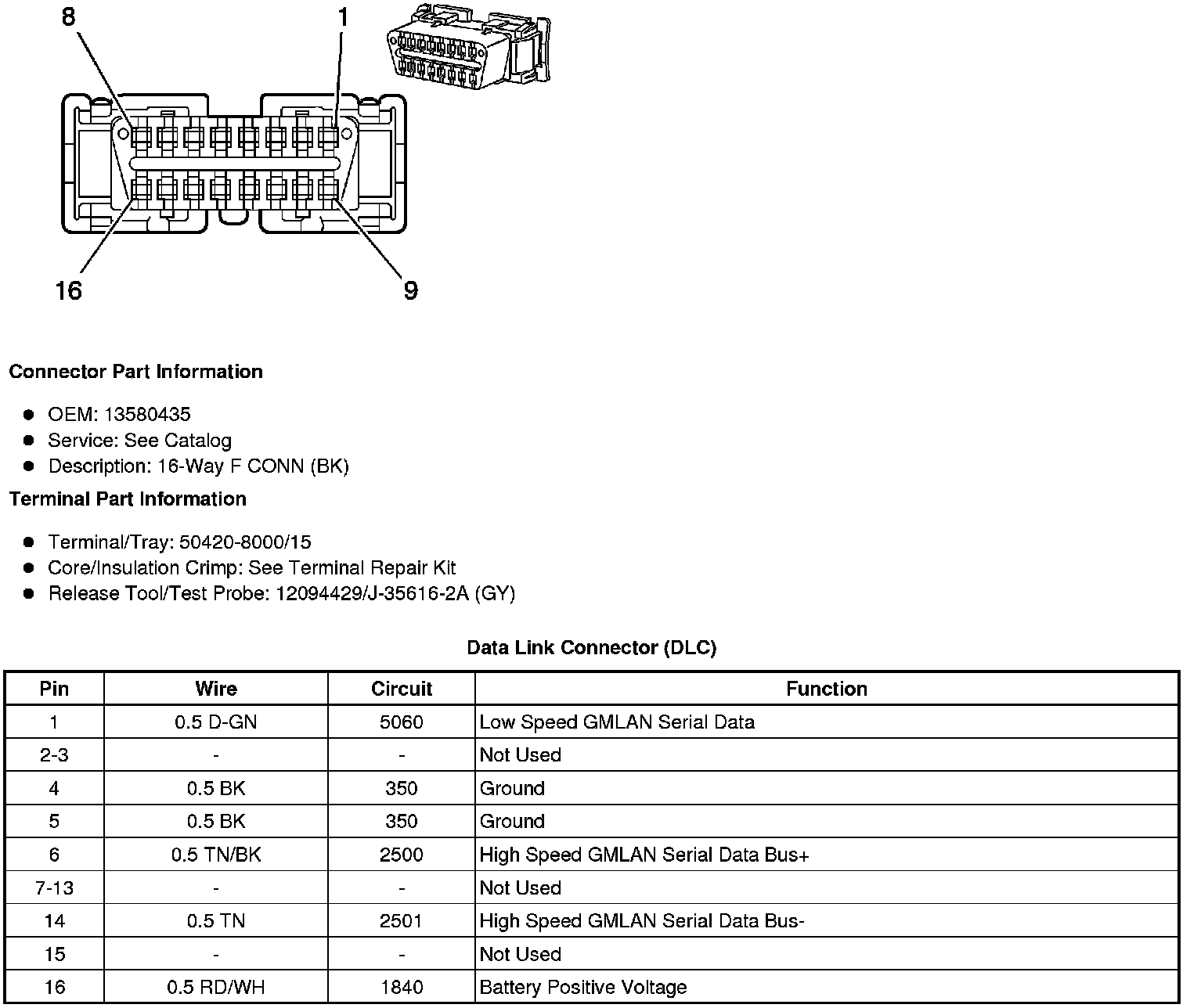

Data Link Connector (DLC)







Vehicle Communications Interface Module (VCIM) Backup Battery Module (UE1)

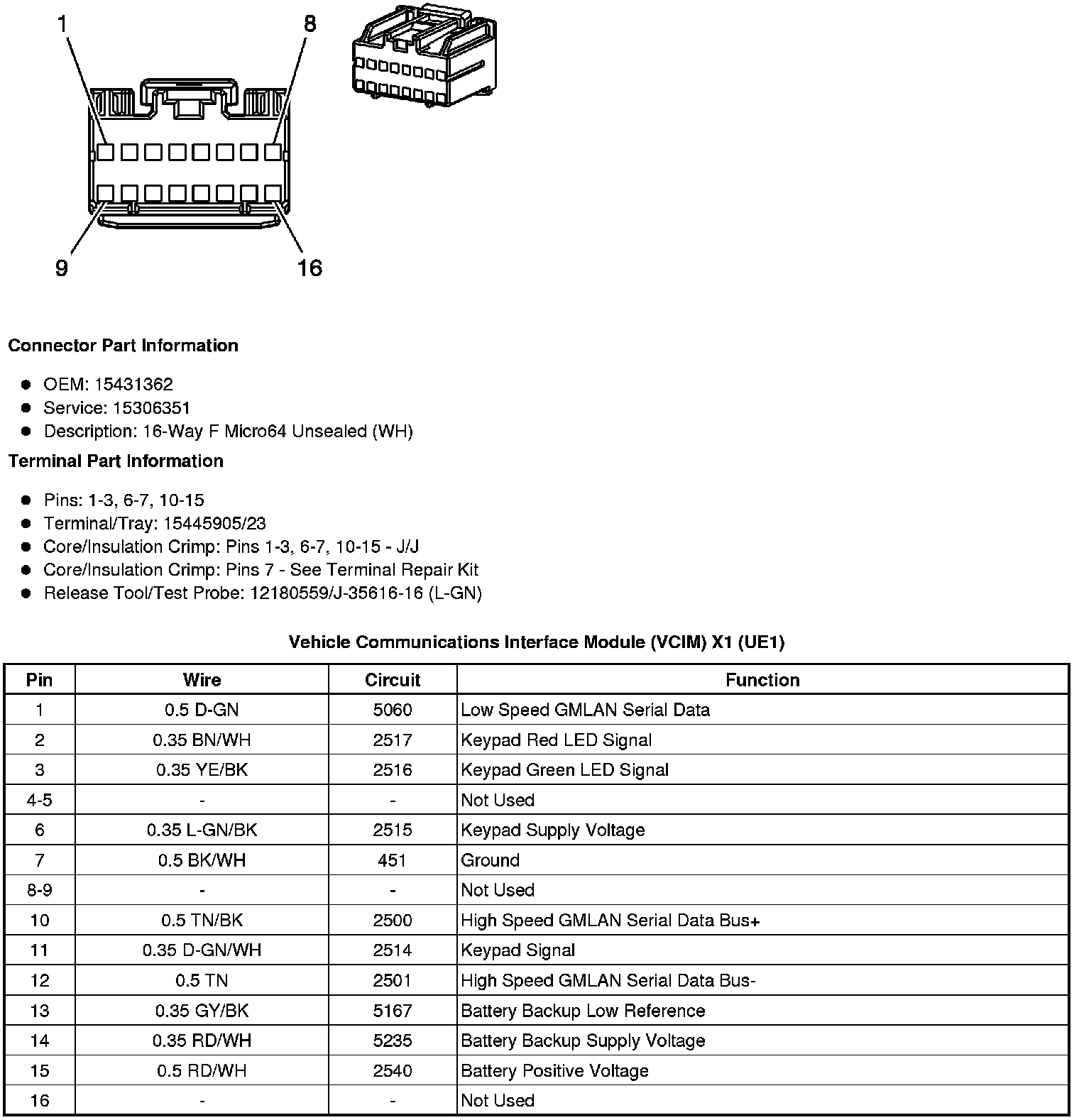

Vehicle Communications Interface Module (VCIM) X1 (UE1)

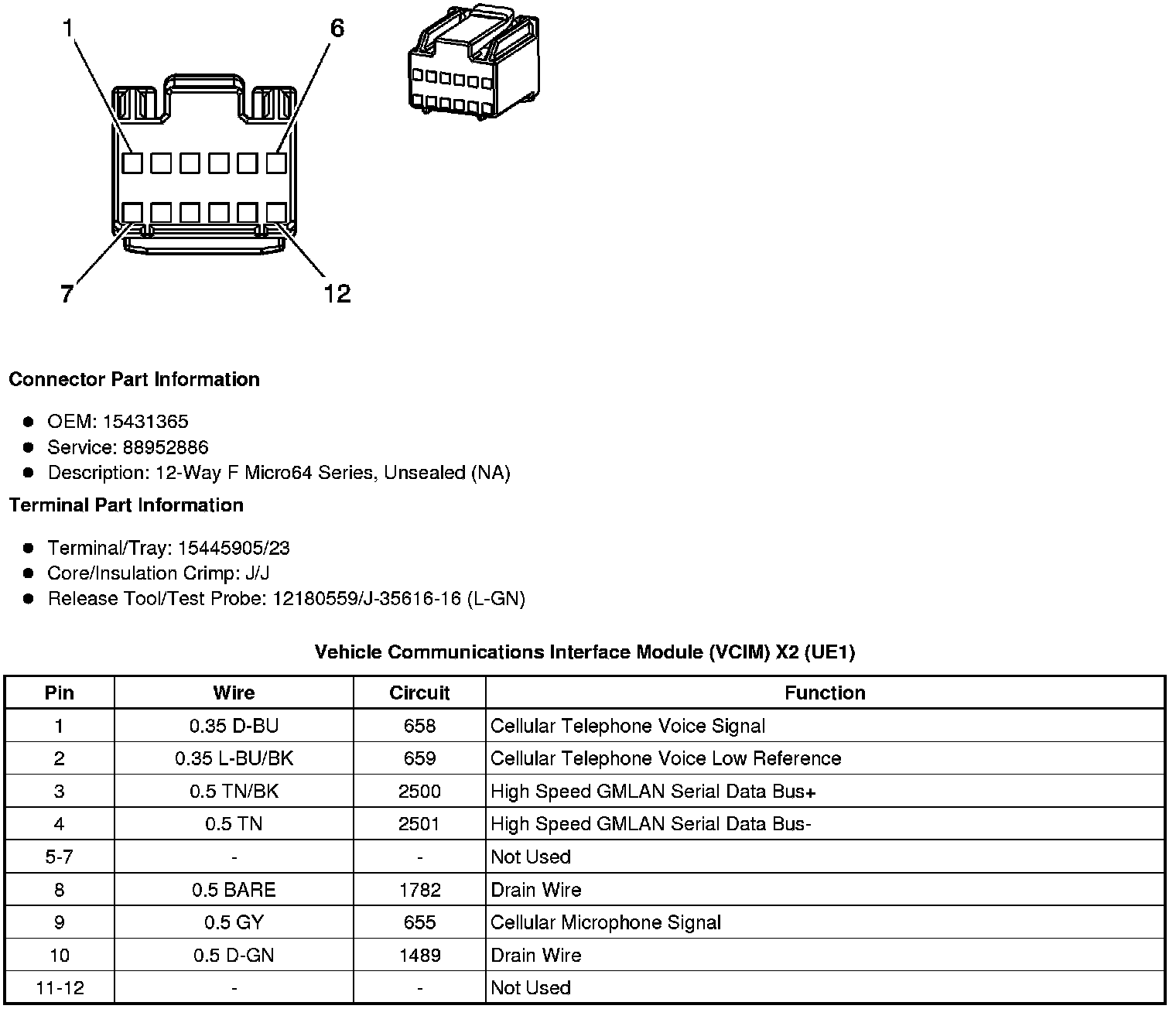

Vehicle Communications Interface Module (VCIM) X2 (UE1)

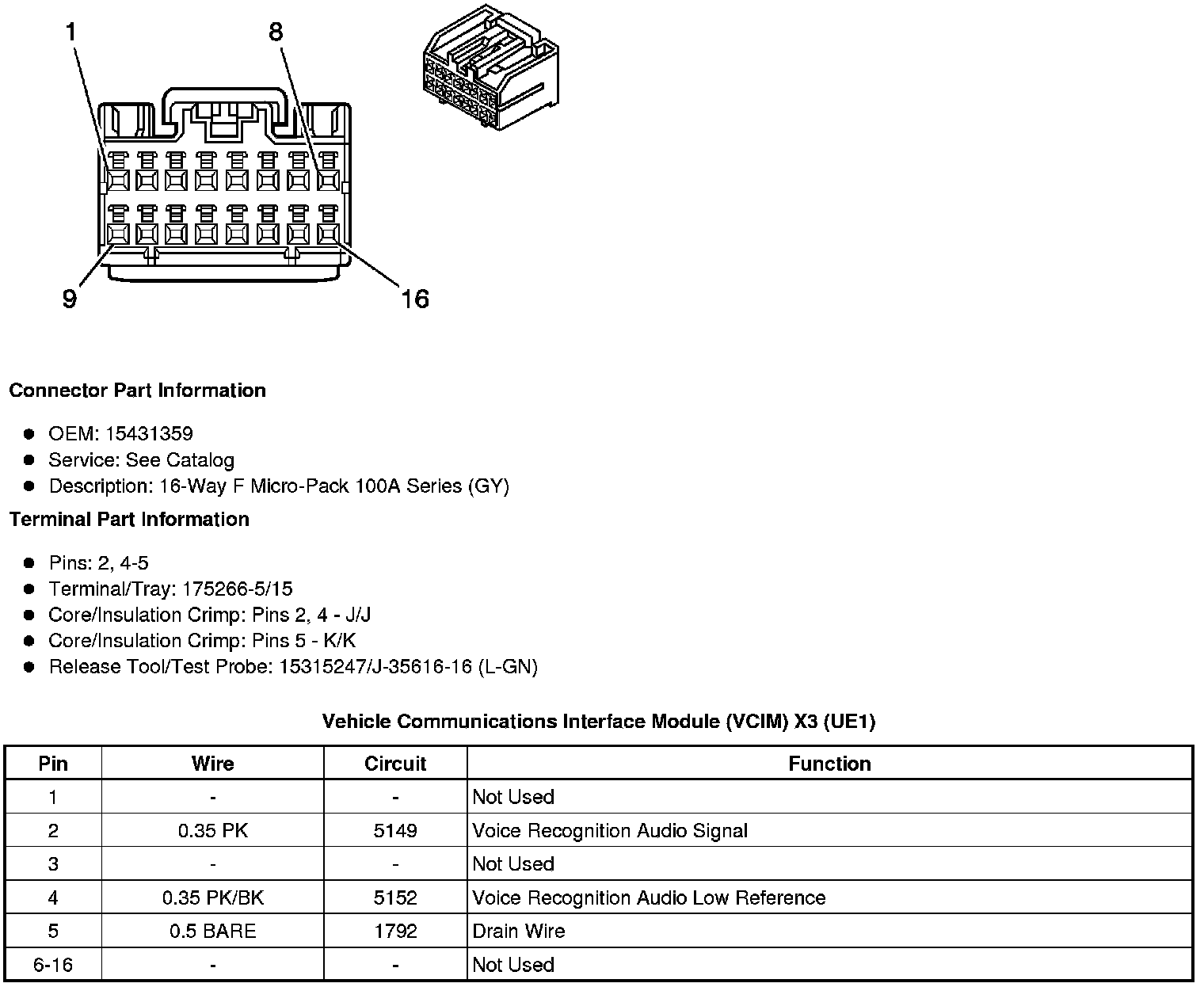

Vehicle Communications Interface Module (VCIM) X3 (UE1)
