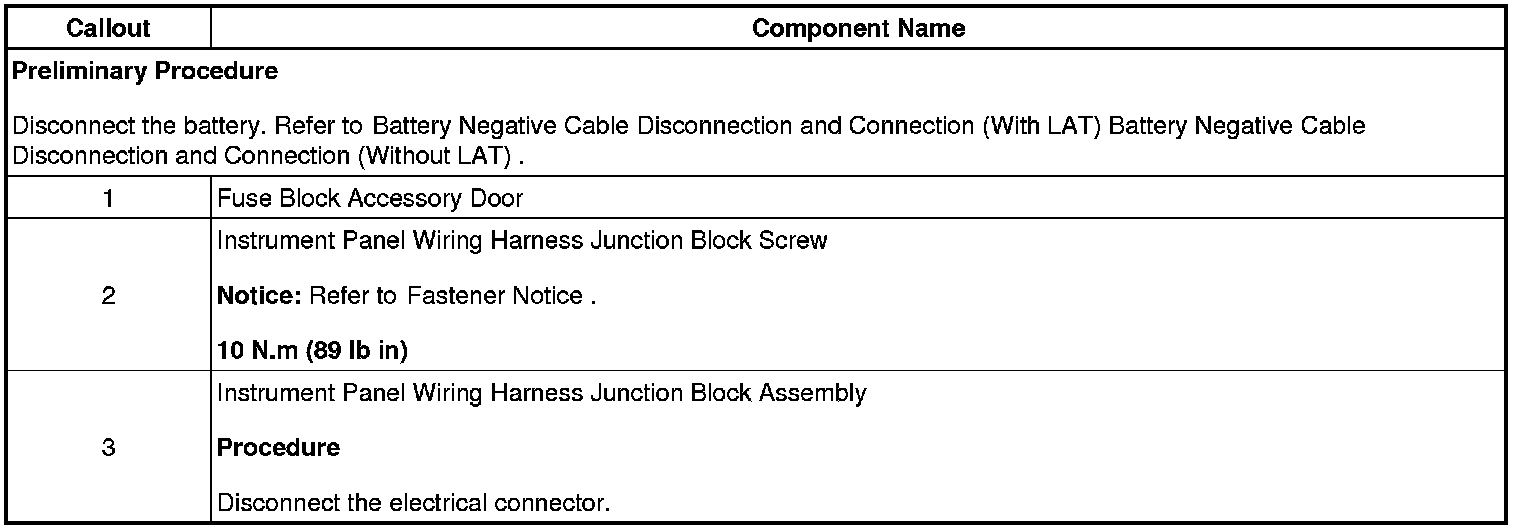

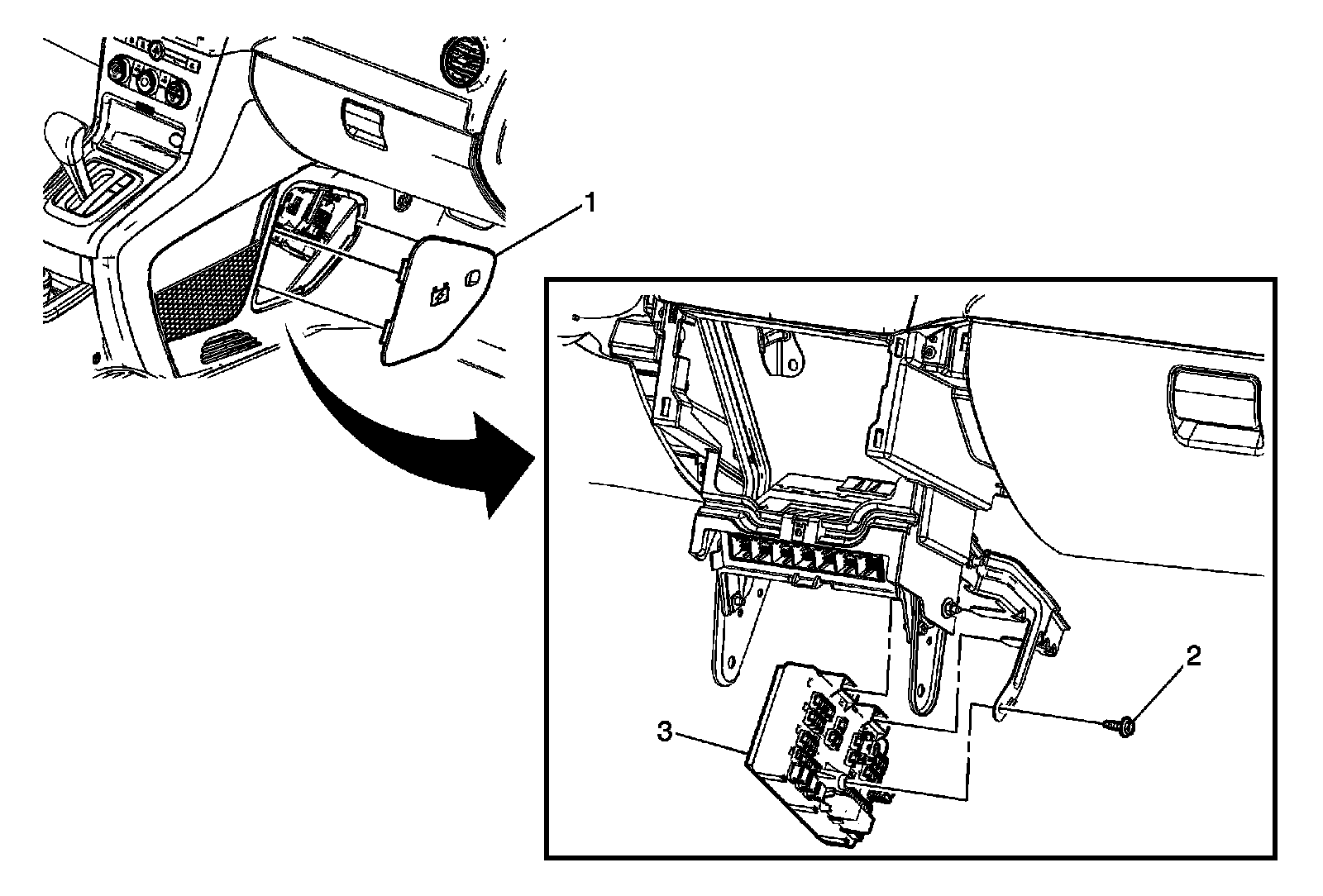

Instrument Panel Wiring Harness Junction Block Replacement



Instrument Panel Wiring Harness Junction Block Replacement
