Body Control Systems



Body Control System Schematics

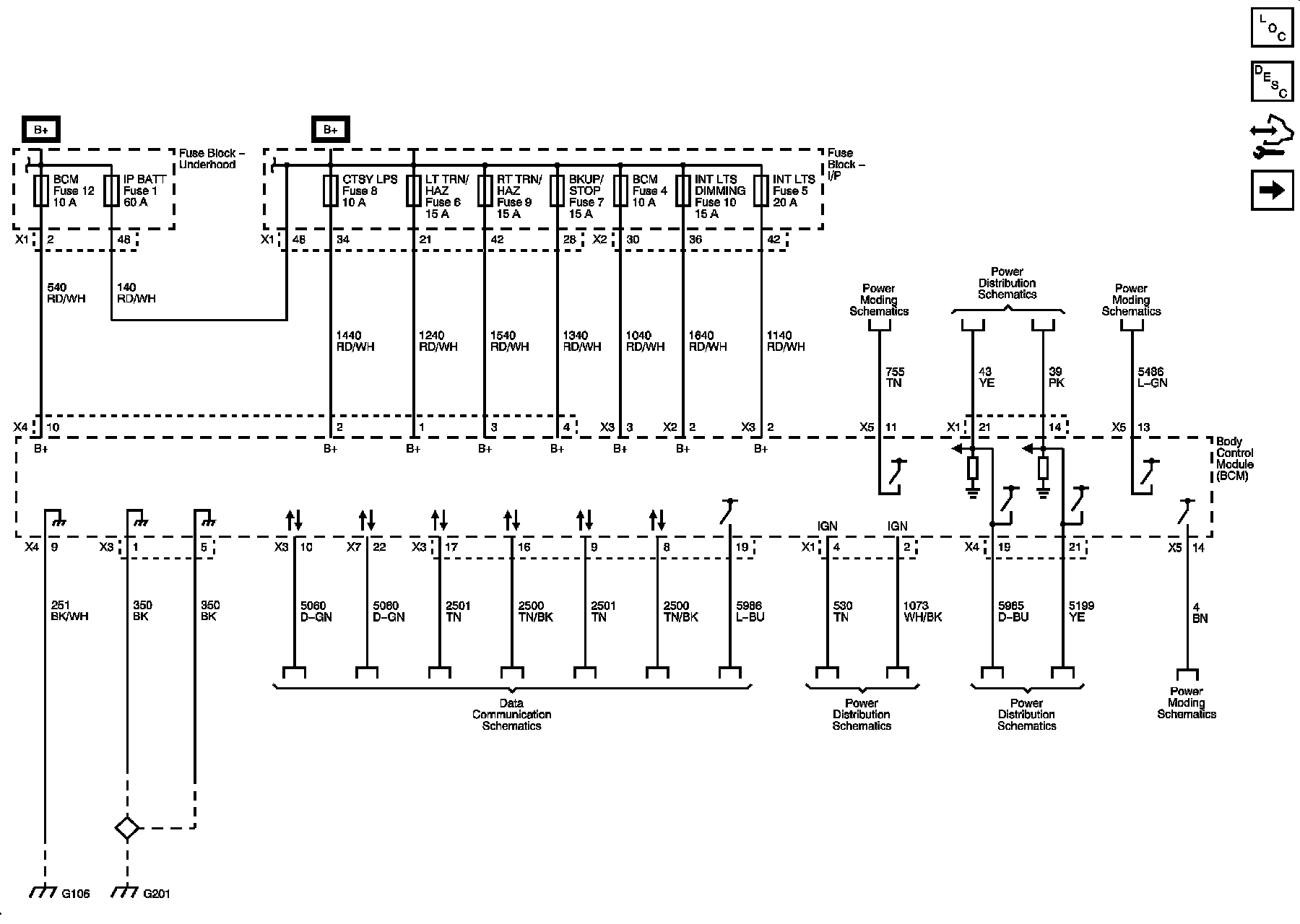

Power, Grounds and Data Communications

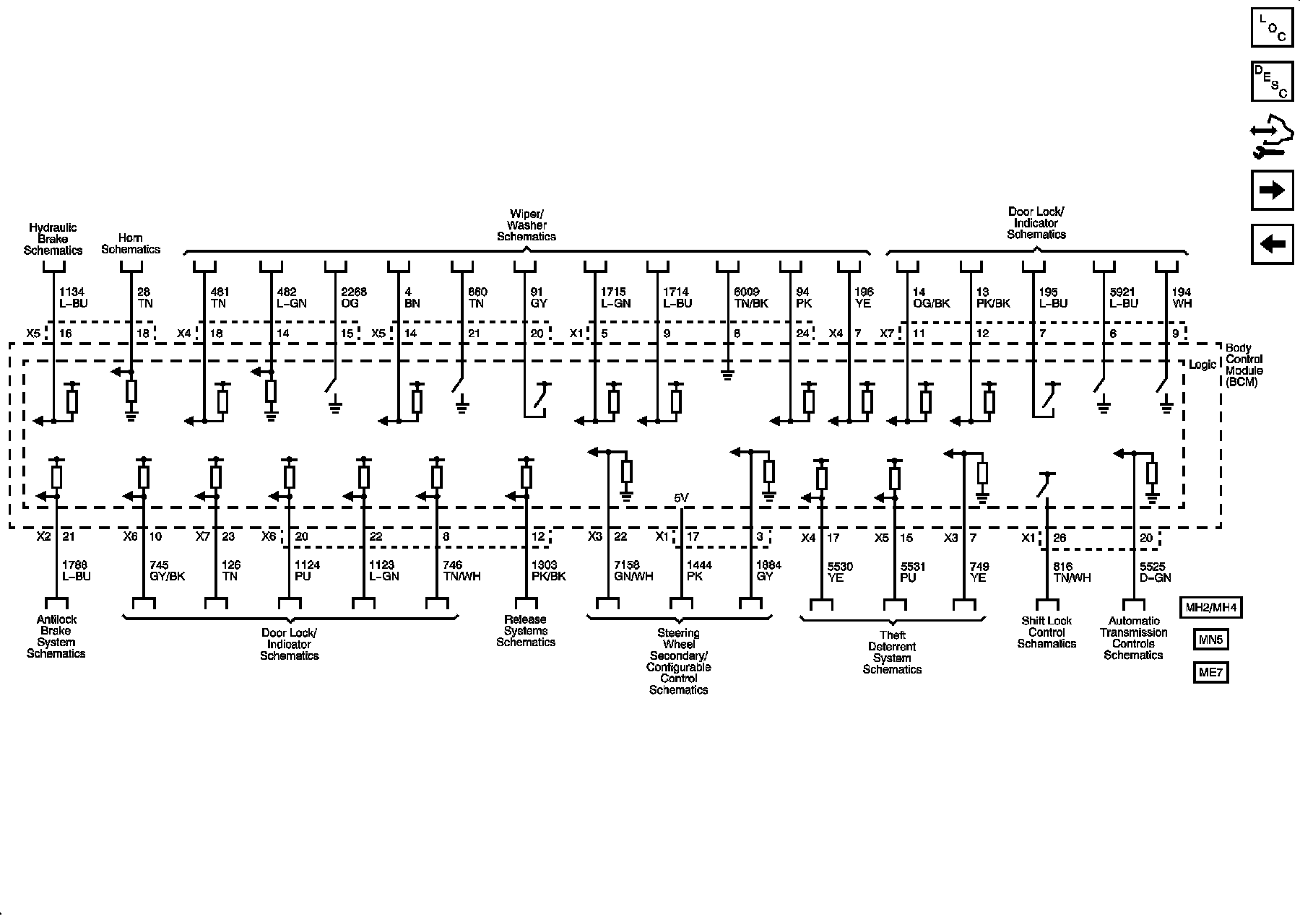

References 1 of 3





References 2 of 3

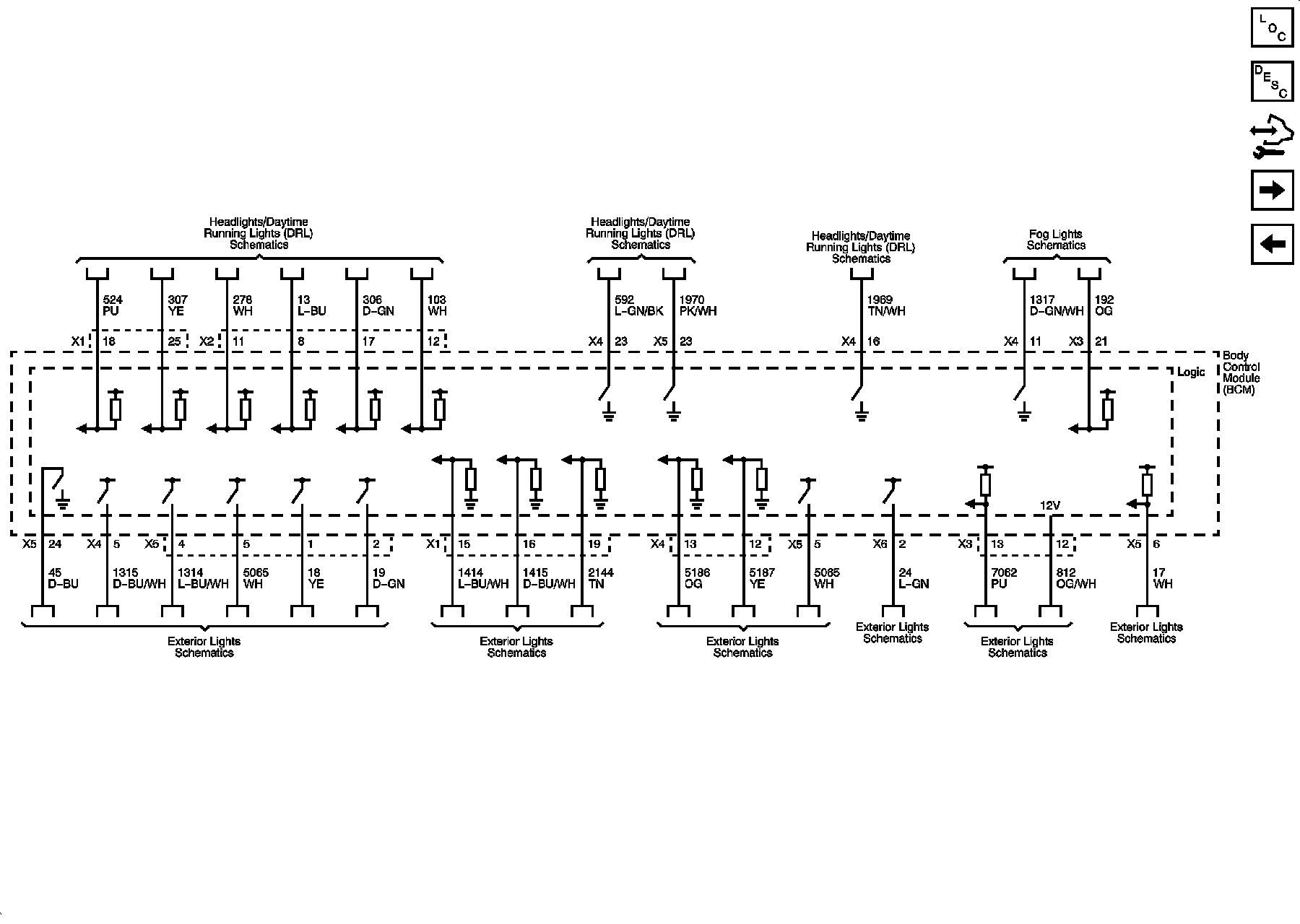

References 3 of 3
