System Diagram






Turn Signal Lamp - Left Rear






Turn Signal Lamp - Right Rear






Turn Signal Lamp - Left Side

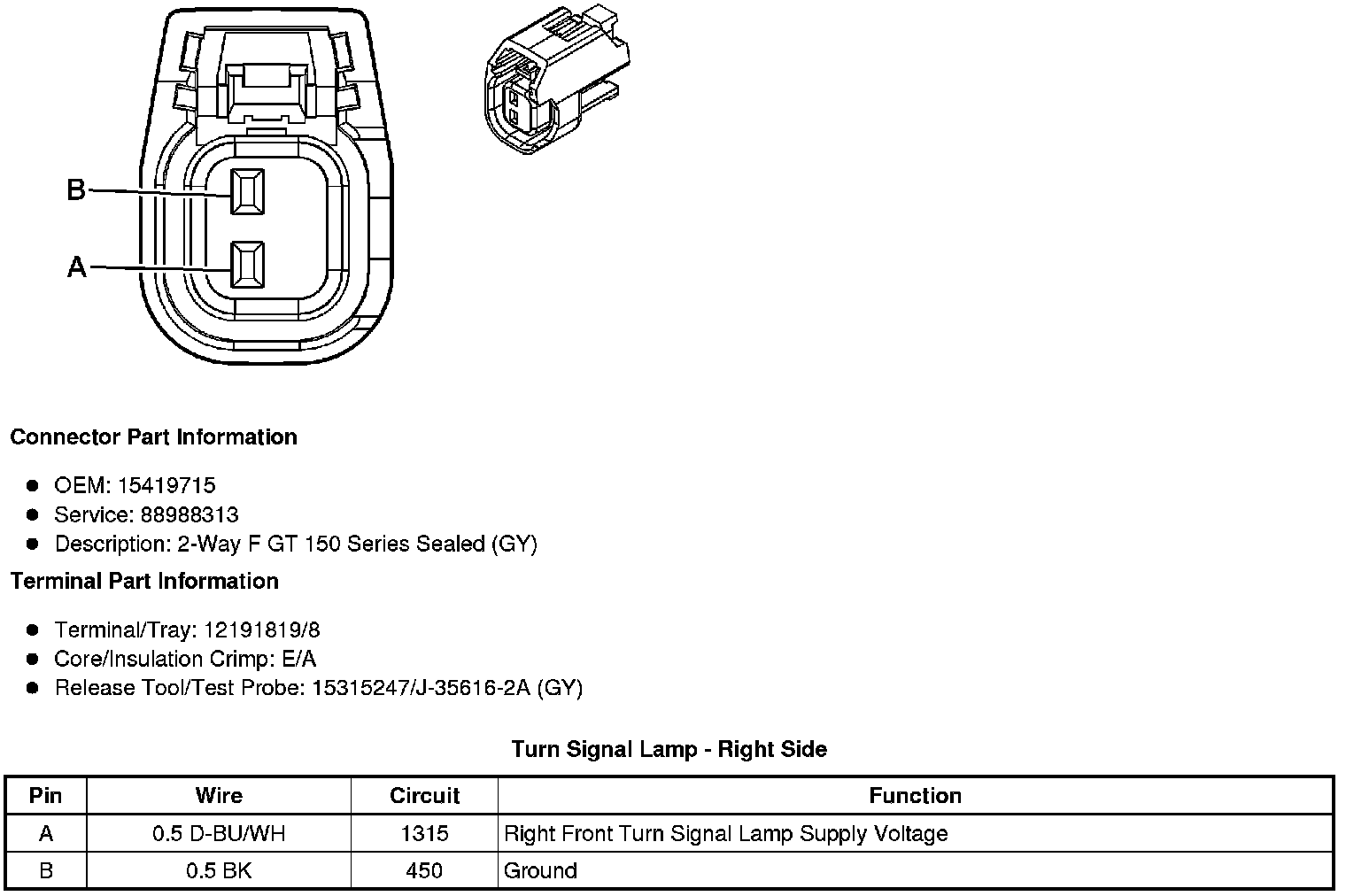

Turn Signal Lamp - Right Side
