Home >> Saturn >> 2008 >> VUE FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo

Radio/Stereo

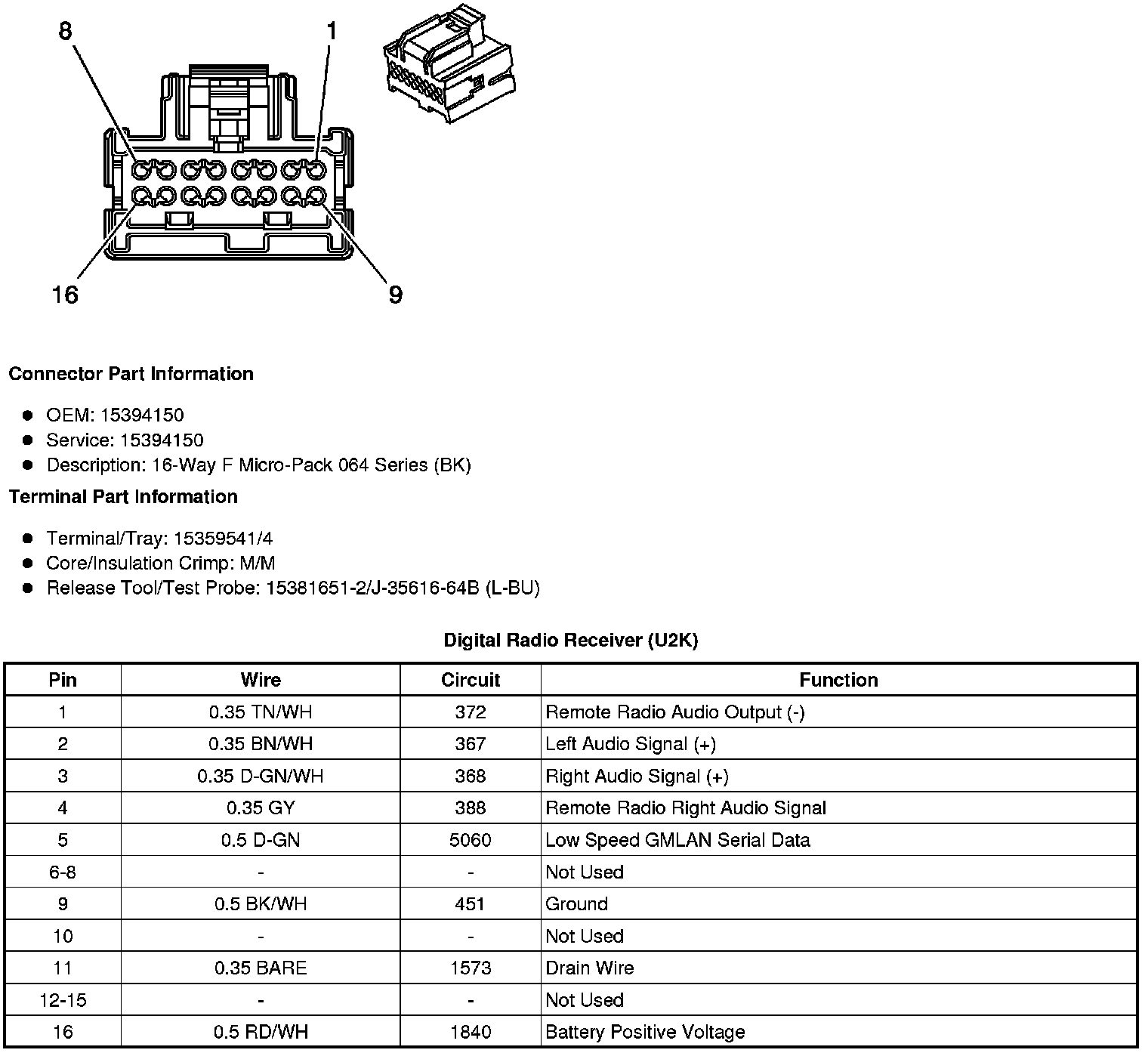

Digital Radio Receiver (U2K)

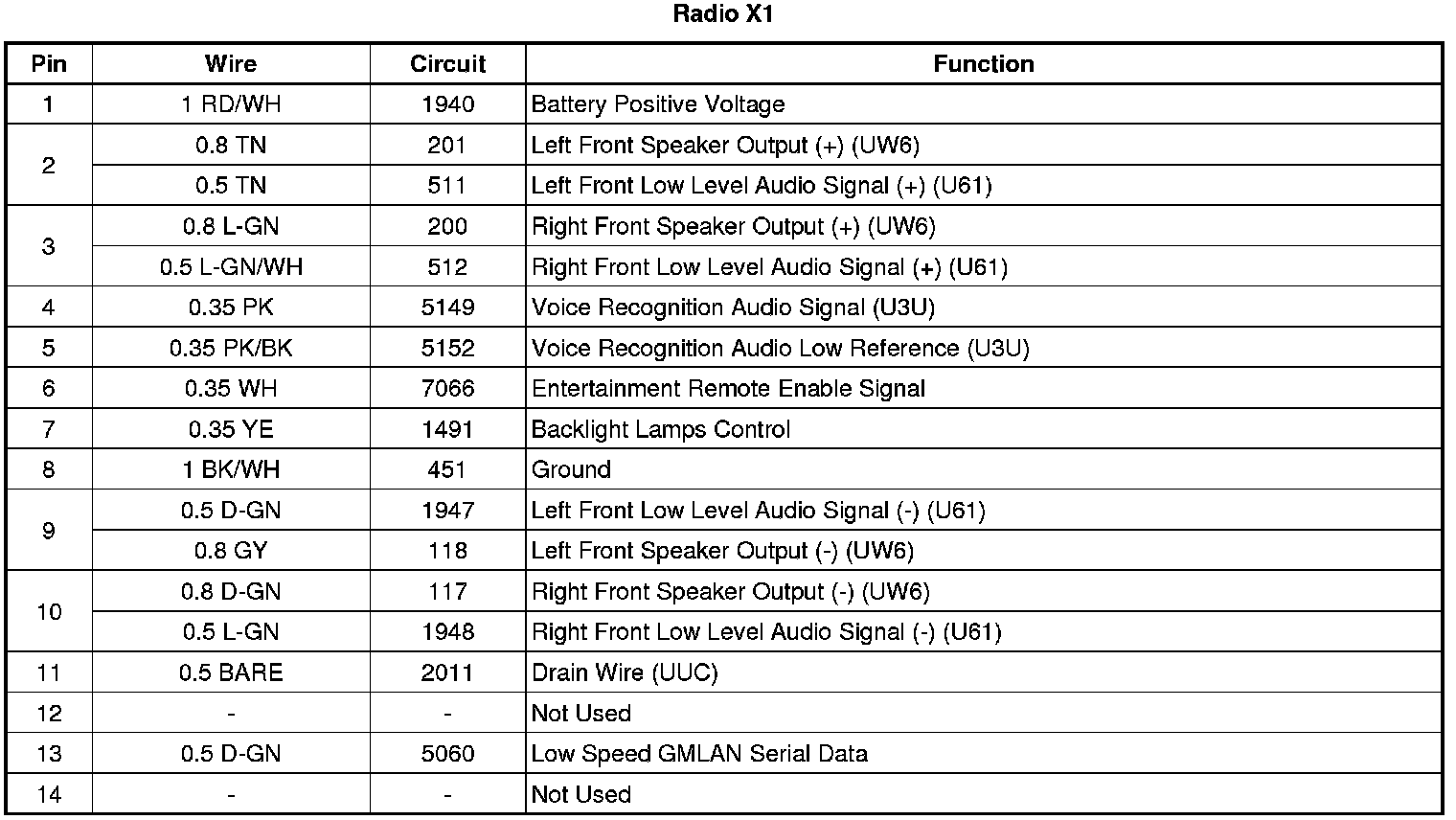

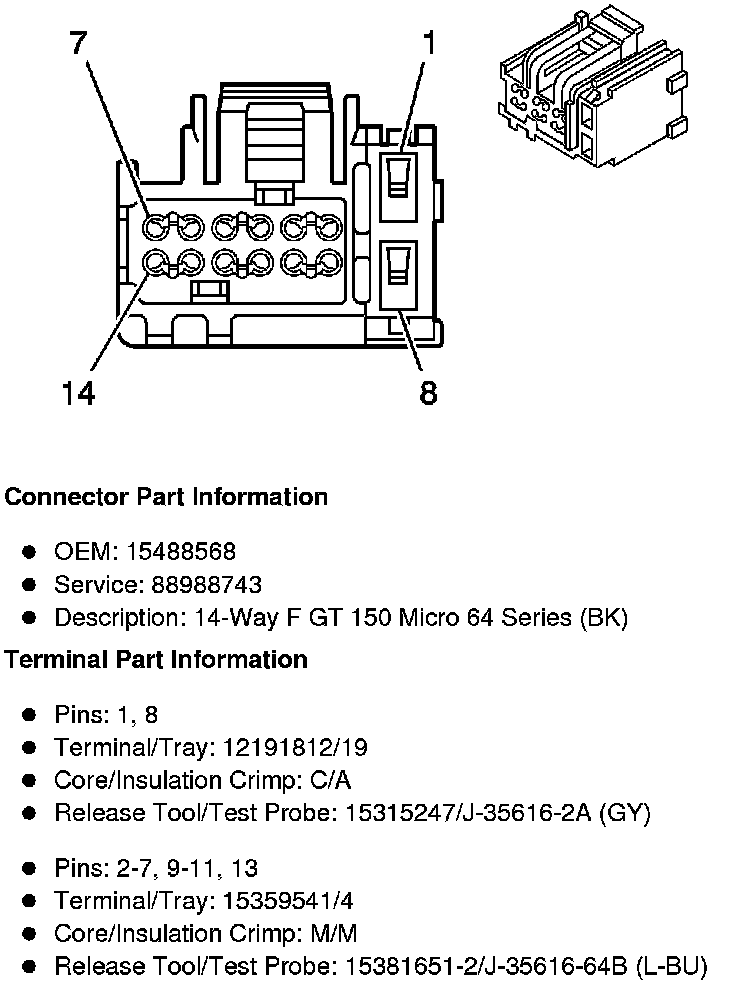

Radio X1

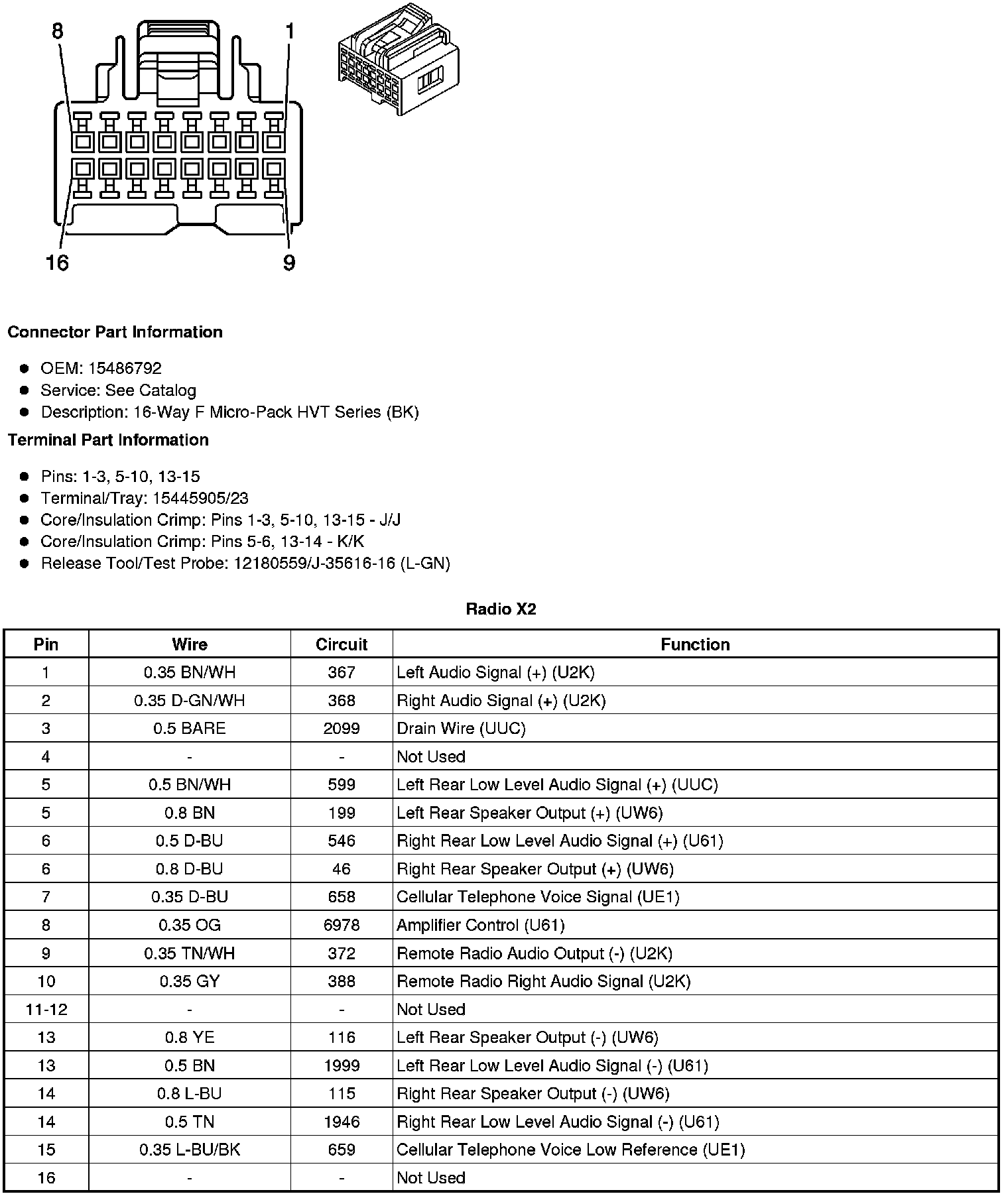

Radio X2

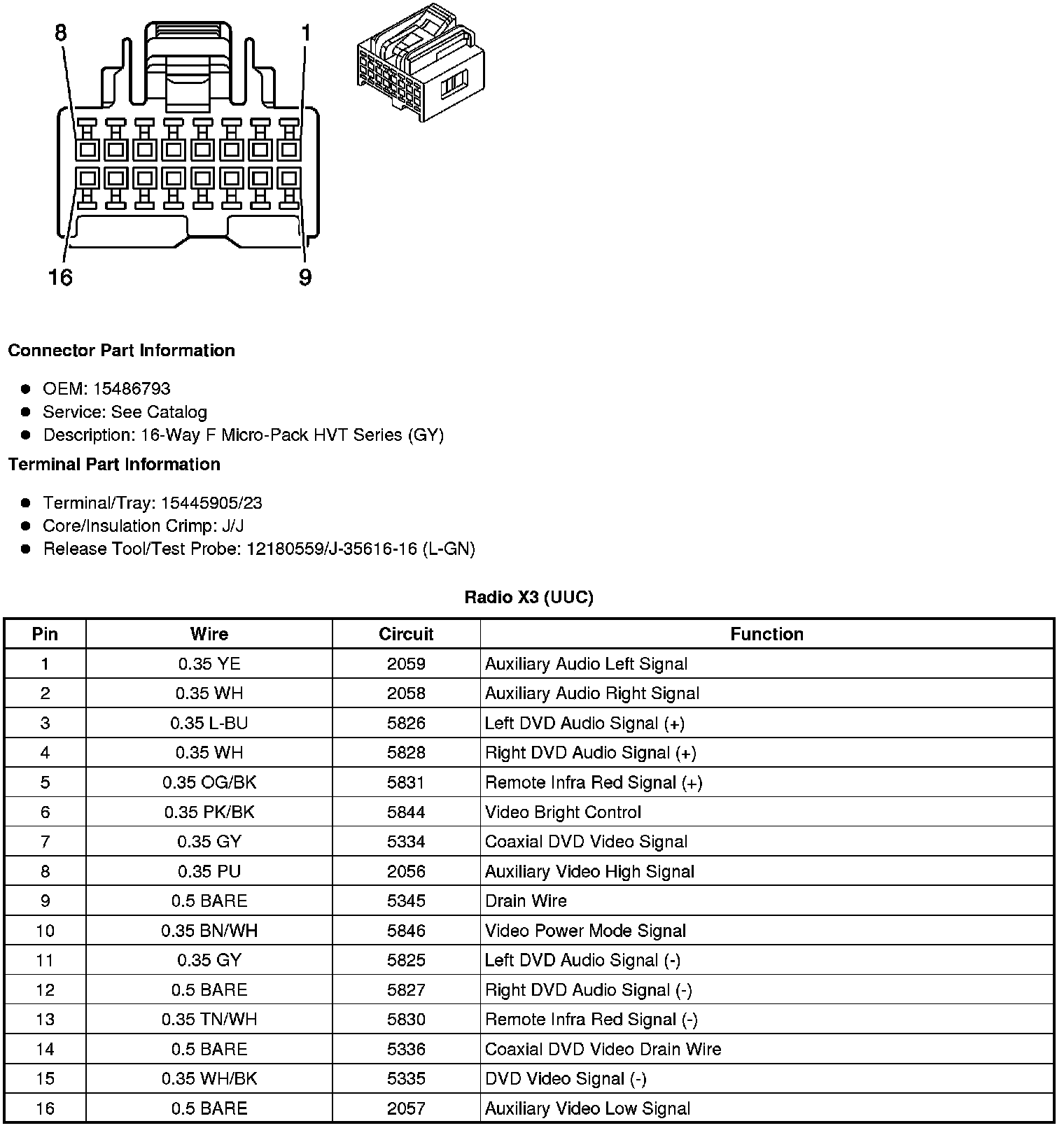

Radio X3 (UUC)

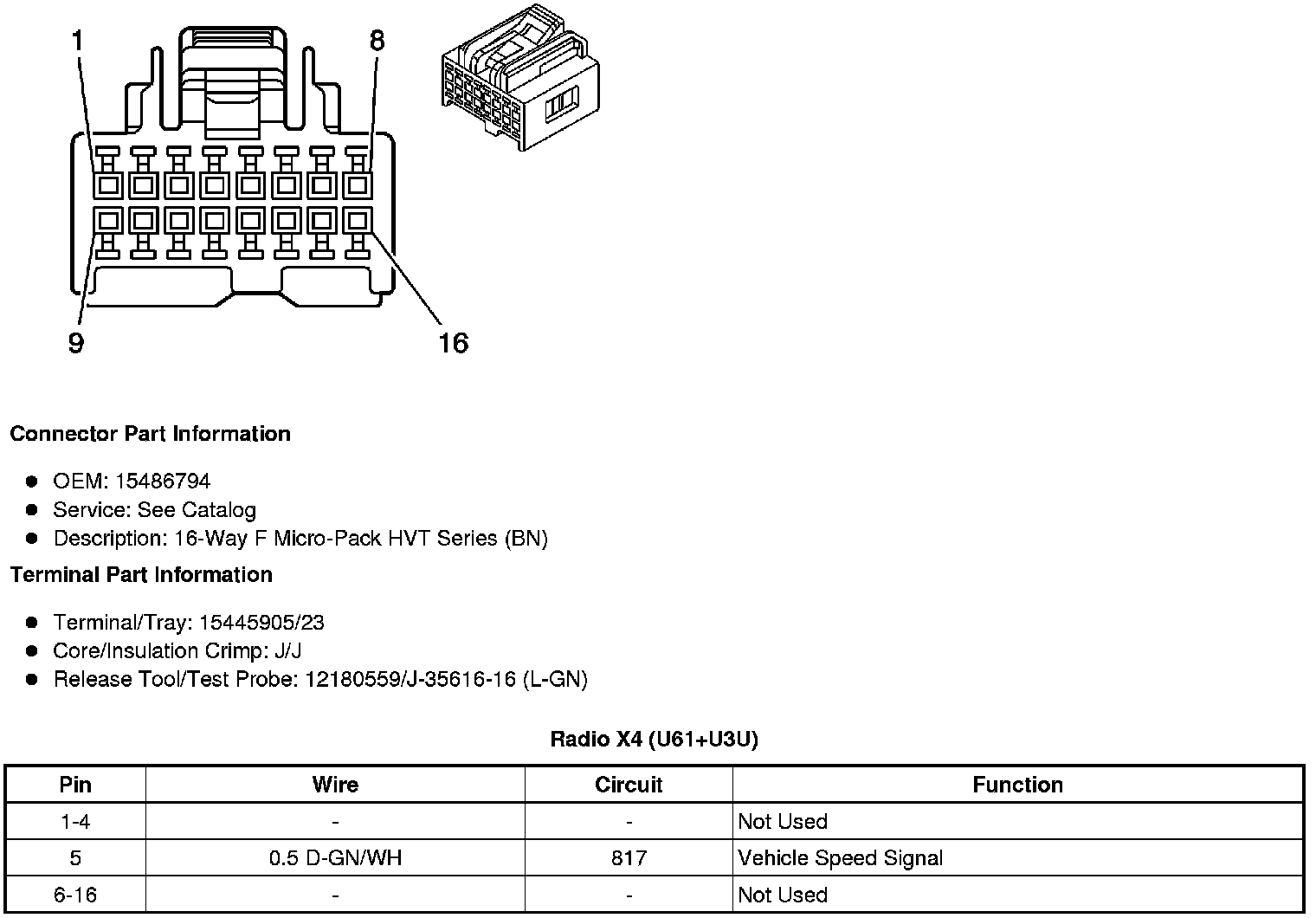

Radio X4 (U61+U3U)
