Home >> Saturn >> 2008 >> VUE FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch

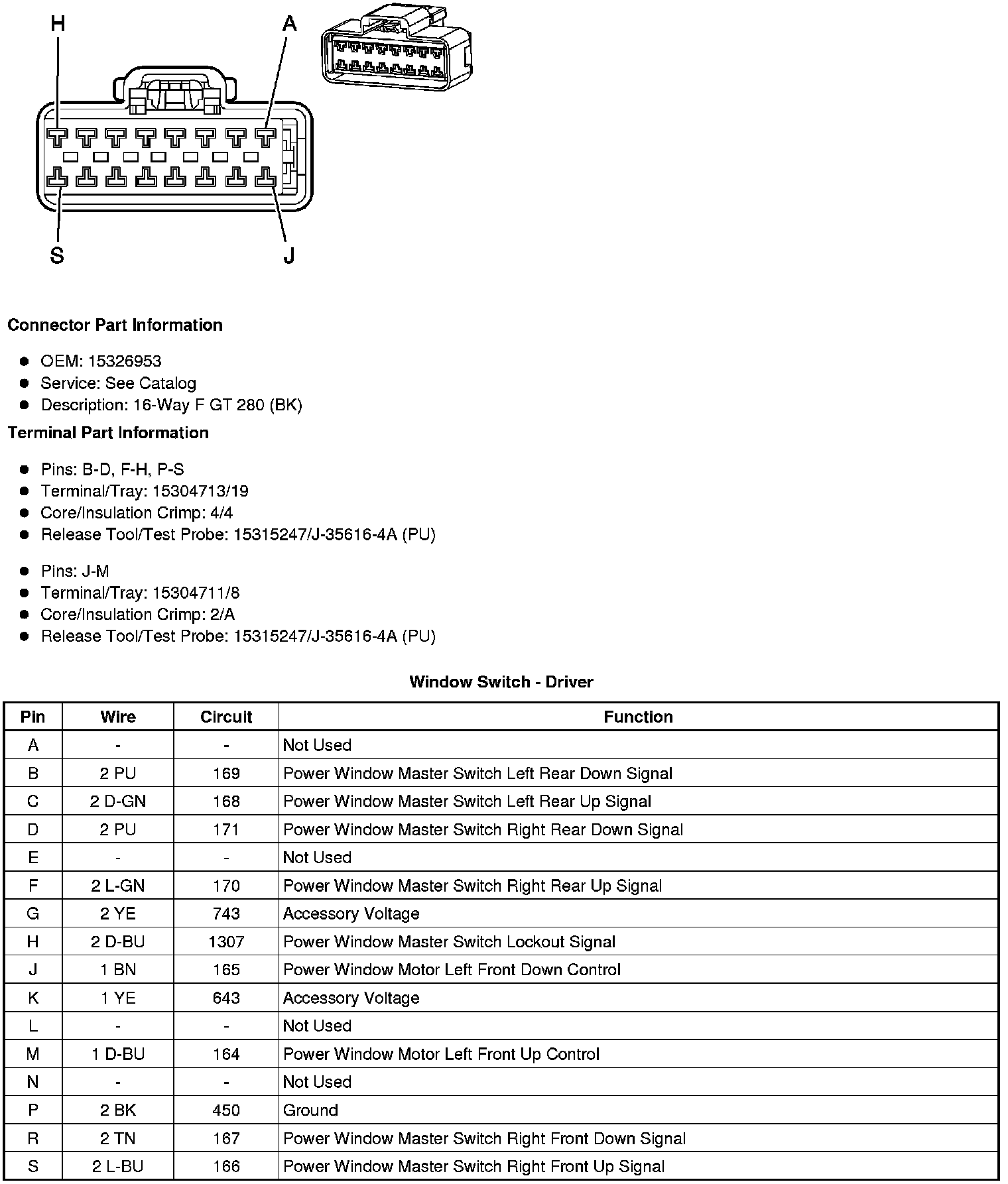

Window Switch - Driver

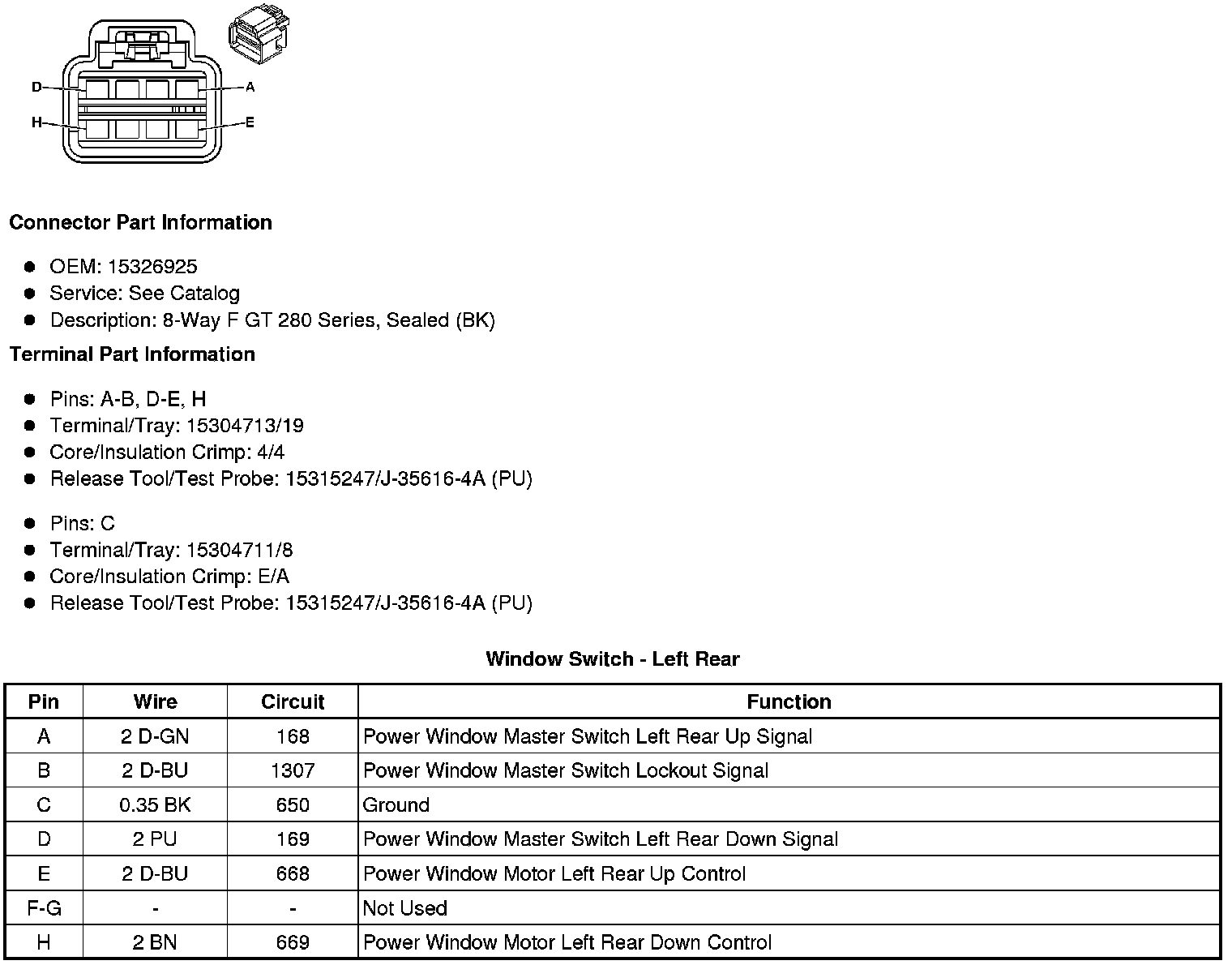

Window Switch - Left Rear

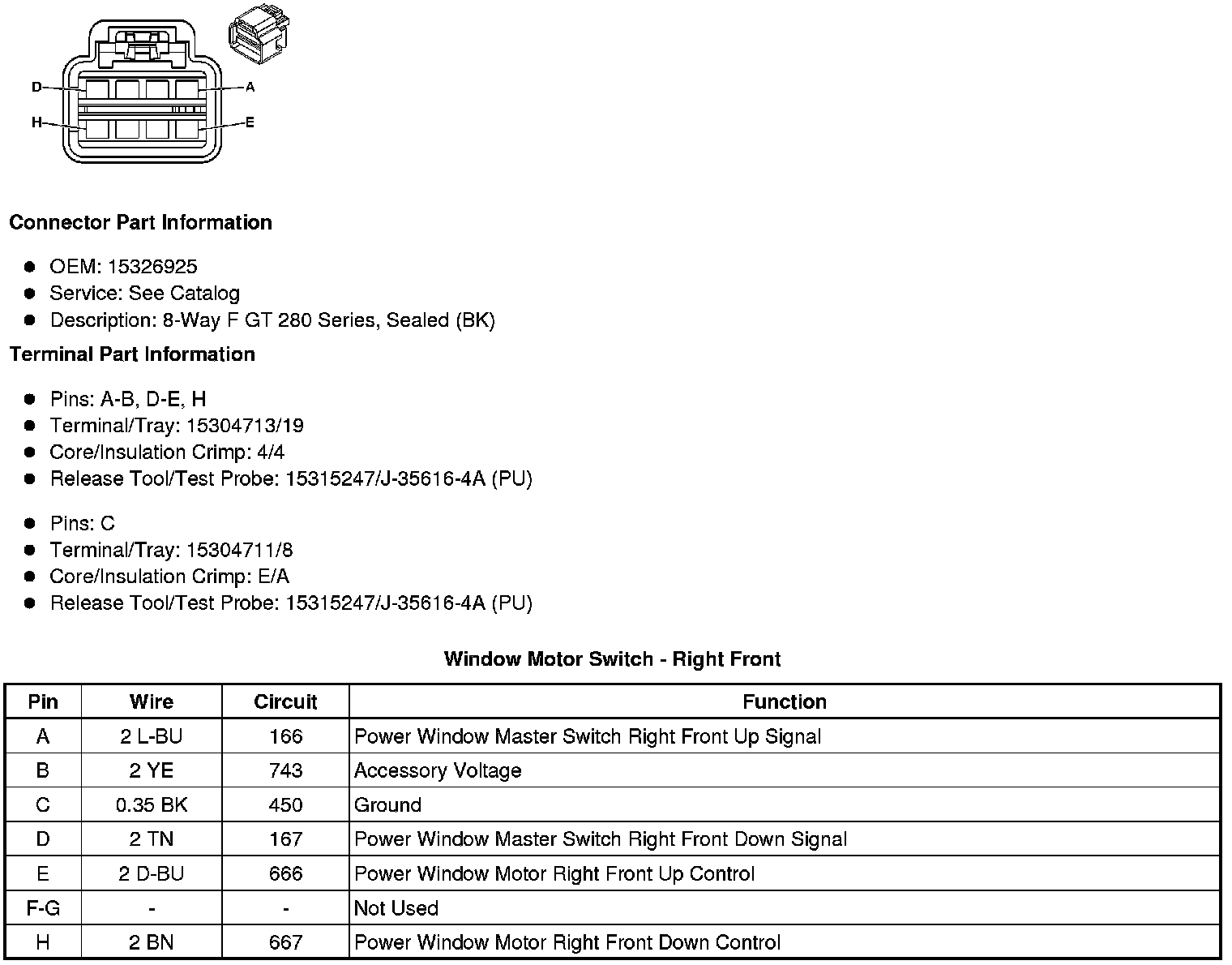

Window Switch - Right Front

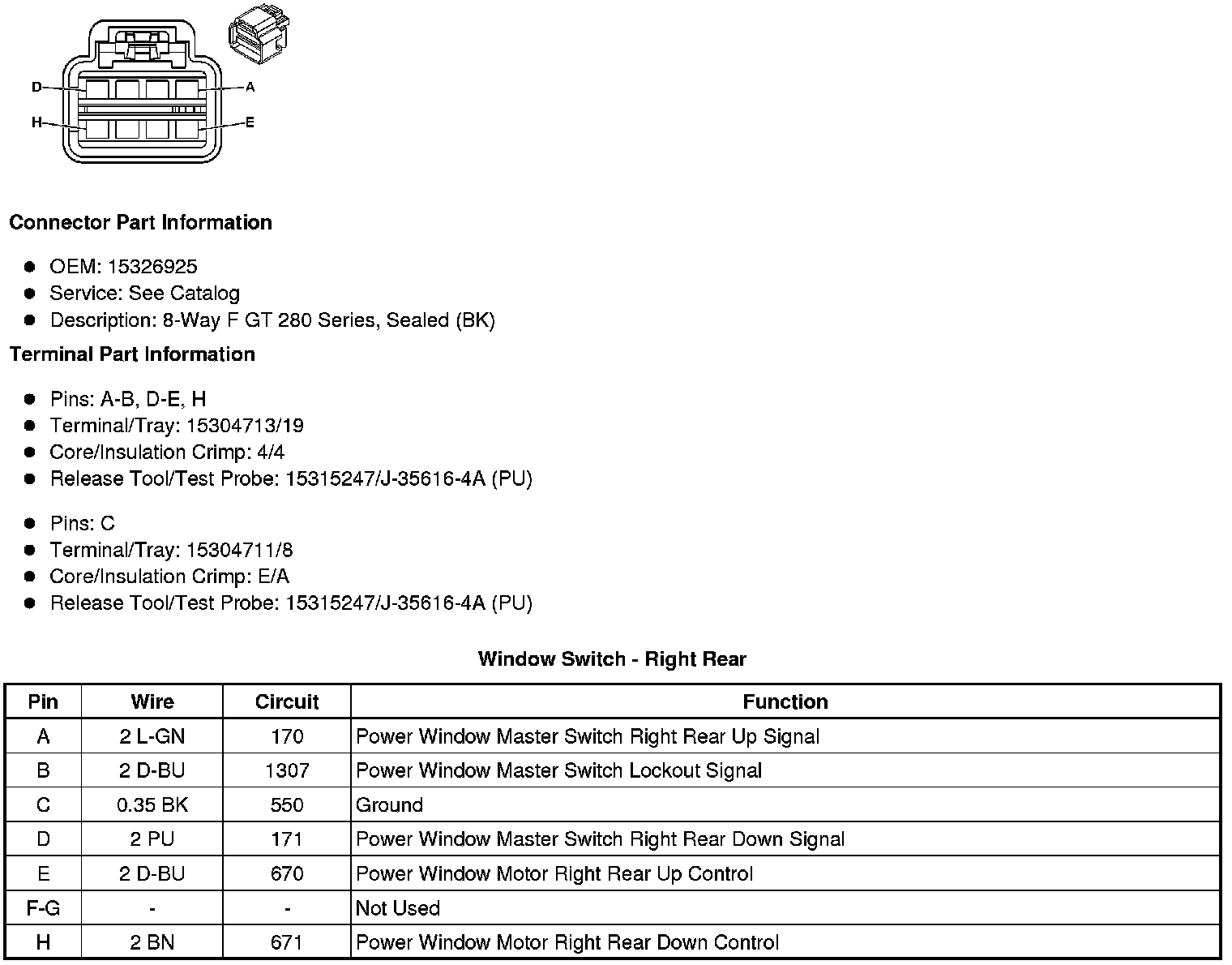

Window Switch - Right Rear
