System Diagram

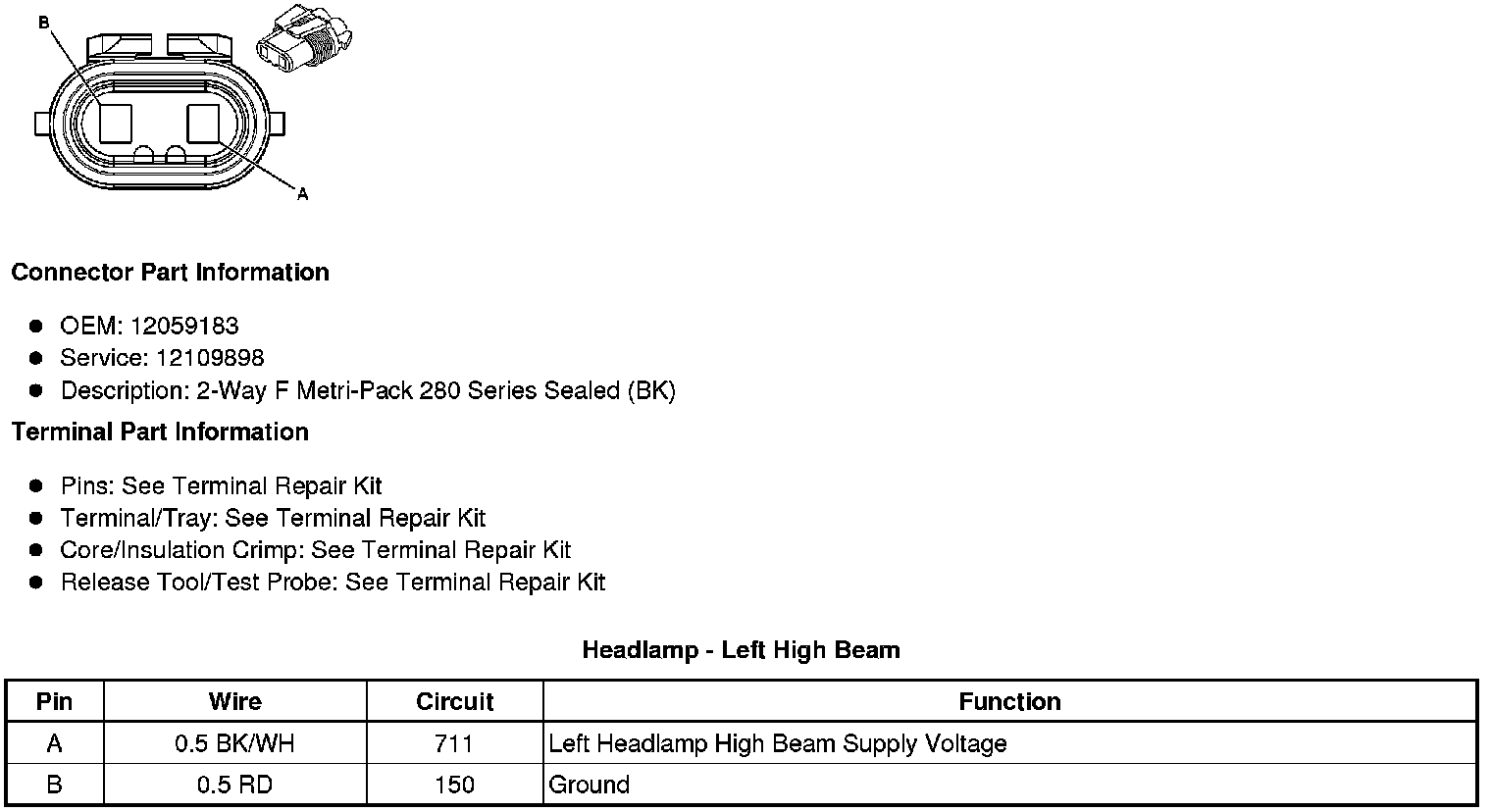

Headlamp - Left High Beam






Headlamp - Left Low Beam

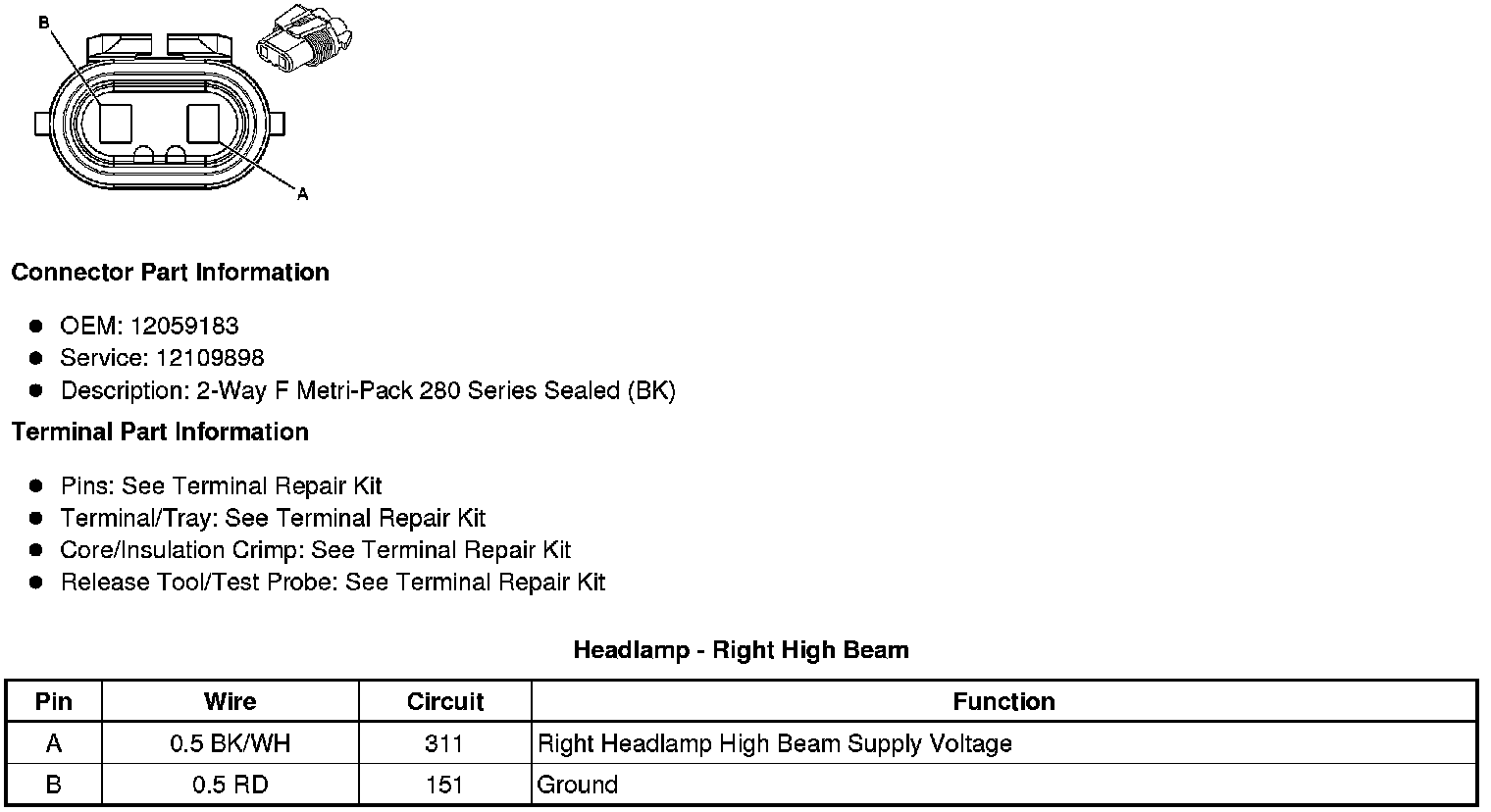

Headlamp - Right High Beam

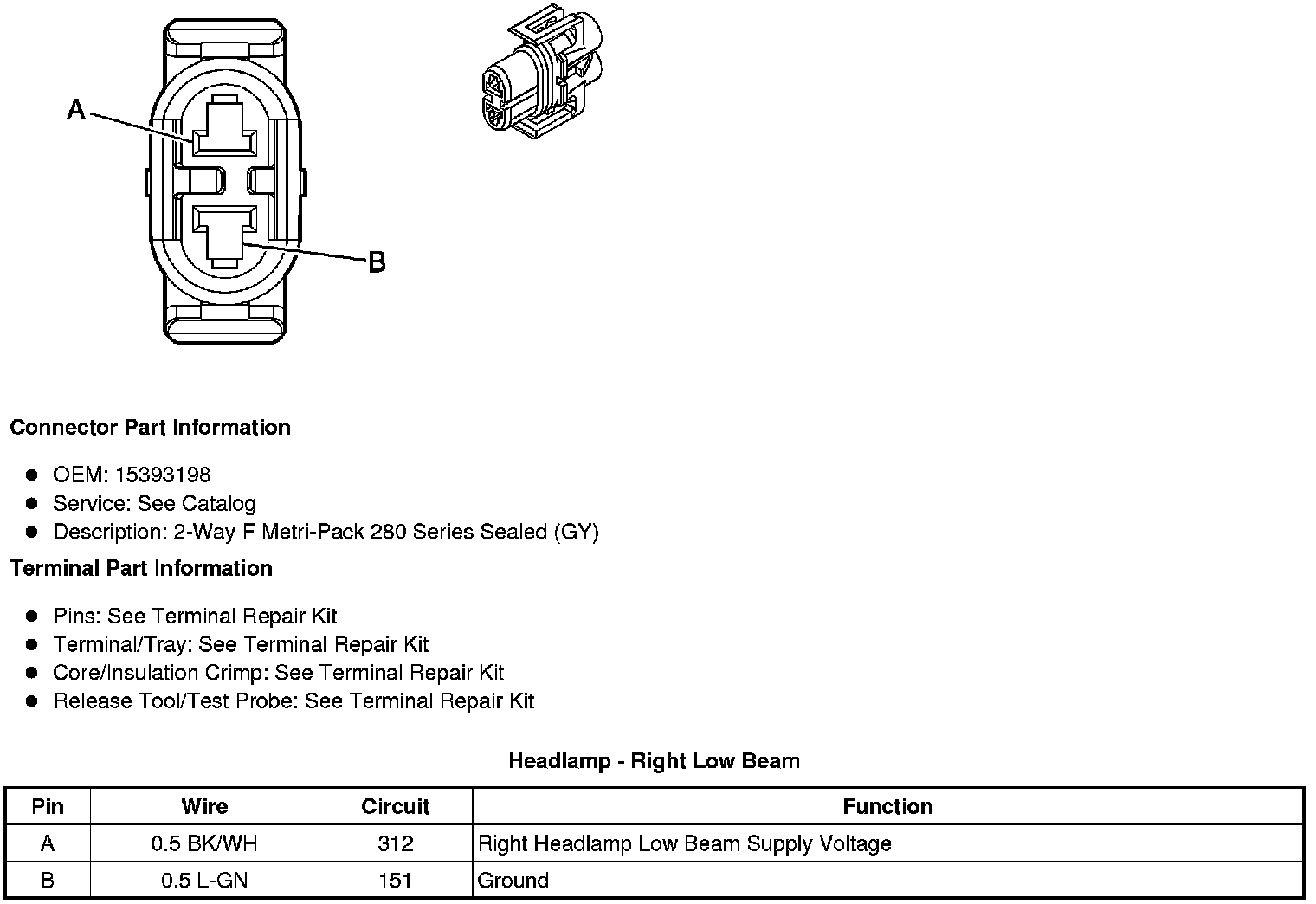

Headlamp - Right Low Beam
