Home >> Saturn >> 2008 >> VUE AWD V6-3.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oxygen Sensor >> Diagrams >> Connector Views

Connector Views



Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1

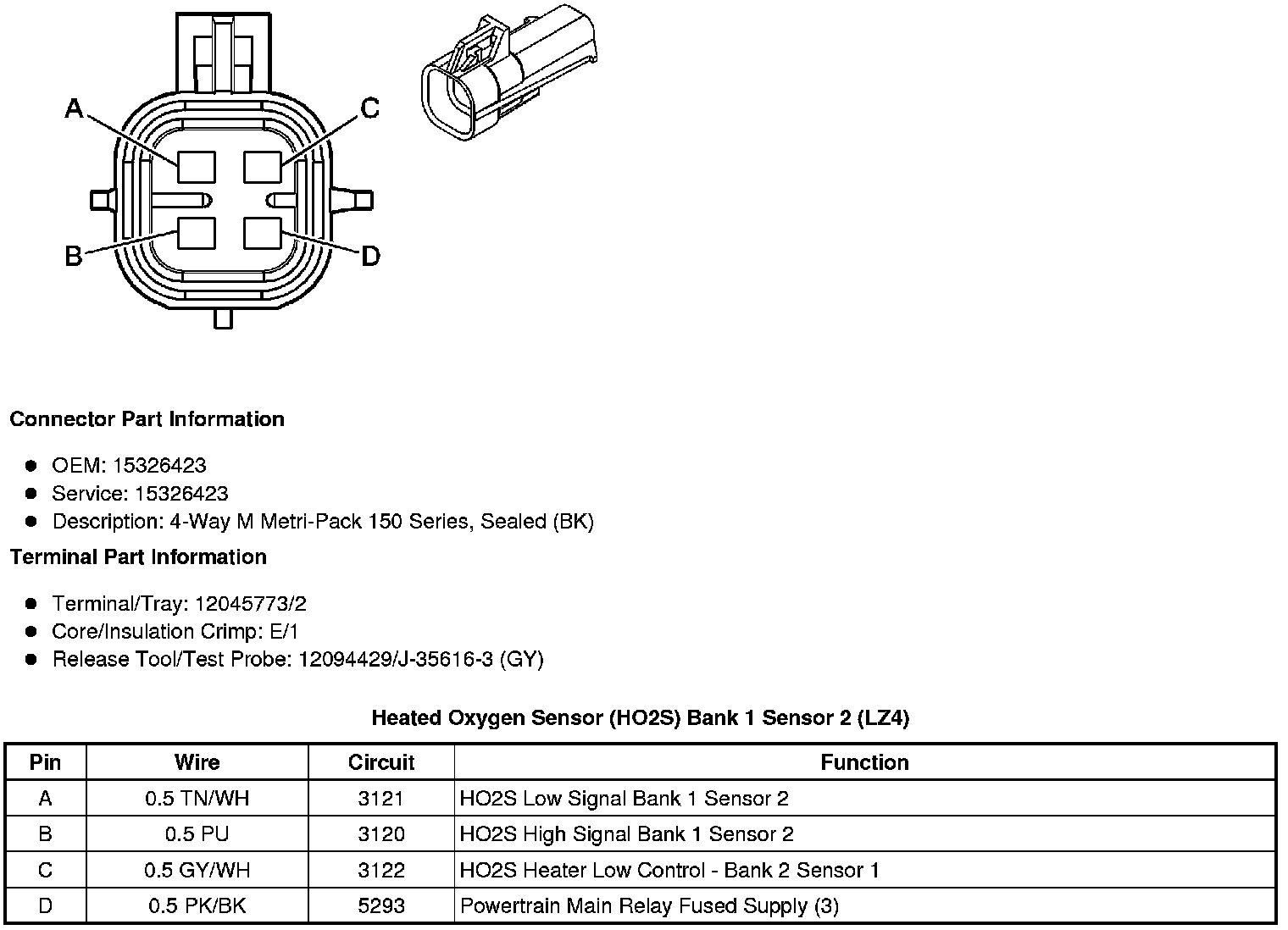

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2

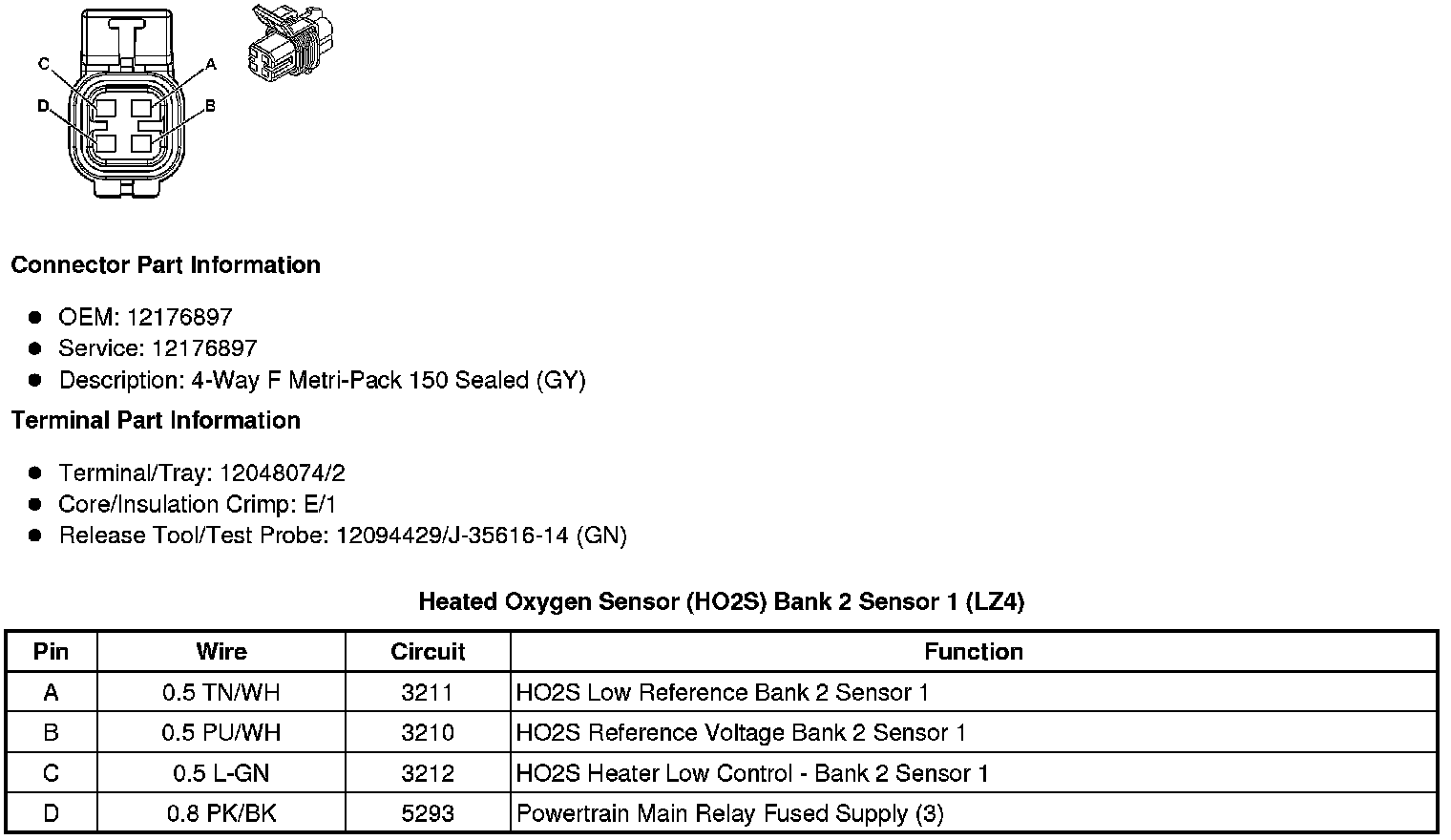

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1

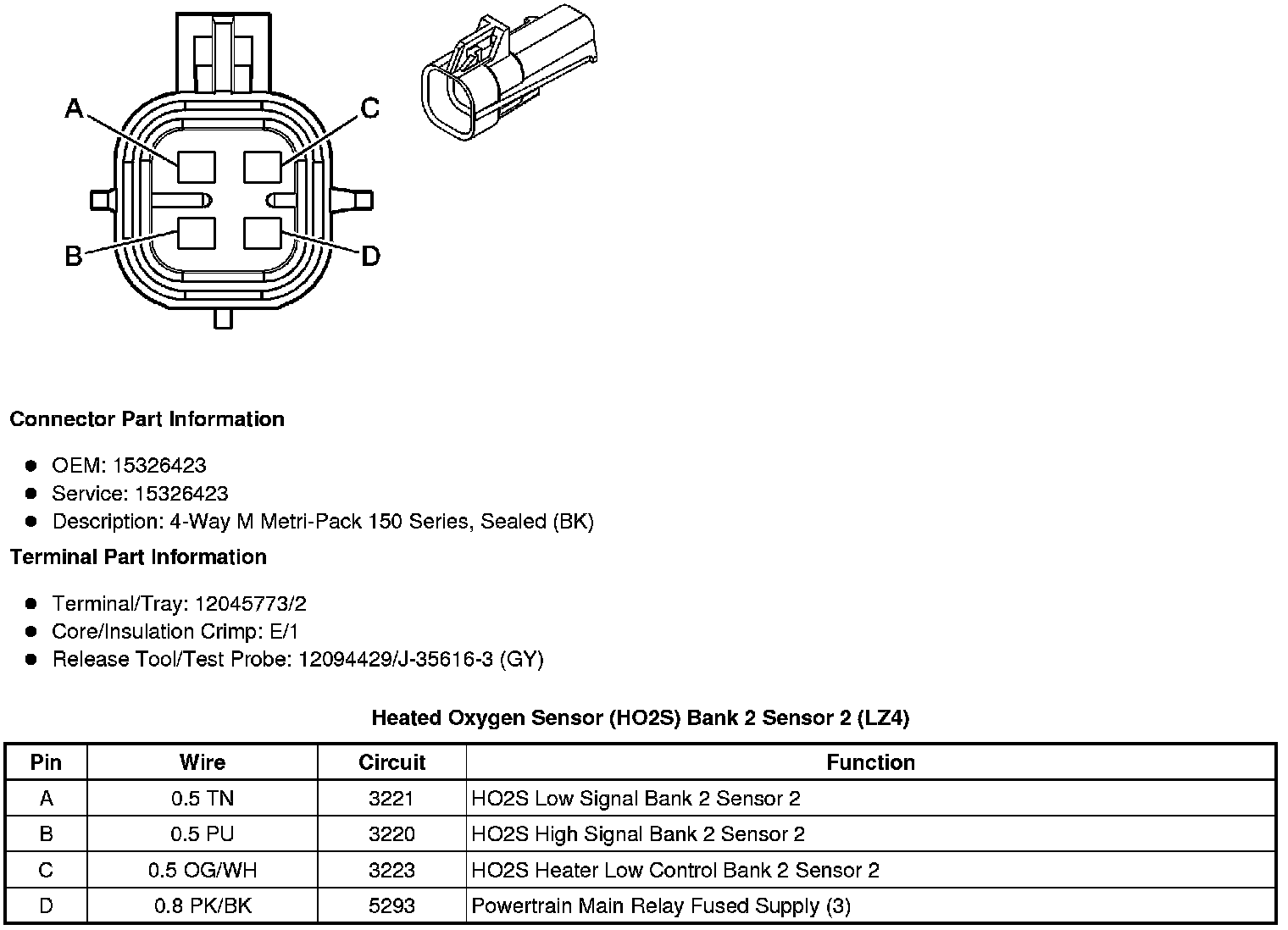

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
