Home >> Saturn >> 2008 >> Sky L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connector End Views >> Windows and Glass

Windows and Glass



Component Connector End Views


Rear Window Defogger Grid X1





Rear Window Defogger Grid X2





Window Motor - Driver





Window Motor - Passenger

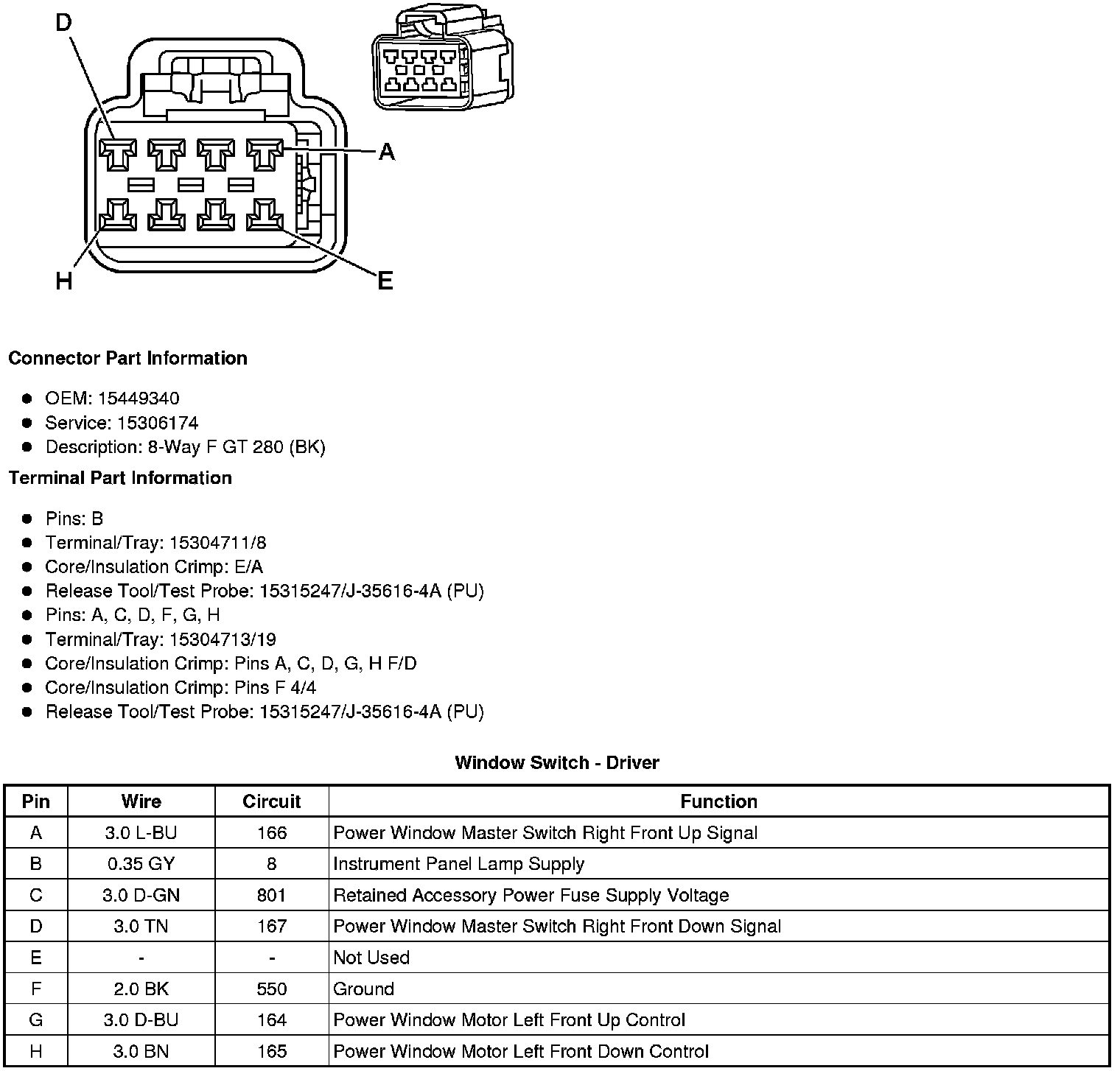

Window Switch - Driver

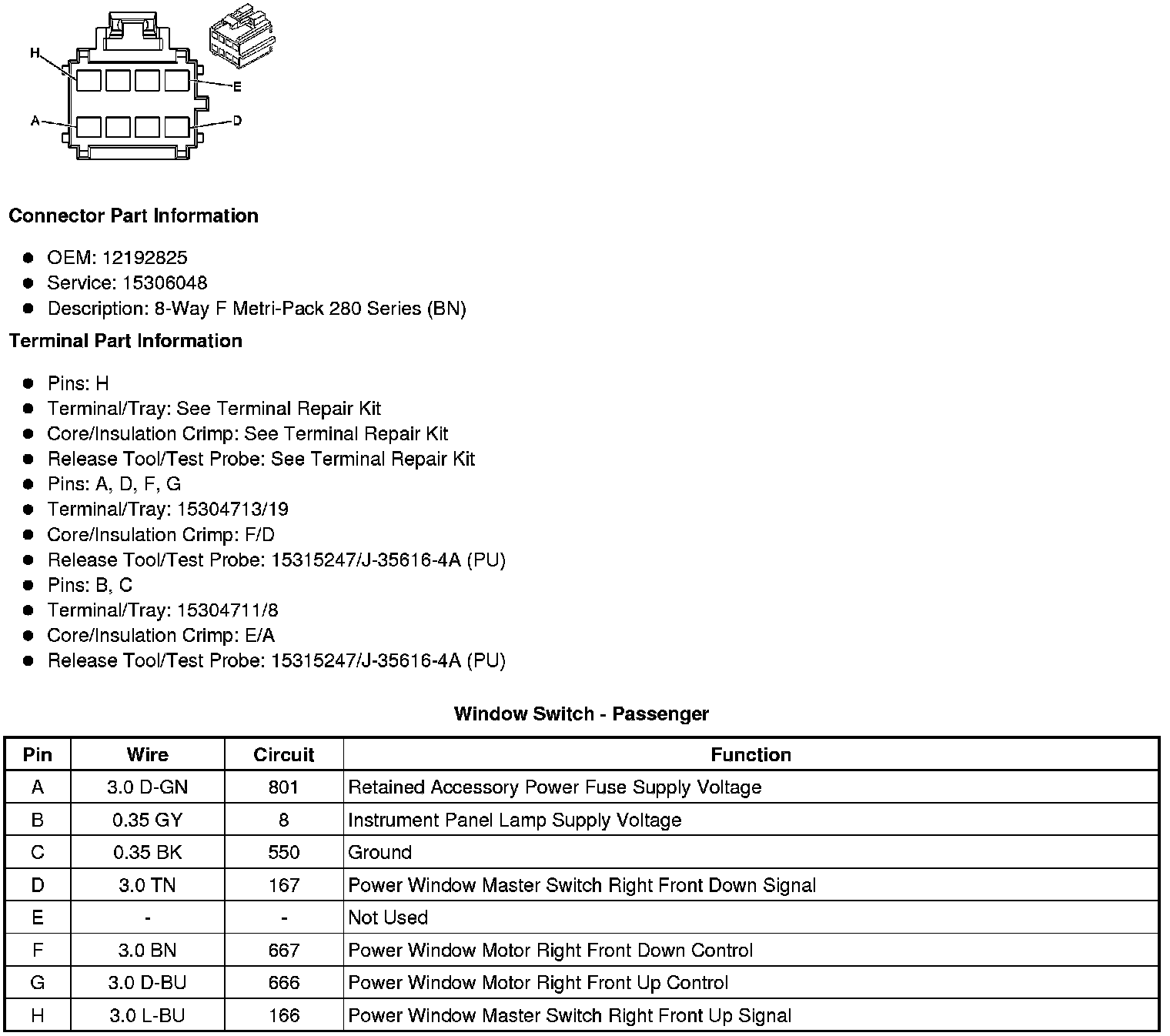

Window Switch - Passenger
