Brakes and Traction Control



Component Connector End Views


Brake Fluid Level Switch





Brake Pedal Position Sensor

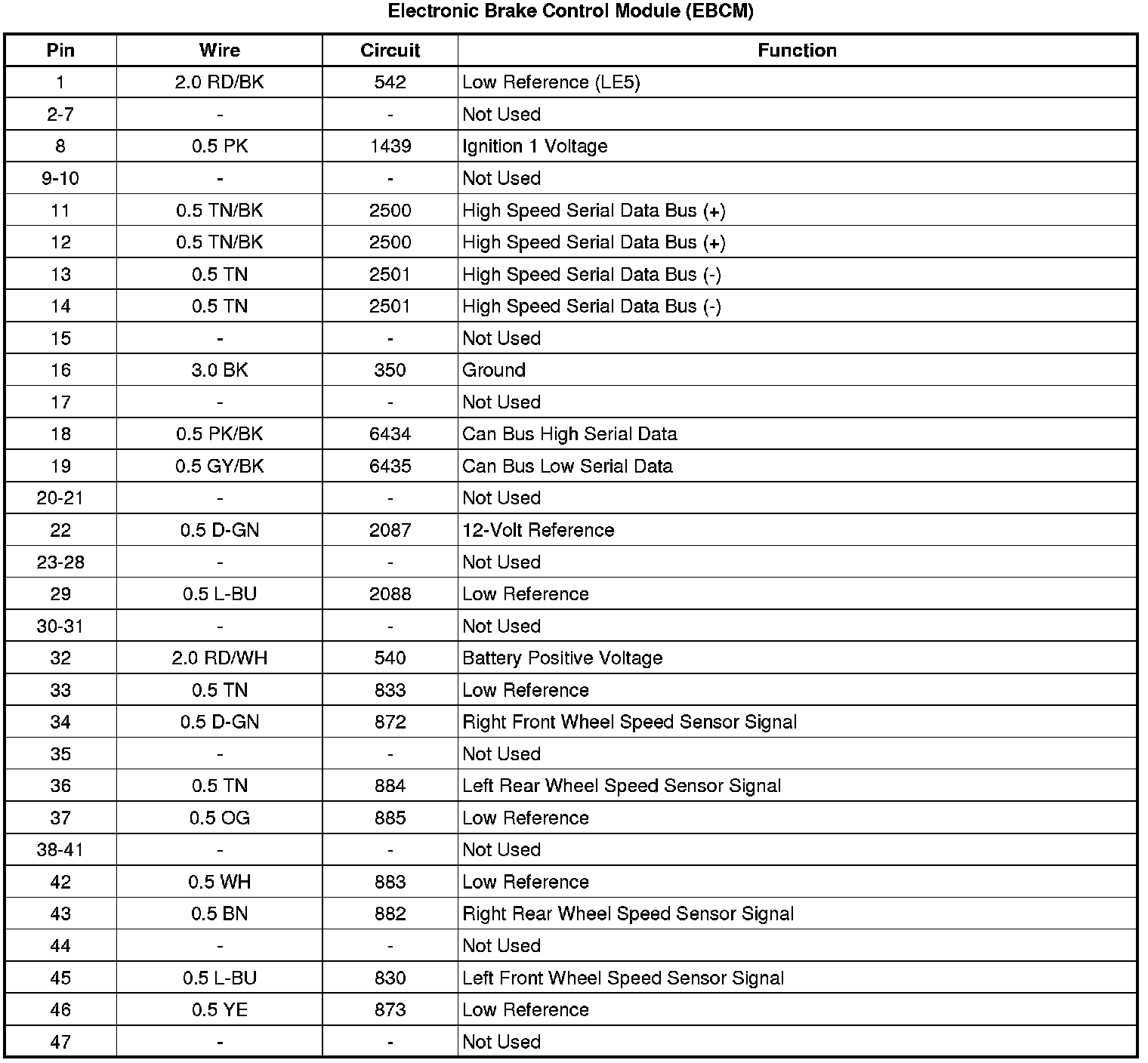

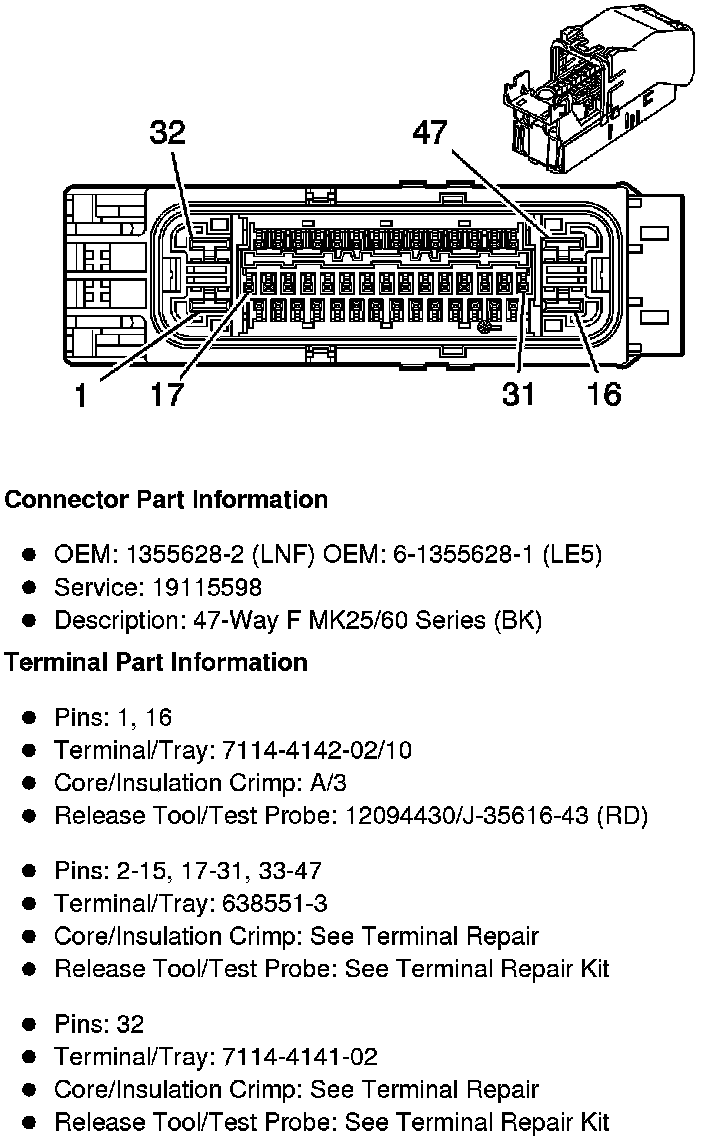

Electronic Brake Control Module (EBCM)








Traction Control Switch (NW9/JL4)





Vehicle Speed Sensor (MA5)

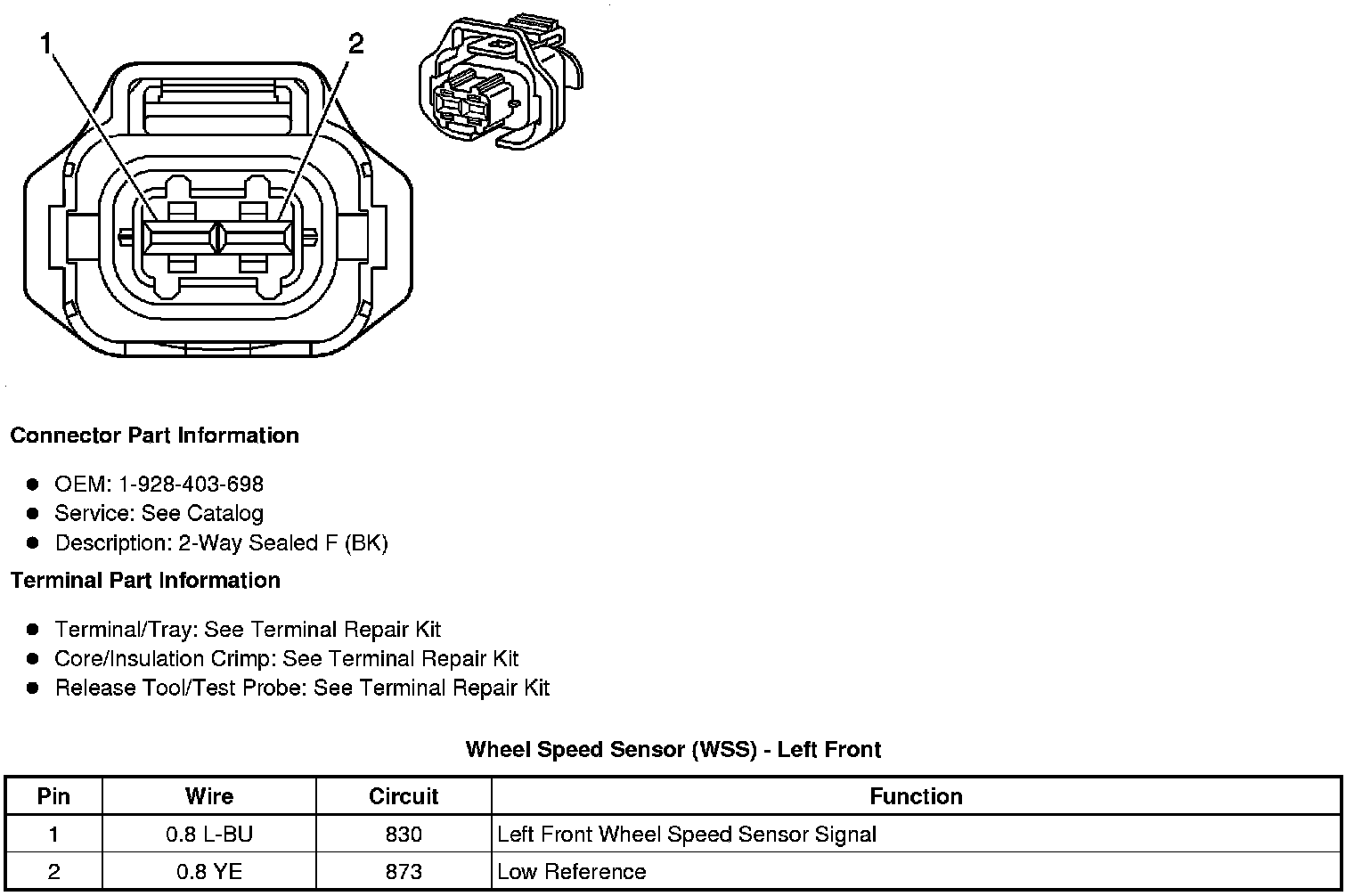

Wheel Speed Sensor (WSS) - Left Front





Wheel Speed Sensor (WSS) - Left Rear





Wheel Speed Sensor (WSS) - Right Front





Wheel Speed Sensor (WSS) - Right Rear

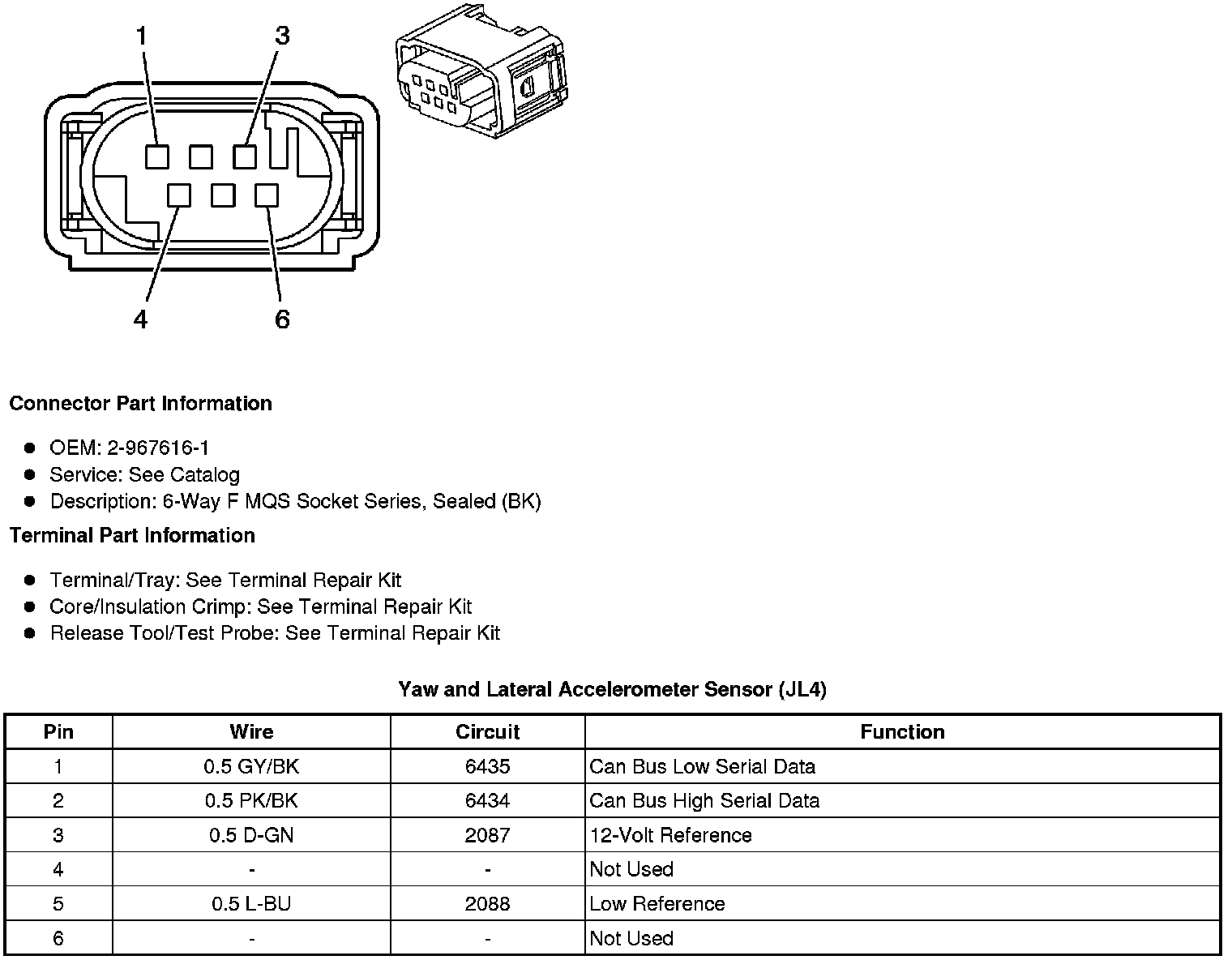

Yaw and Lateral Accelerometer Sensor (JL4)





Park Brake Switch
