Oil Pressure Sensor: Diagrams



Component Connector End Views

Engine Oil Pressure (EOP) Switch (LZ4)






Engine Oil Pressure (EOP) Switch (LAT/LE5)

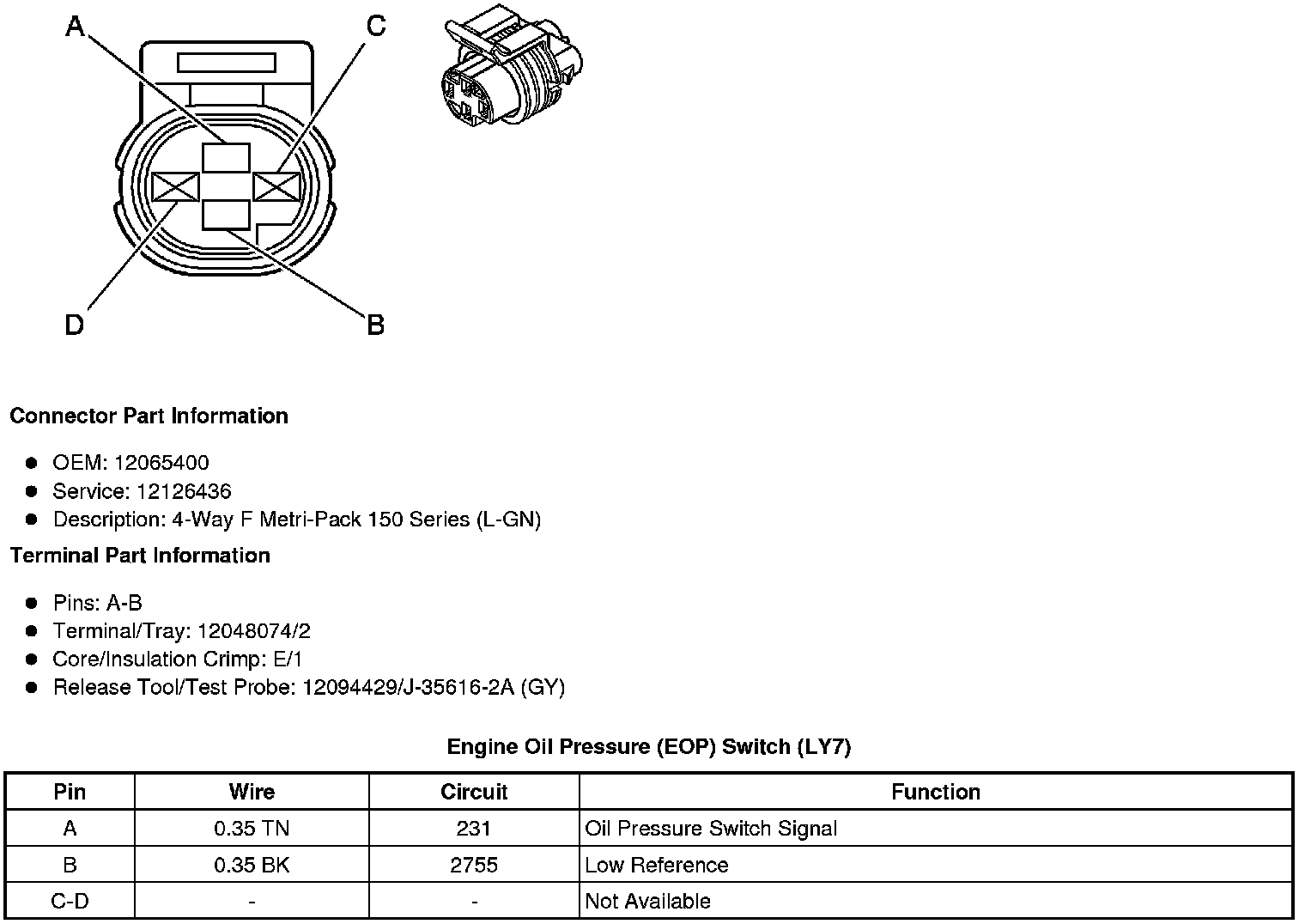

Engine Oil Pressure (EOP) Switch (LY7)
