Connector Views

Component Connector End Views

Crankshaft Position (CKP) Sensor (LAT/LE5)

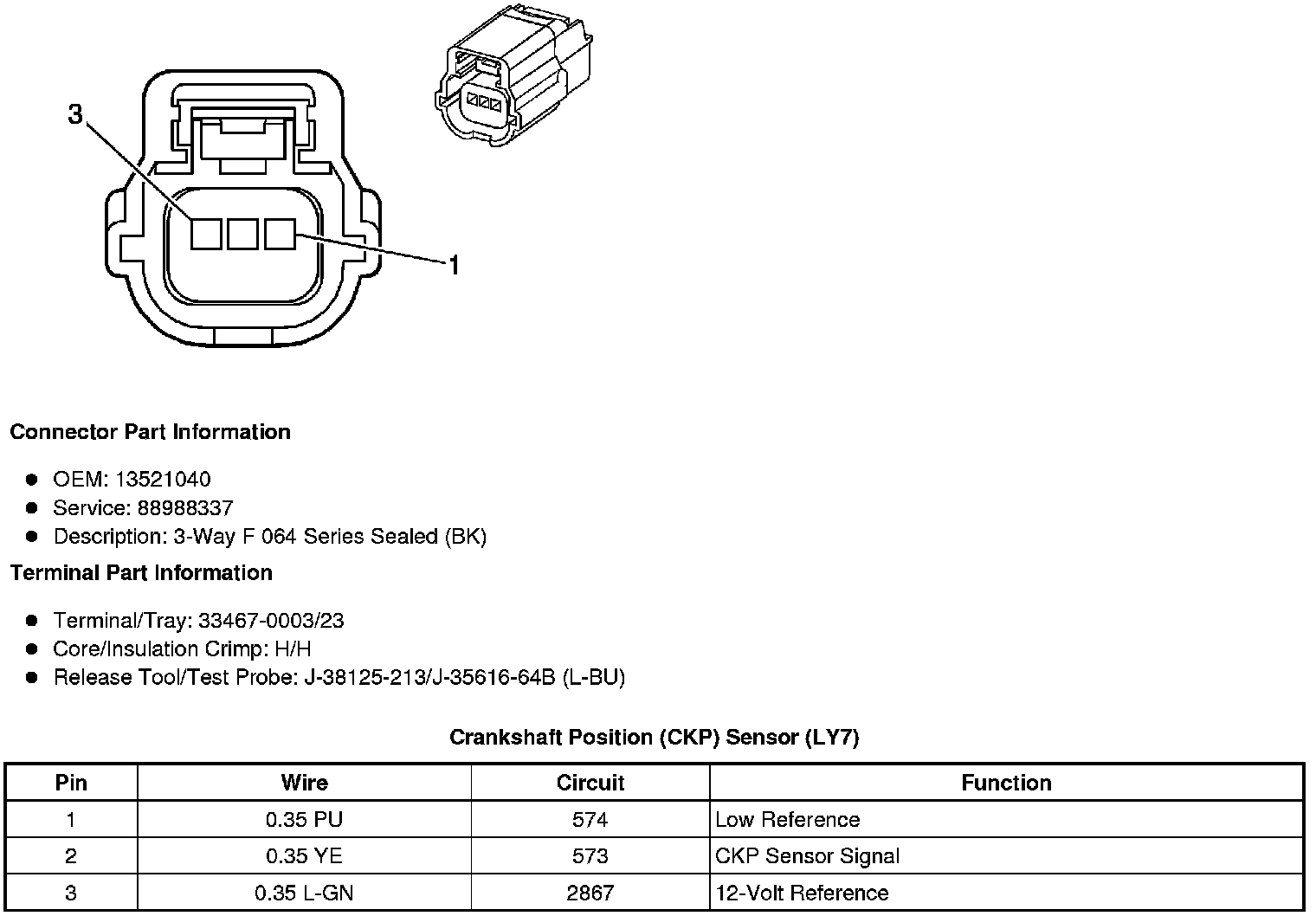

Crankshaft Position (CKP) Sensor (LY7)

Crankshaft Position (CKP) Sensor (LZ4)
