Power Window Switch



Component Connector End Views

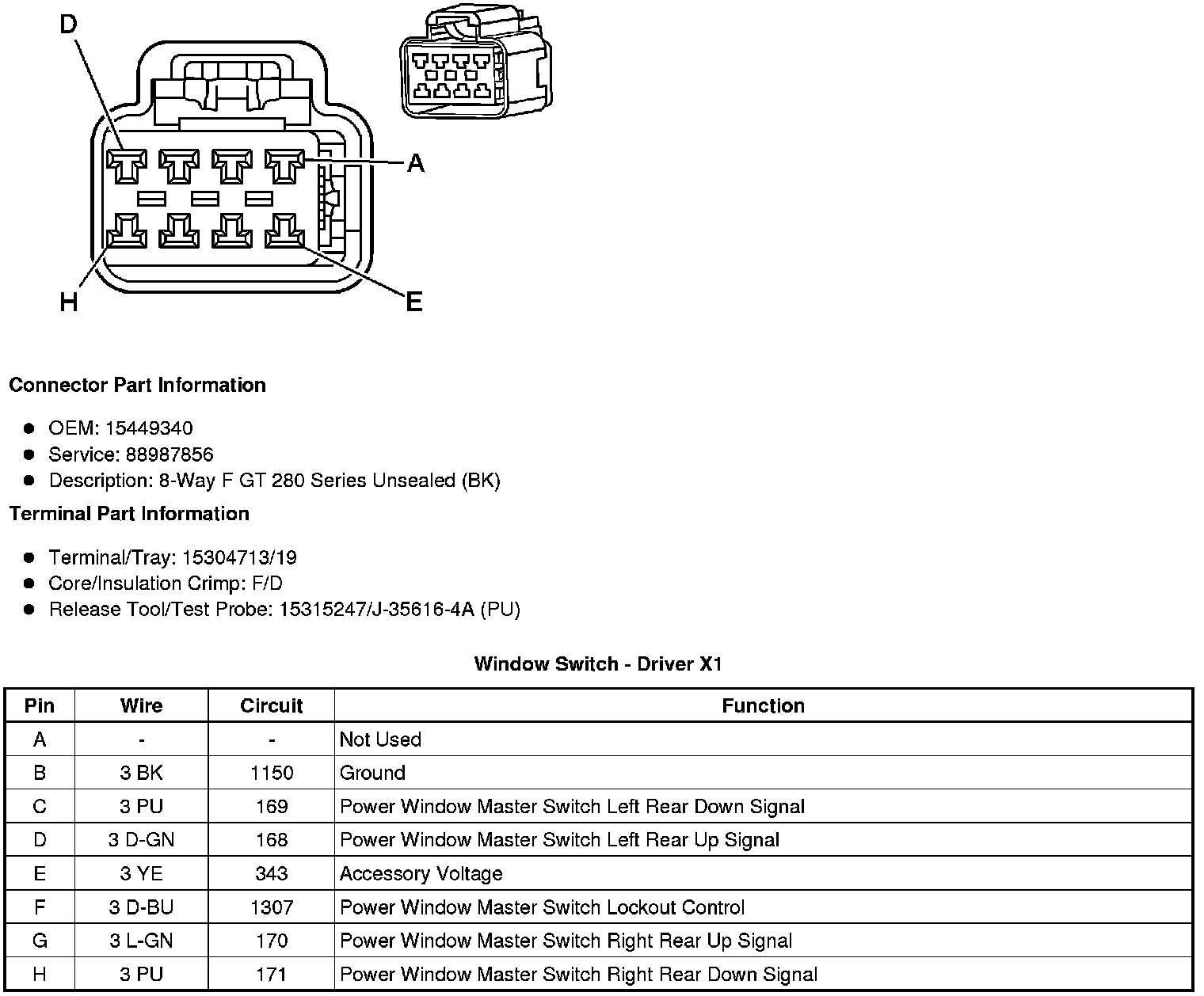

Window Switch - Driver X1

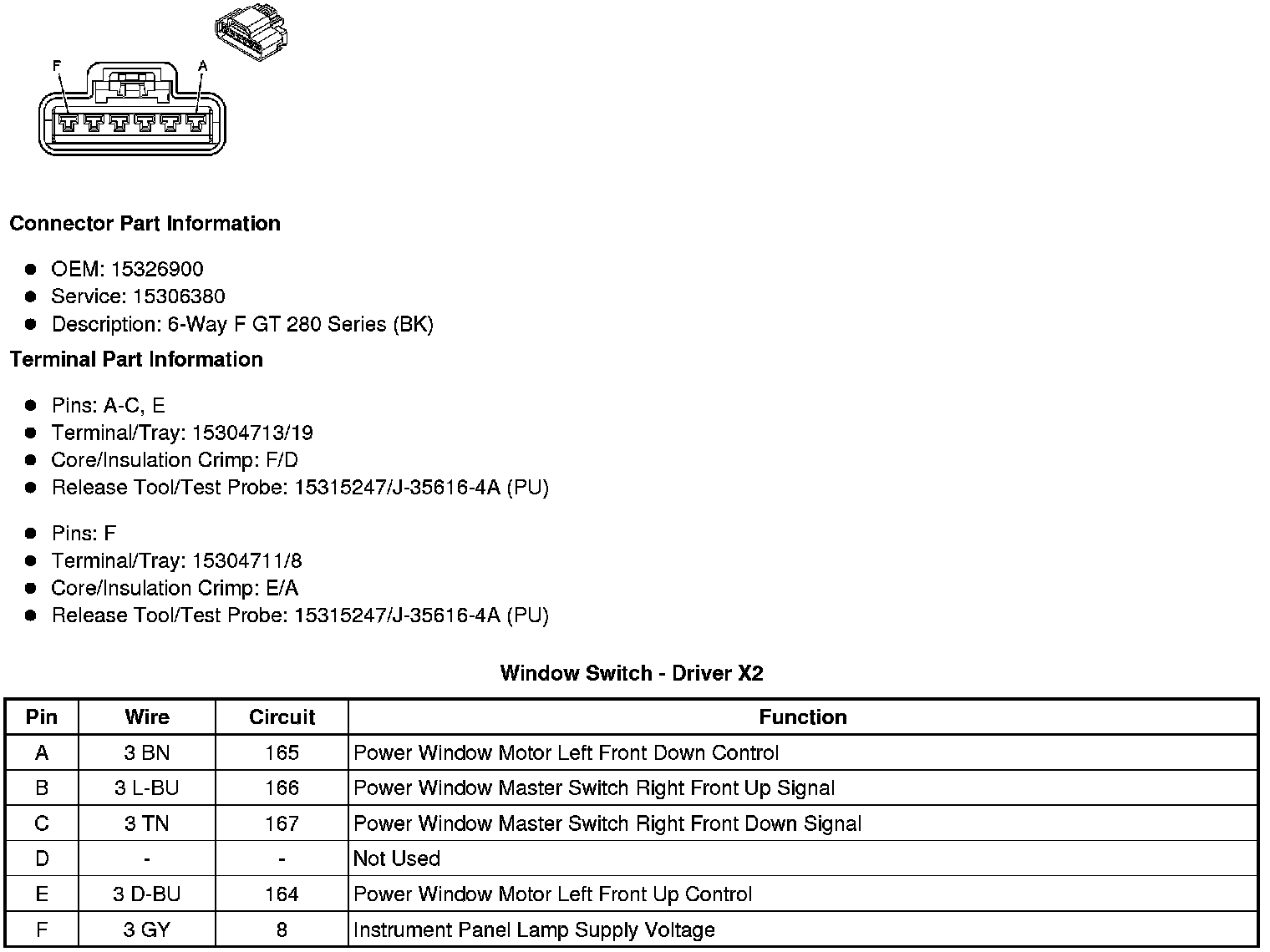

Window Switch - Driver X2






Window Switch - Left Rear

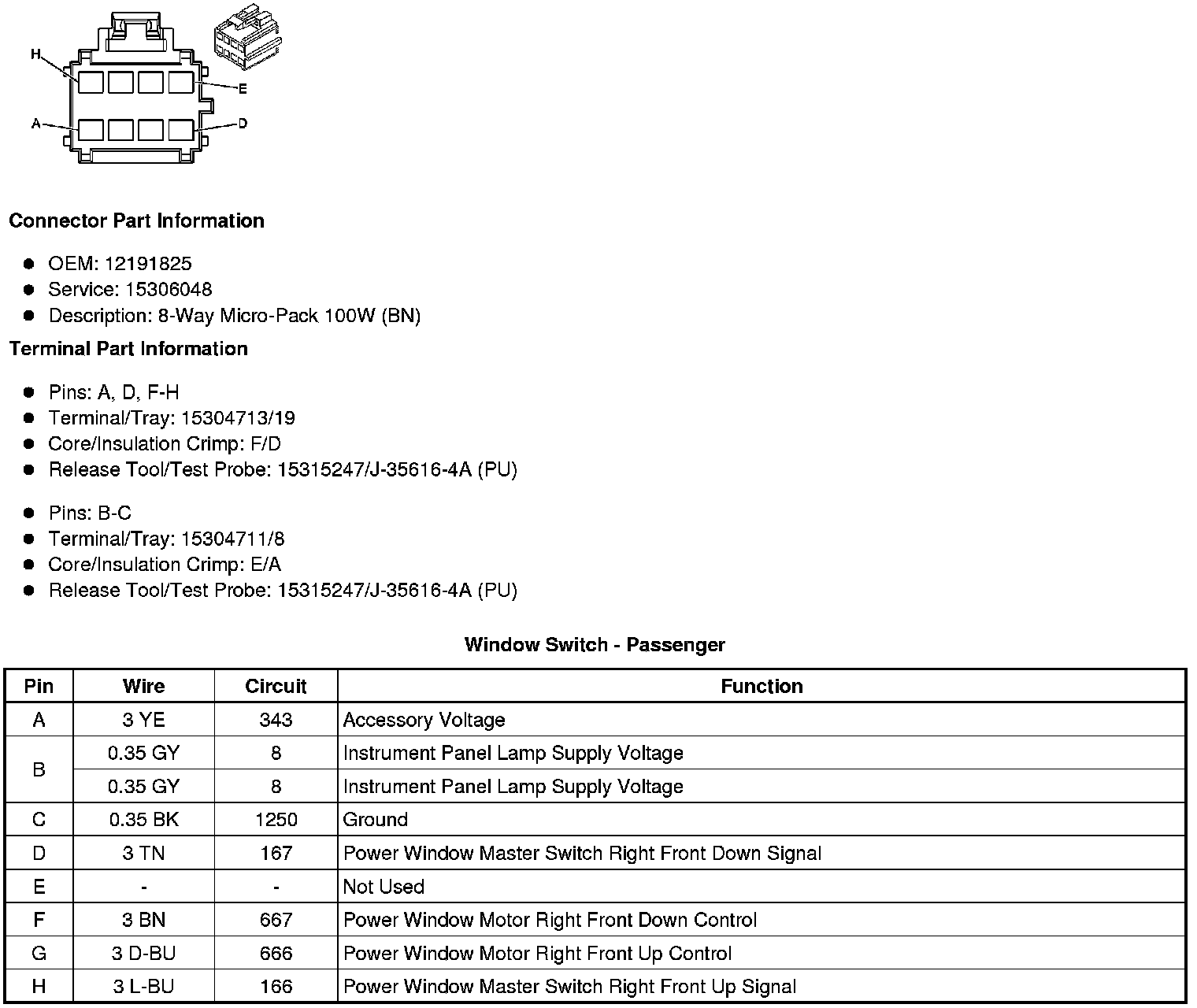

Window Switch - Passenger

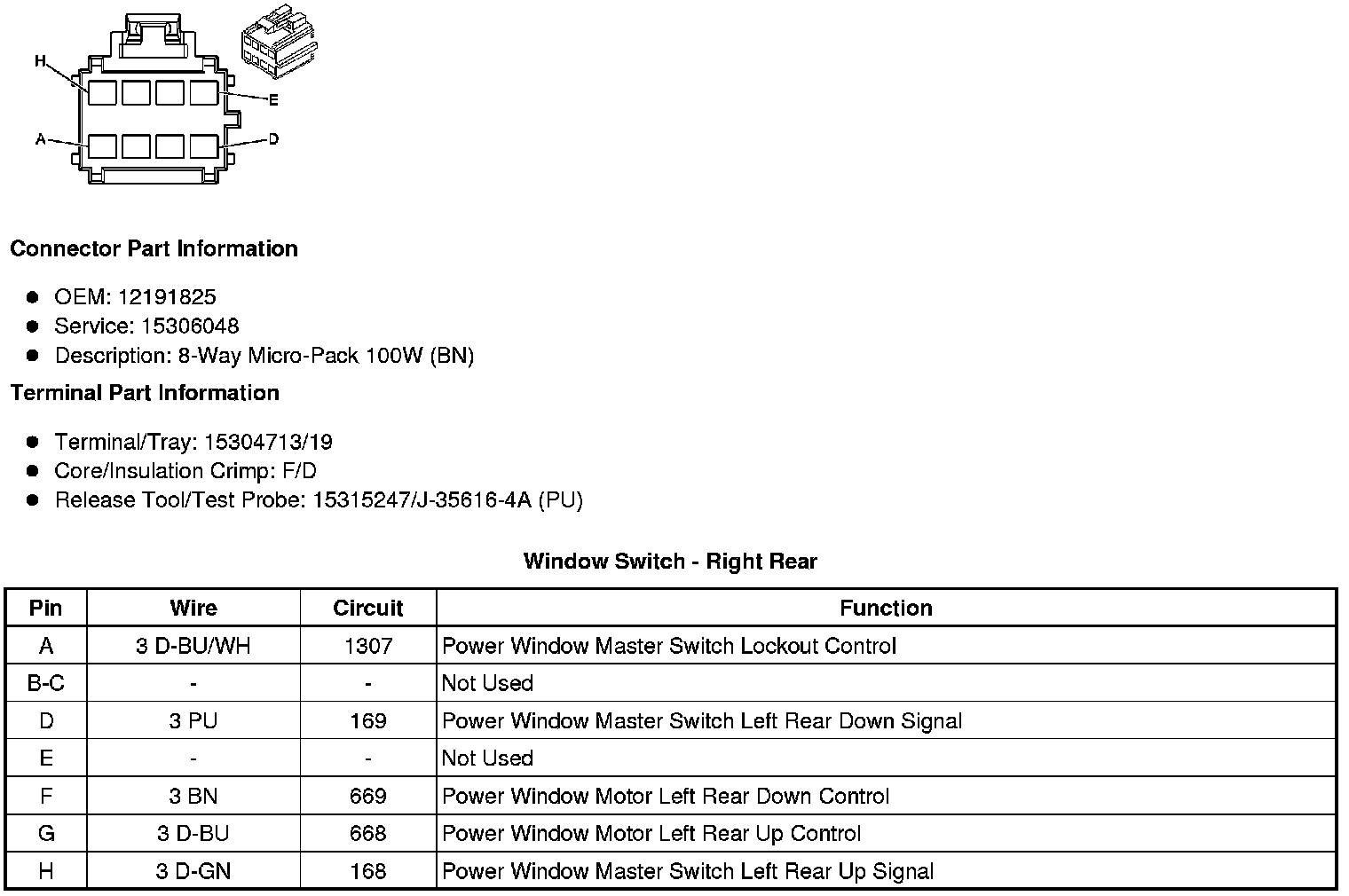

Window Switch - Right Rear
