Power Door Lock Switch



Component Connector End Views

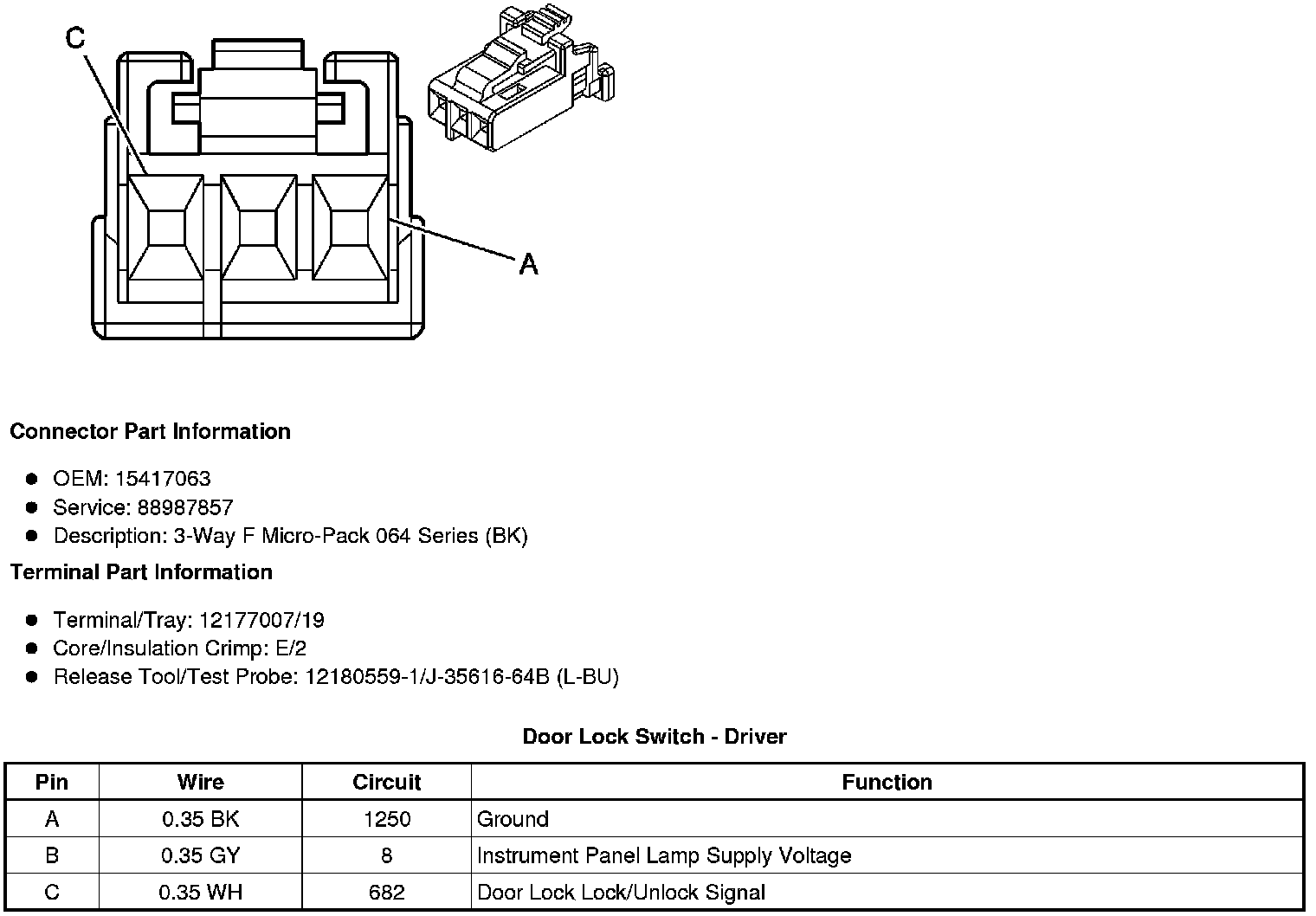

Door Lock Switch - Driver

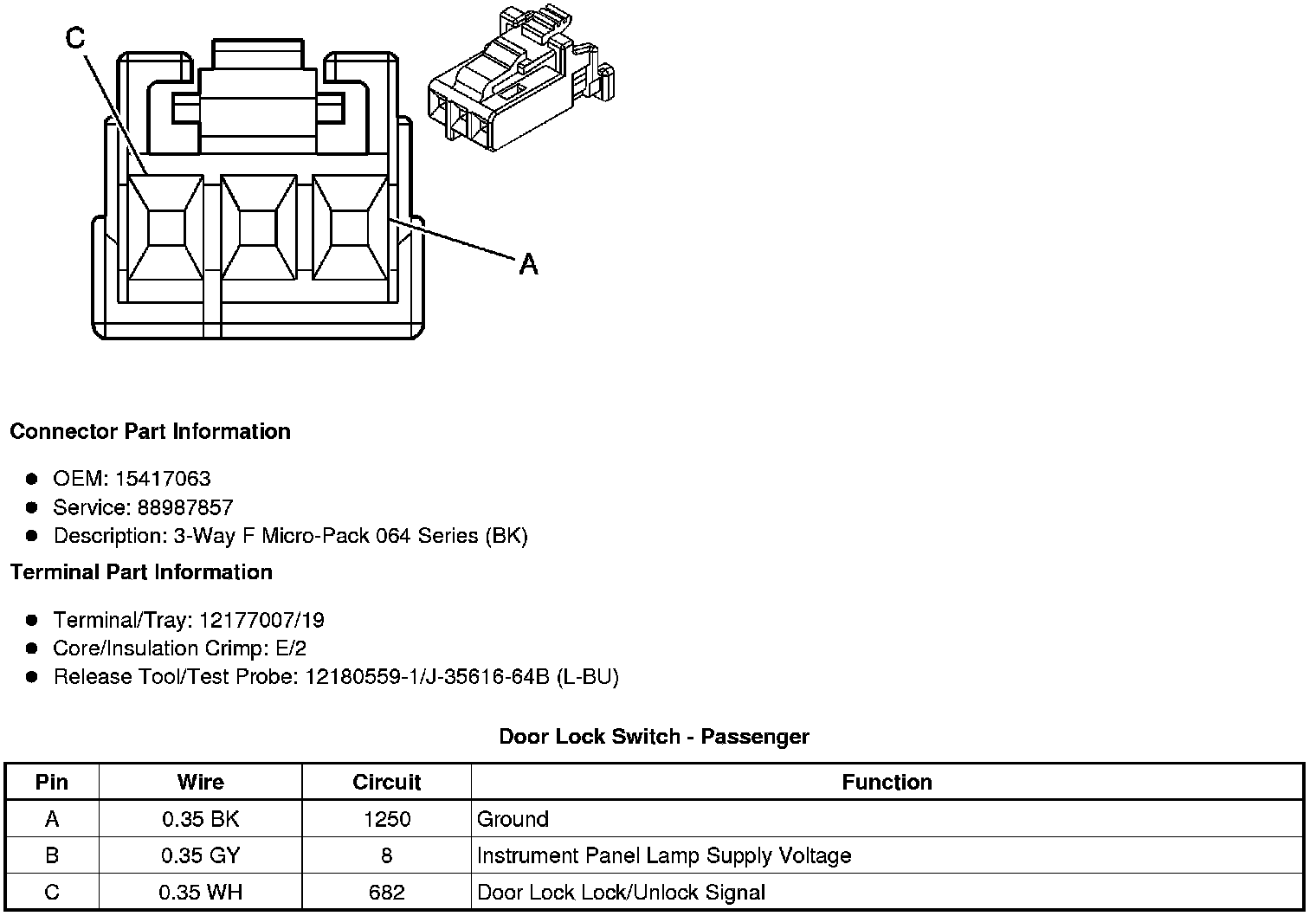

Door Lock Switch - Passenger
