Impact Sensor



Component Connector End Views

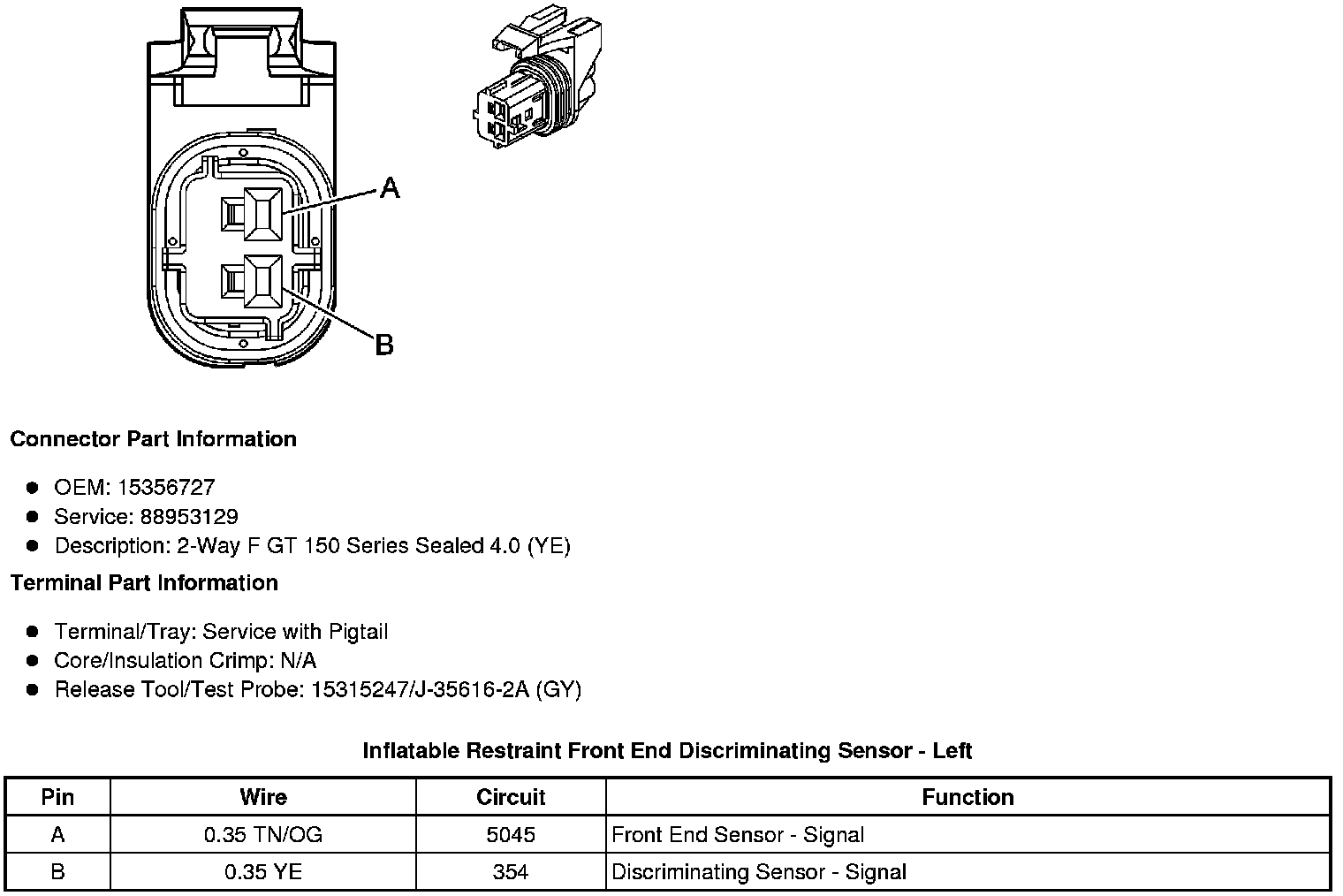

Inflatable Restraint Front End Discriminating Sensor - Left

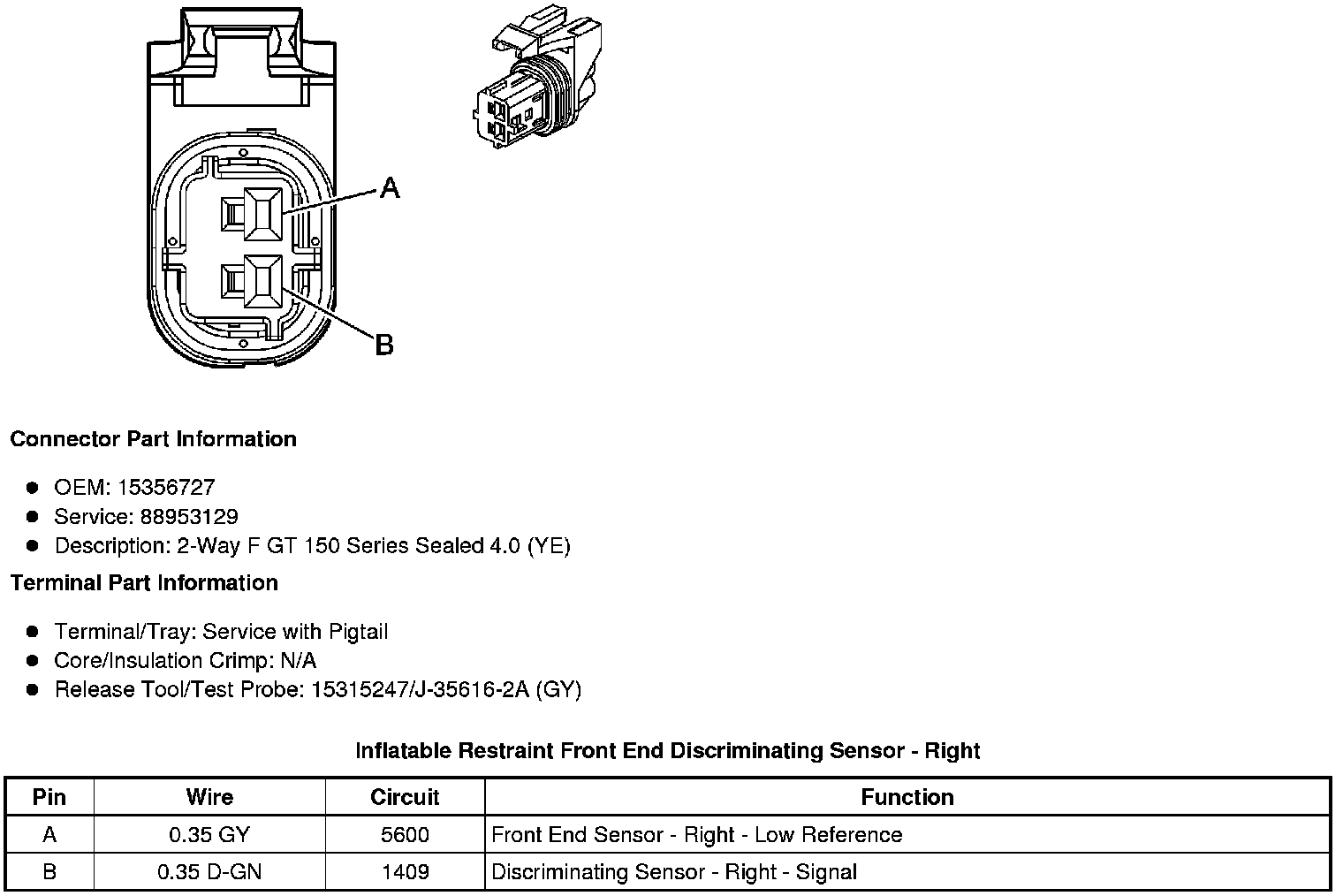

Inflatable Restraint Front End Discriminating Sensor - Right

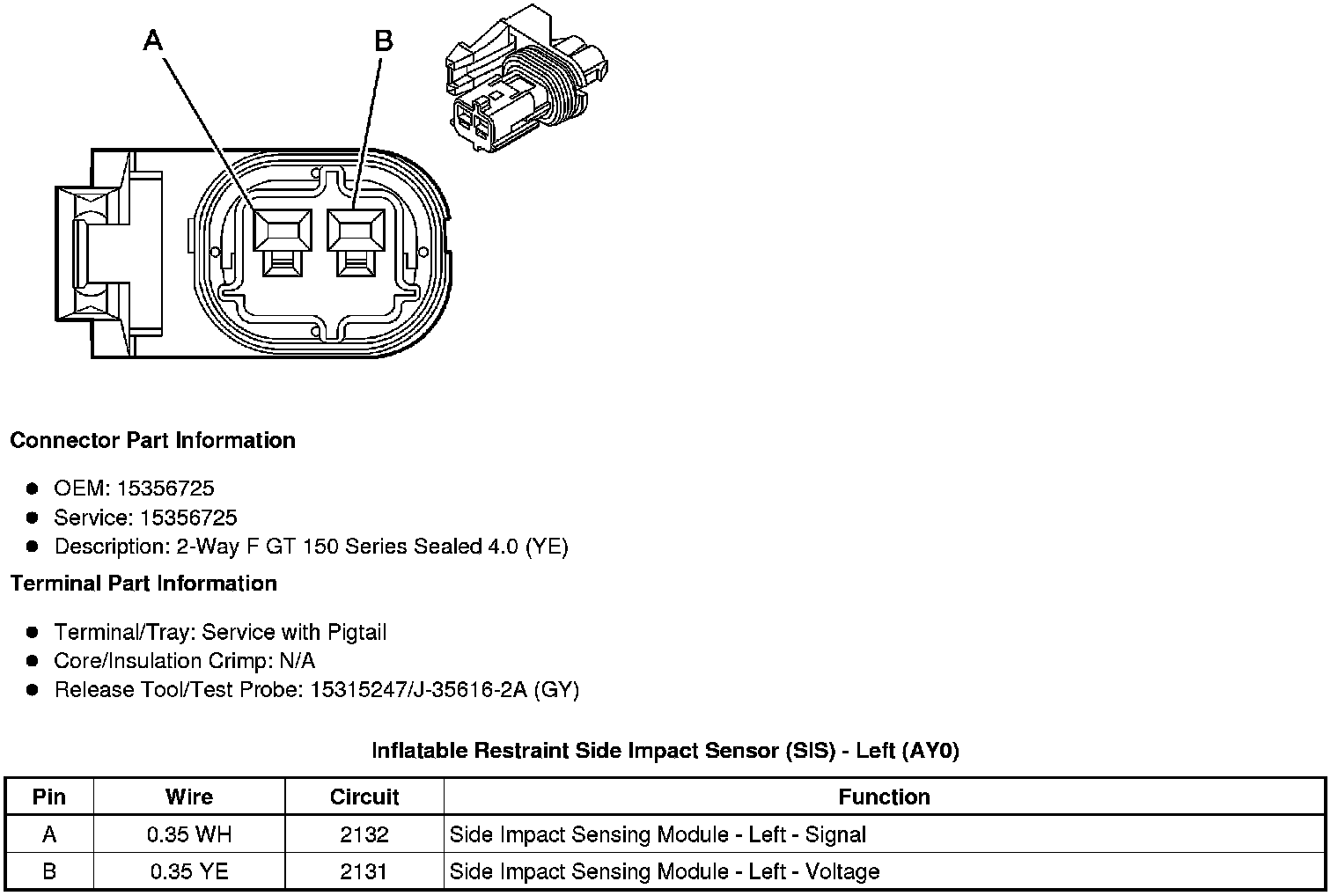

Inflatable Restraint Side Impact Sensor (SIS) - Left (AY0)

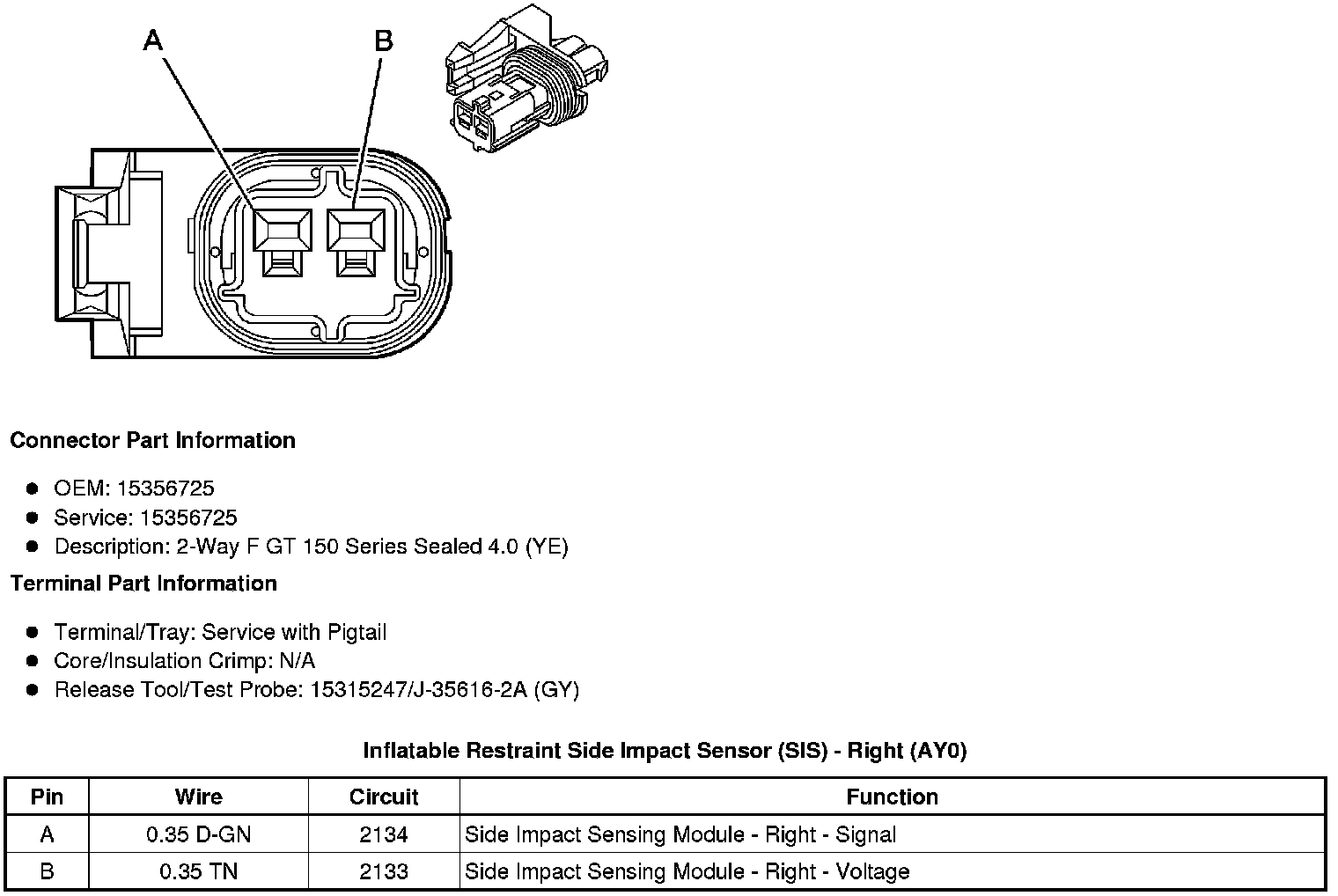

Inflatable Restraint Side Impact Sensor (SIS) - Right (AY0)
