Combination Switch
Combination Switch
Component Connector End Views
Turn Signal/Multifunction Switch X1

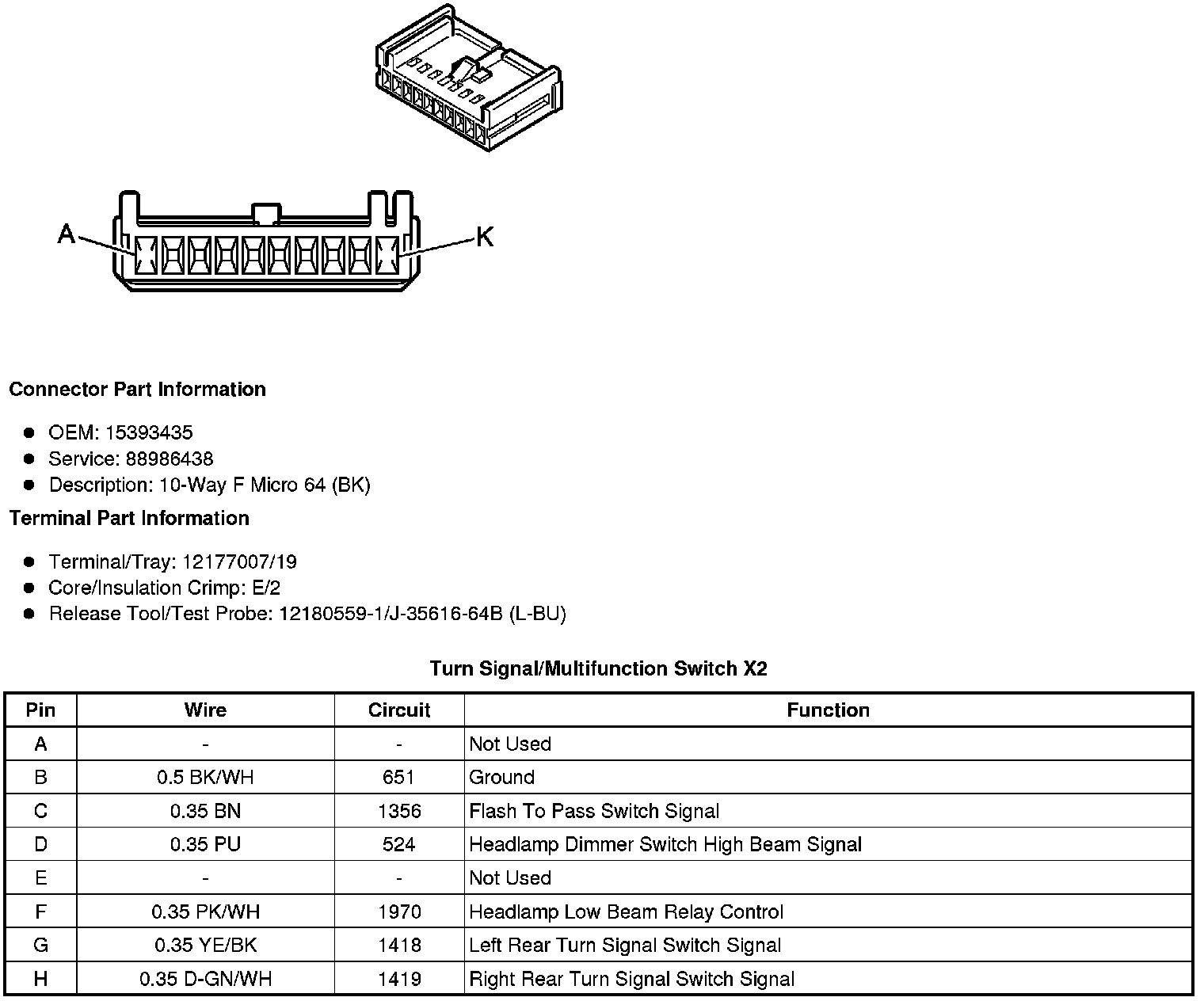

Turn Signal/Multifunction Switch X2
