Refrigerant Pressure Sensor / Switch: Service and Repair

Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement

Removal Procedure

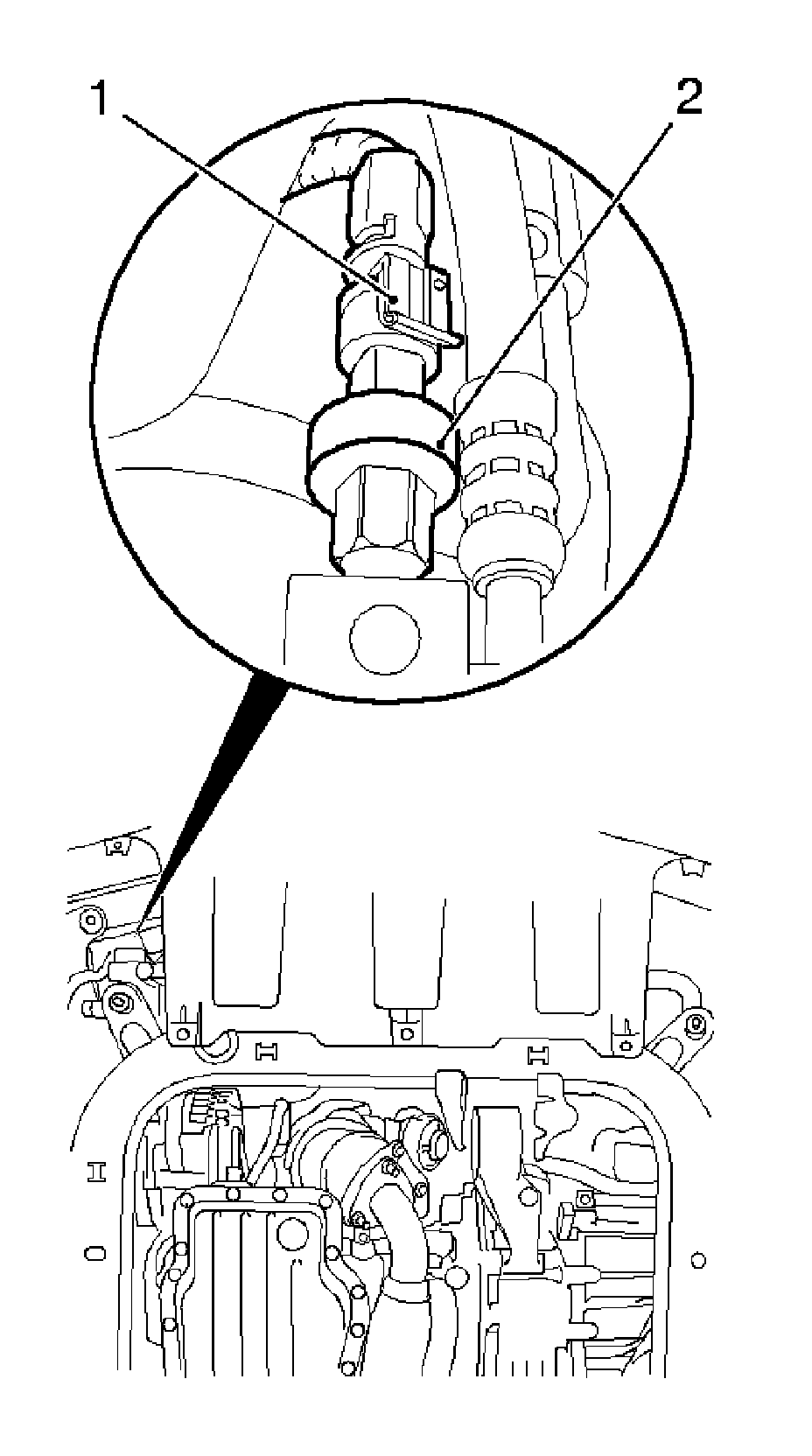

1. Disconnect the wiring harness plug for pressure sensor (1).
Release and disconnect the wiring harness plug.
2. Remove the pressure sensor (2).



Installation Procedure

1. Install the pressure sensor.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Replace the seal ring.

Tighten the pressure sensor to 10 N.m (89 lb in).

3. Connect the wiring harness plug.
