Body Control Systems



Body Control System Schematics

Power, Ground and Serial Data

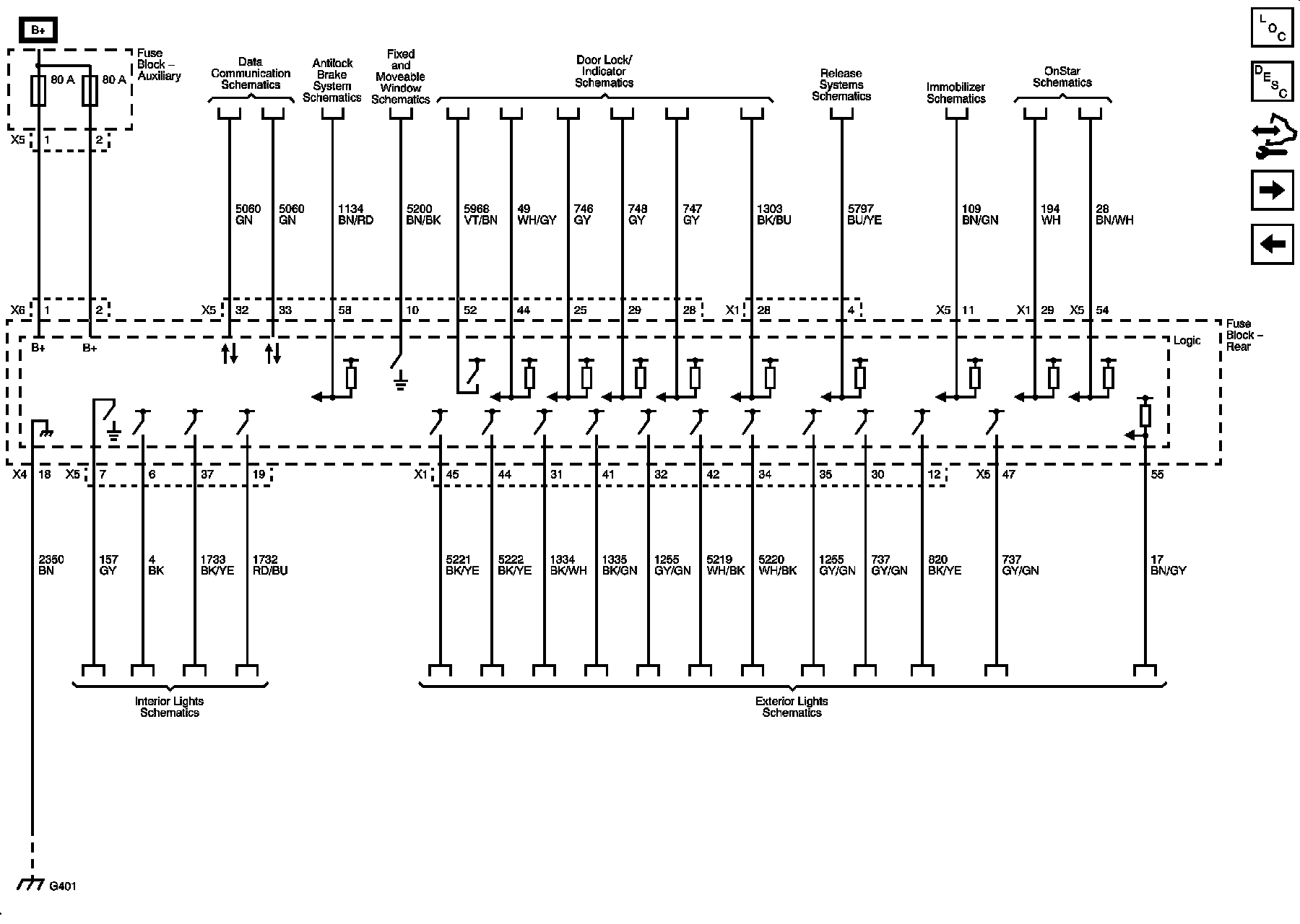

Controlled/Monitored Subsystem References 1 of 2

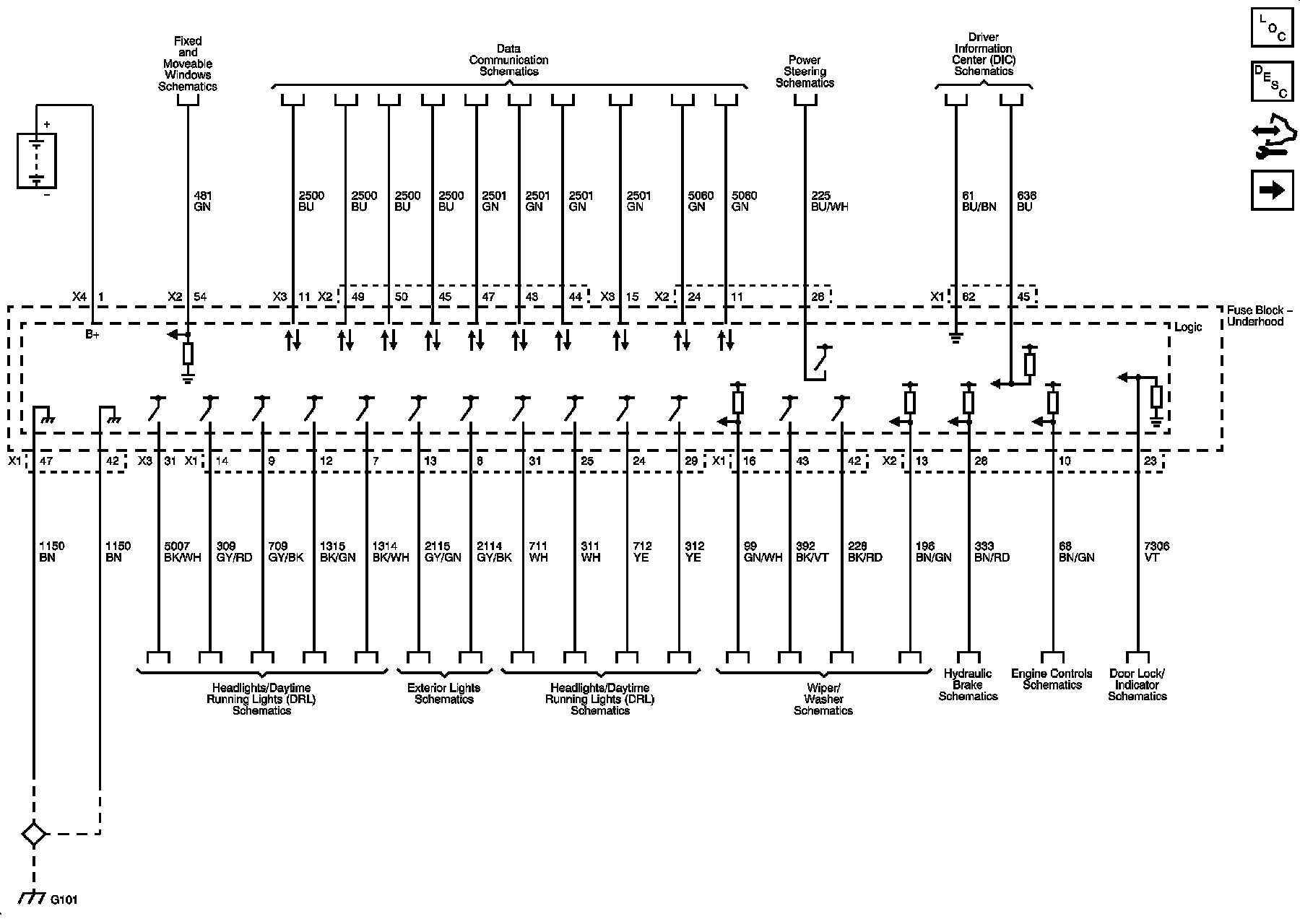

Controlled/Monitored Subsystem References 2 of 2
