Home >> Saturn >> 2008 >> Astra L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Yaw Rate Sensor

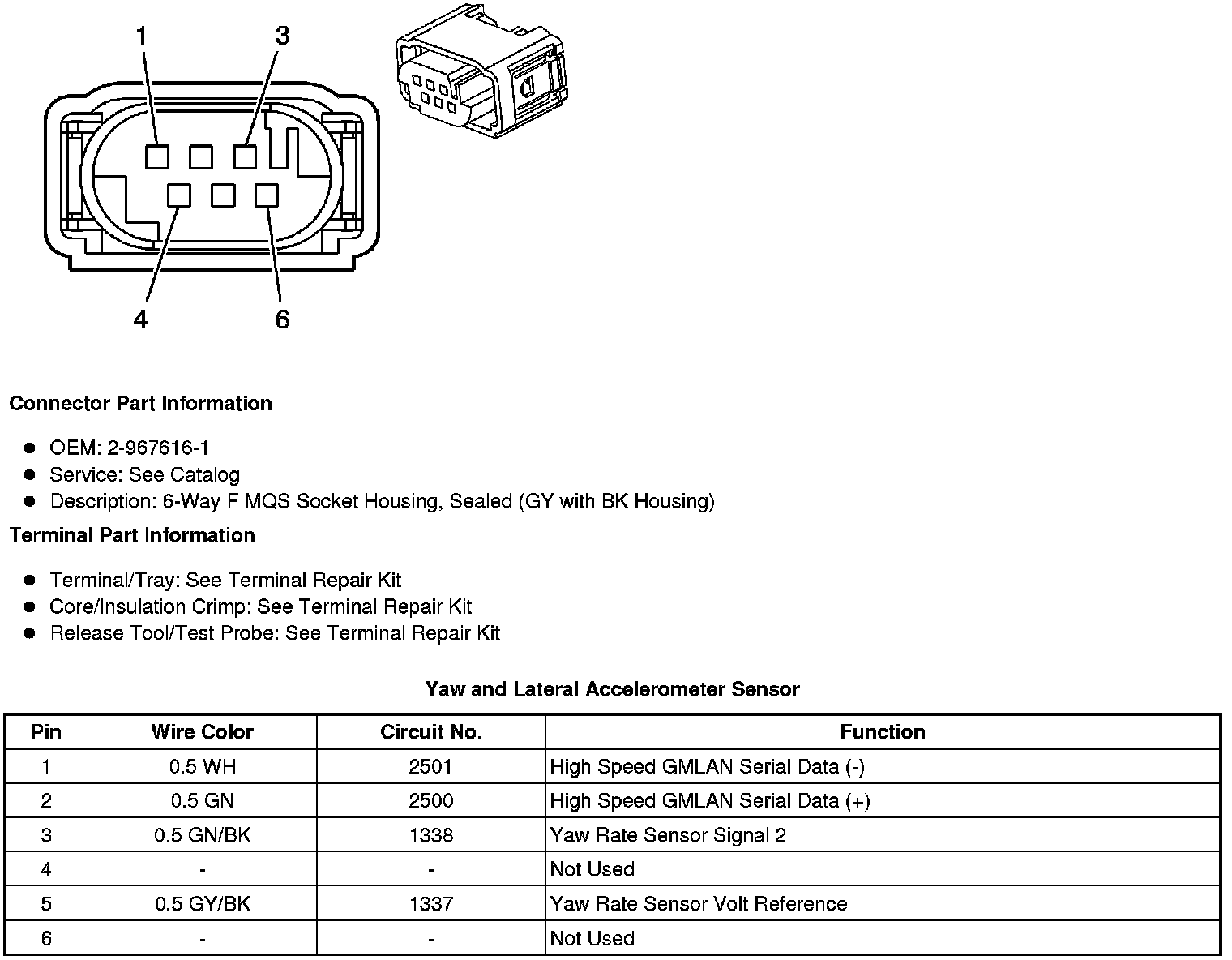

Yaw Rate Sensor



Component Connector End Views

Yaw and Lateral Accelerometer Sensor
