Wheel Speed Sensor



Component Connector End Views

Wheel Speed Sensor (WSS) - Left Front






Wheel Speed Sensor (WSS) - Left Rear






Wheel Speed Sensor (WSS) - Right Front

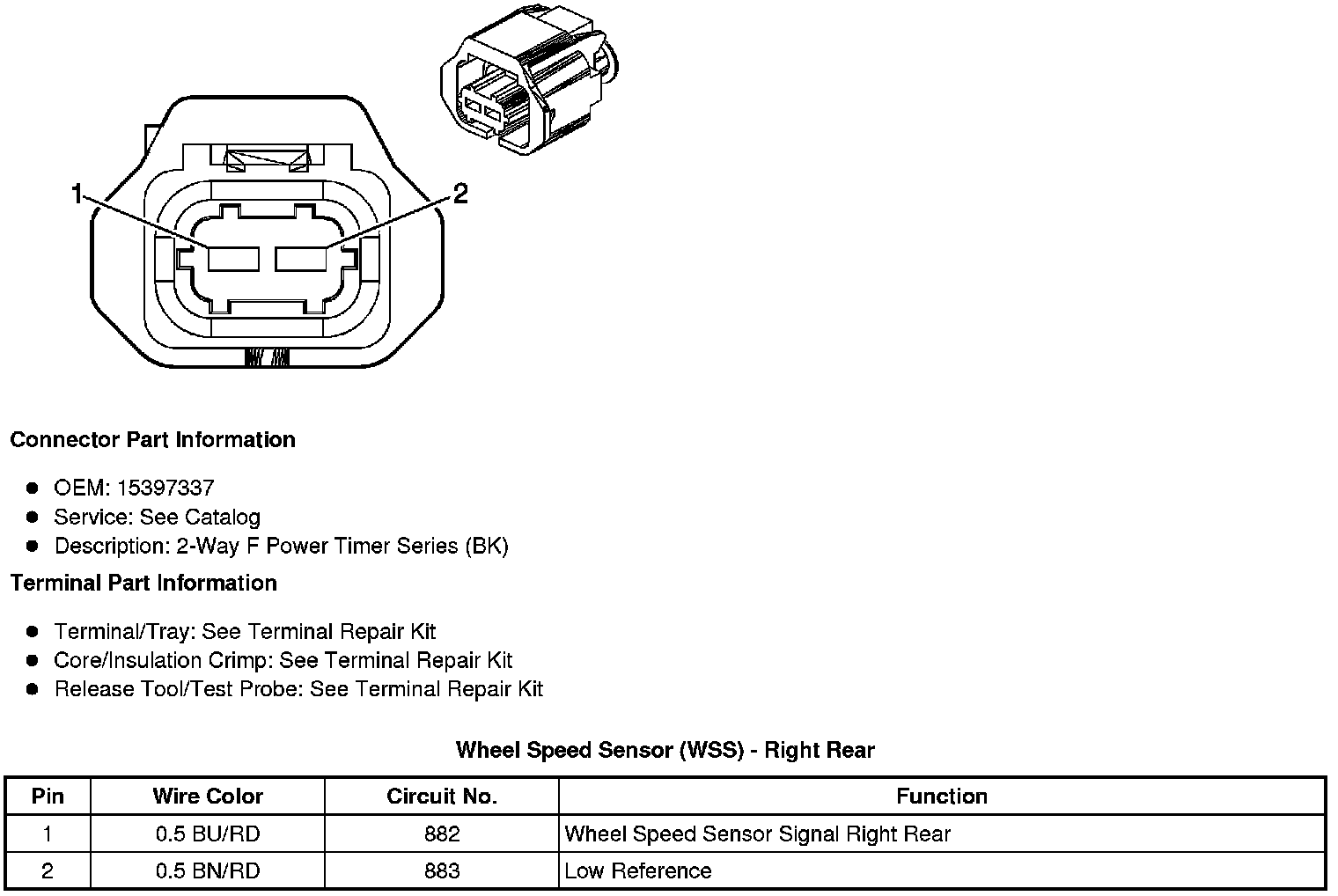

Wheel Speed Sensor (WSS) - Right Rear
