Turn Signal Lamp

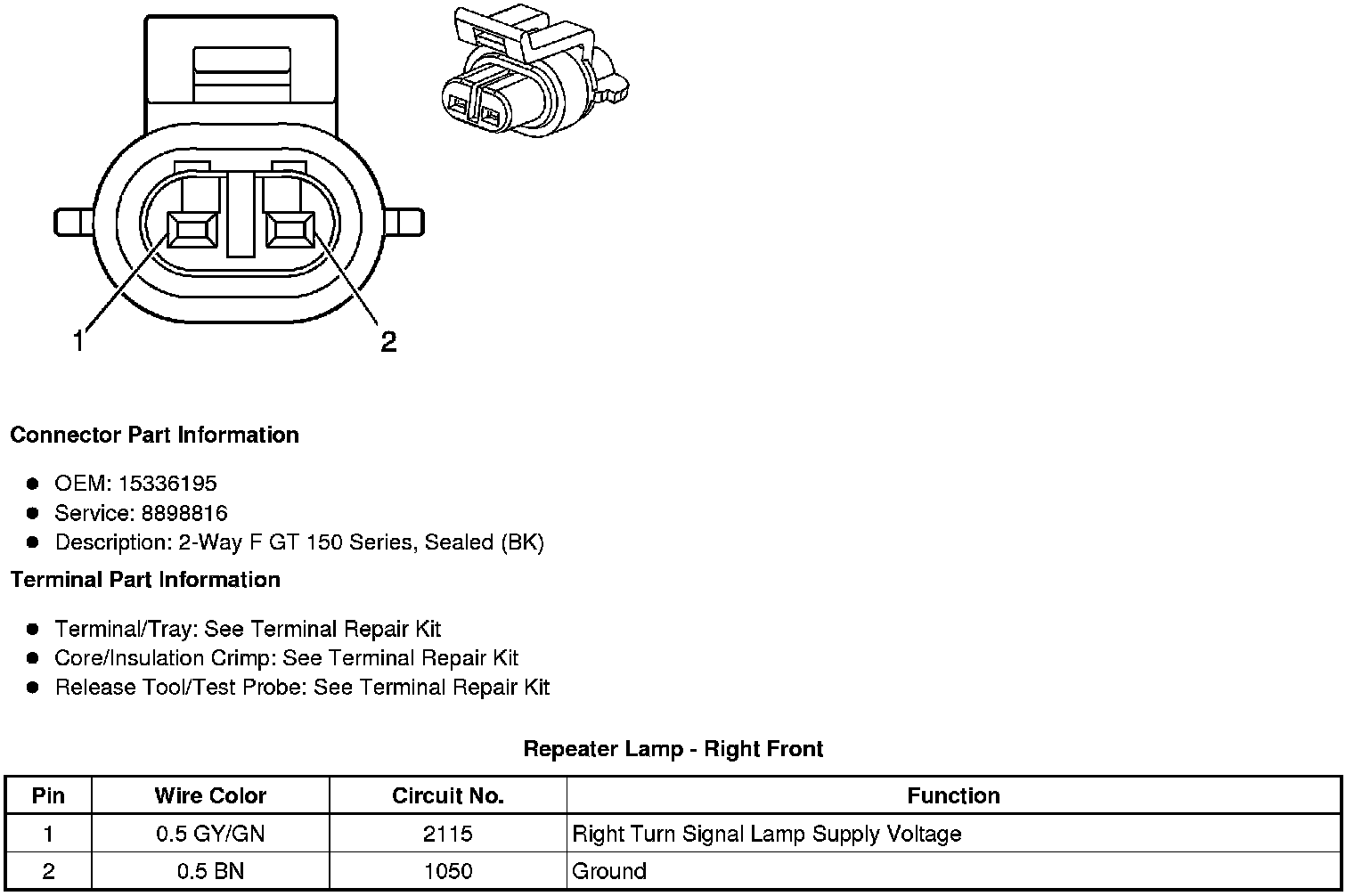

Component Connector End Views

Repeater Lamp - Left Front






Repeater Lamp - Right Front
