Home >> Saturn >> 2008 >> Astra L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch



Component Connector End Views

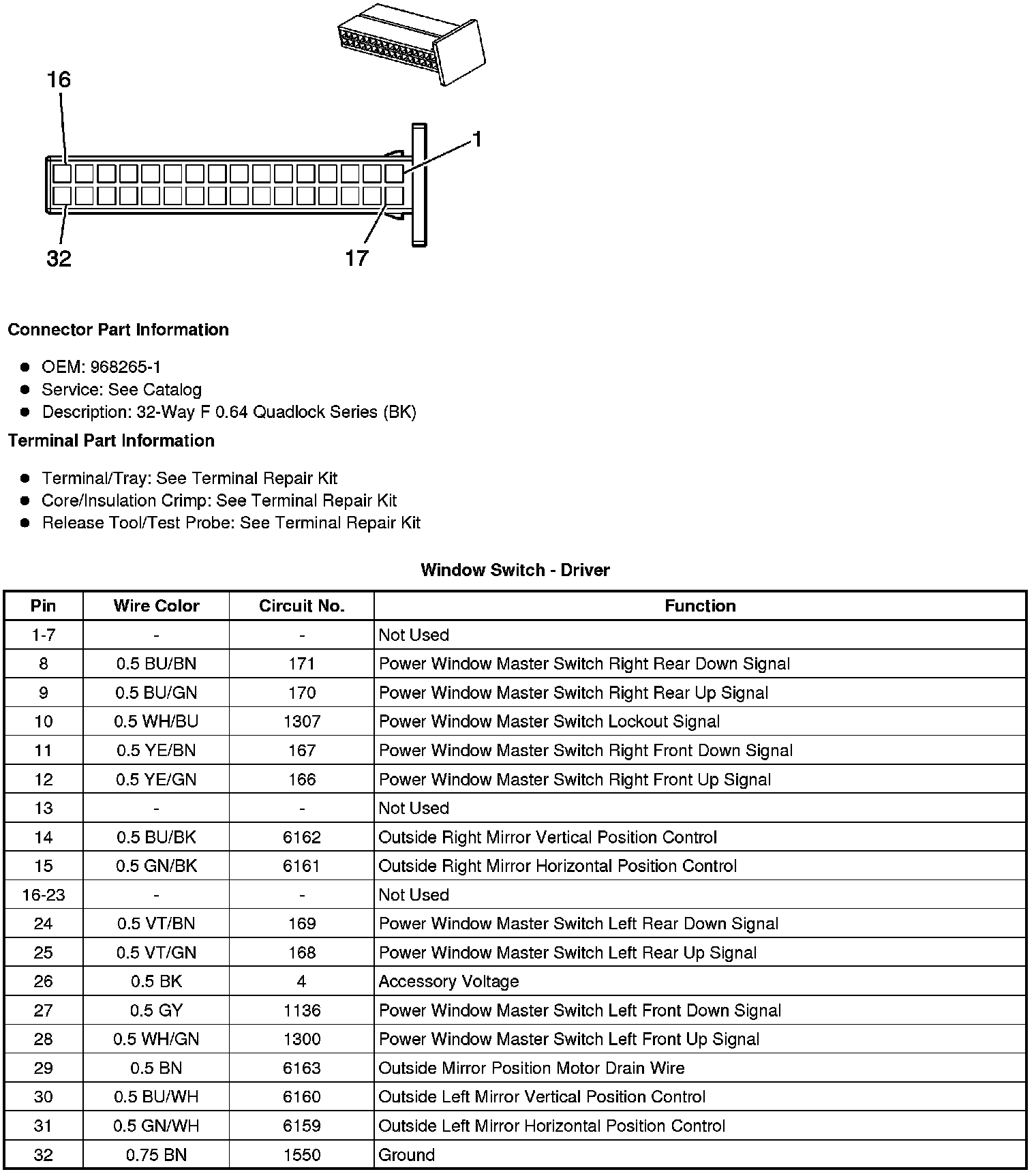

Window Switch - Driver






Window Switch - Left Rear

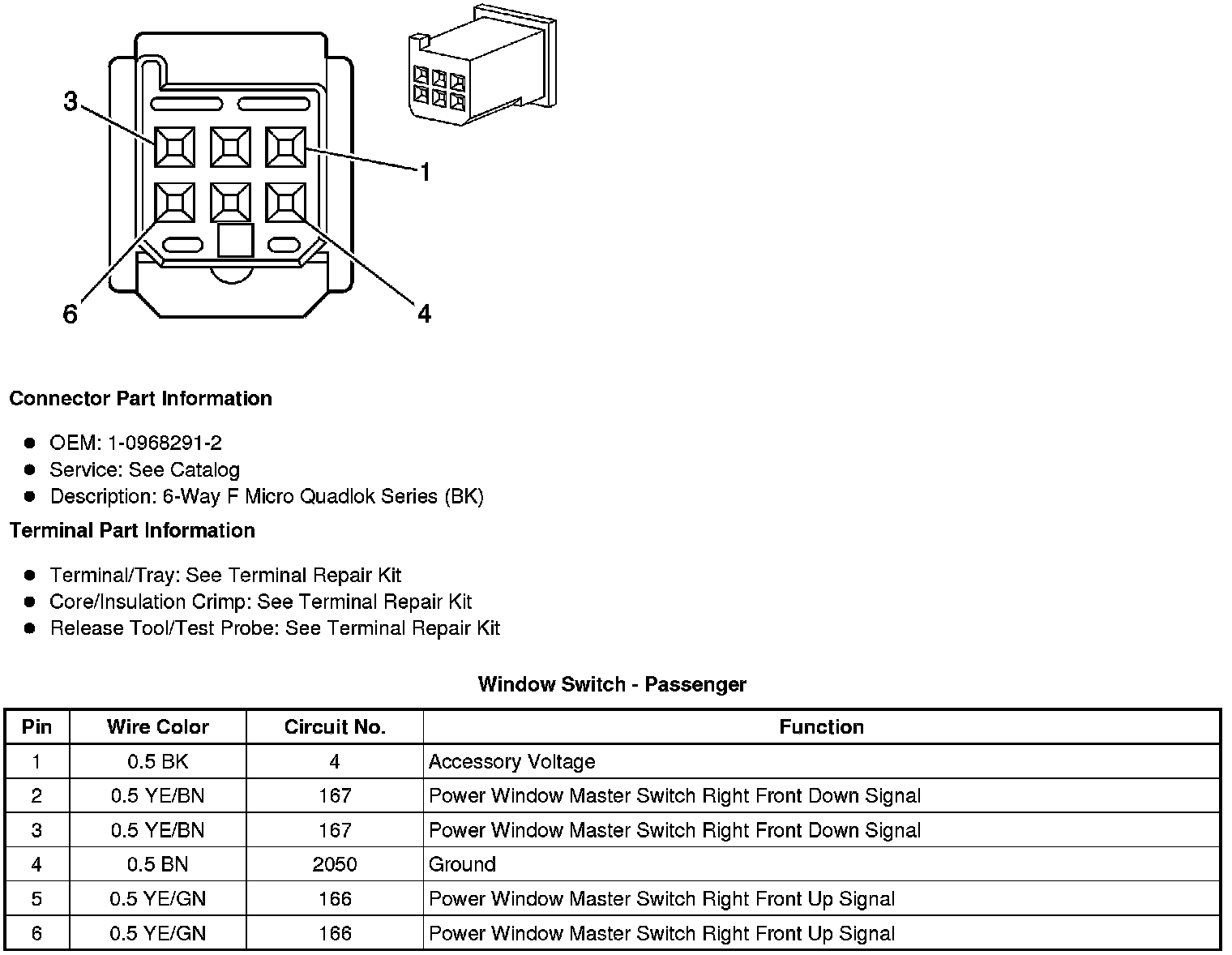

Window Switch - Passenger

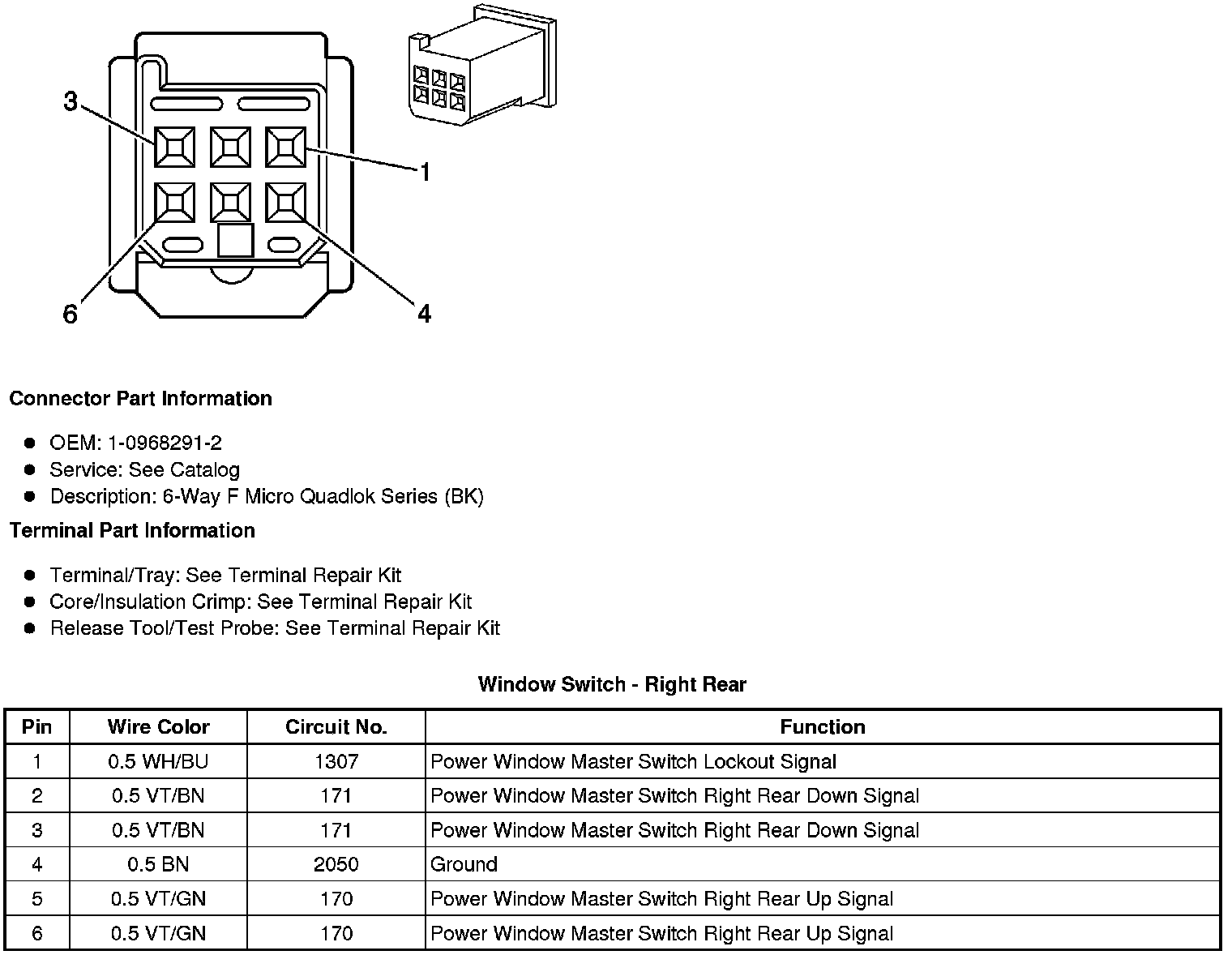

Window Switch - Right Rear
