Marker Lamp



Component Connector End Views

Side Marker Lamp - Left Front






Side Marker Lamp - Left Rear

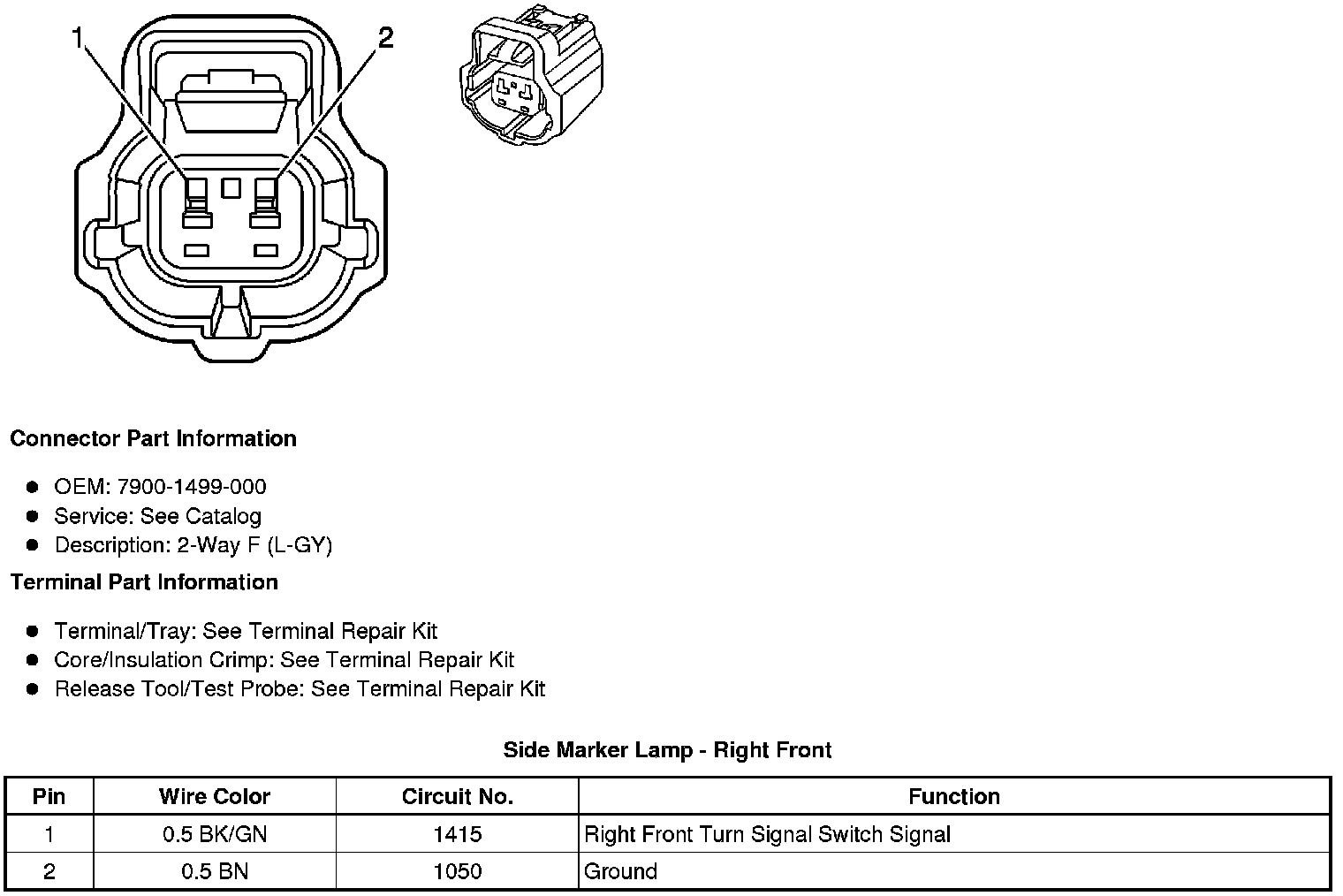

Side Marker Lamp - Right Front

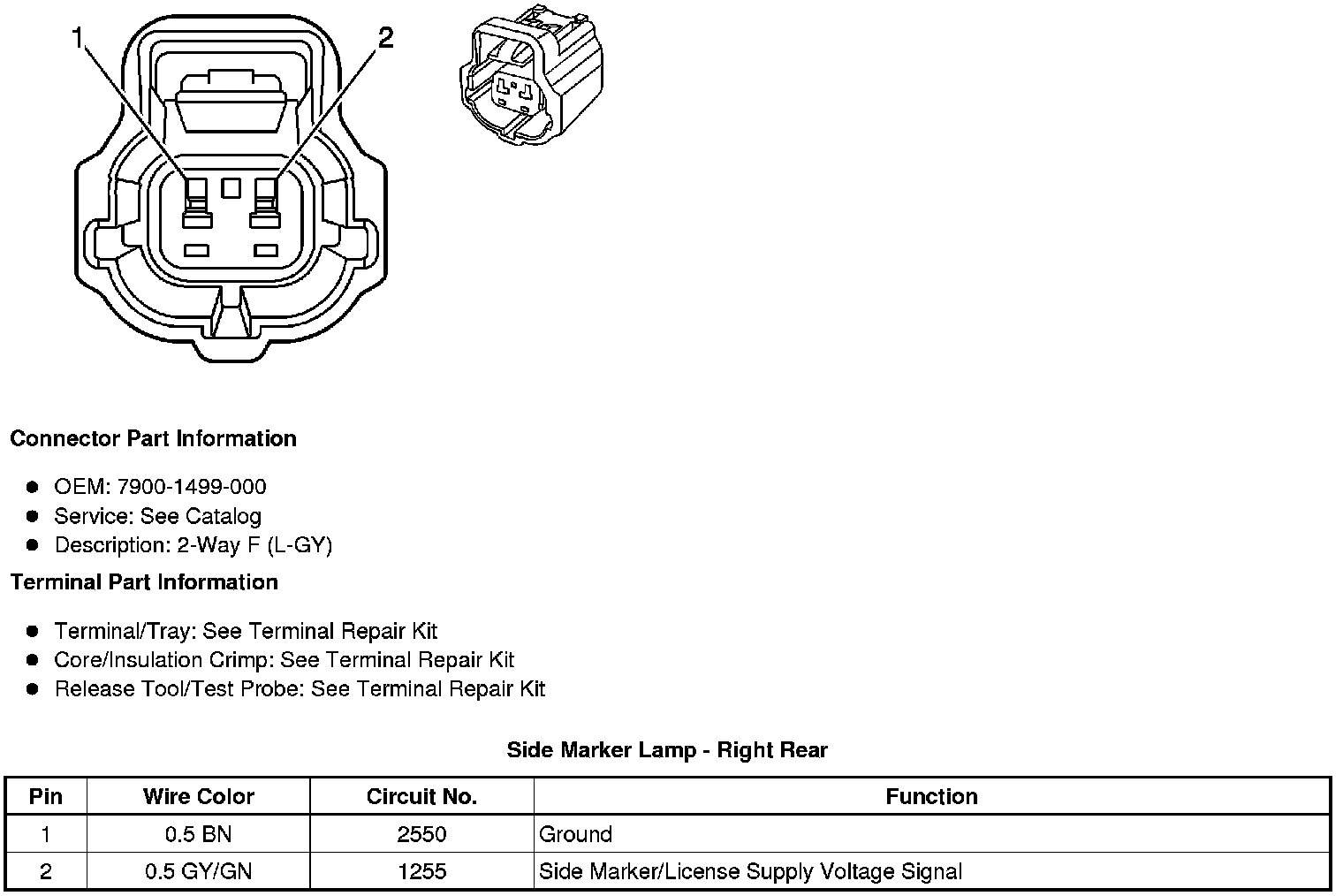

Side Marker Lamp - Right Rear
