Fuel Pressure Sensor/Switch
Fuel Pressure Sensor/Switch

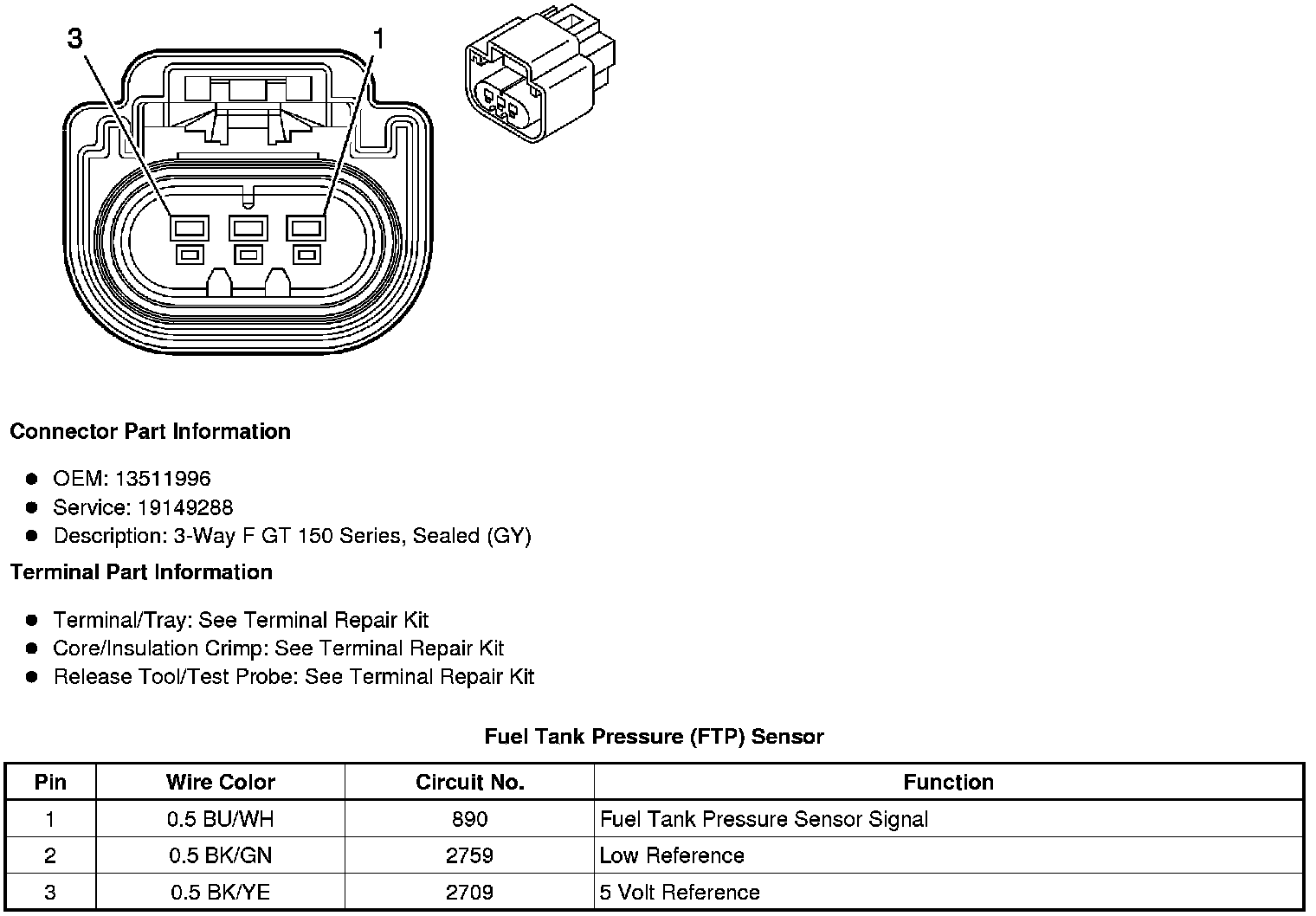

Component Connector End Views
Fuel Tank Pressure (FTP) Sensor
