Driver/Vehicle Information Display
Driver/Vehicle Information Display

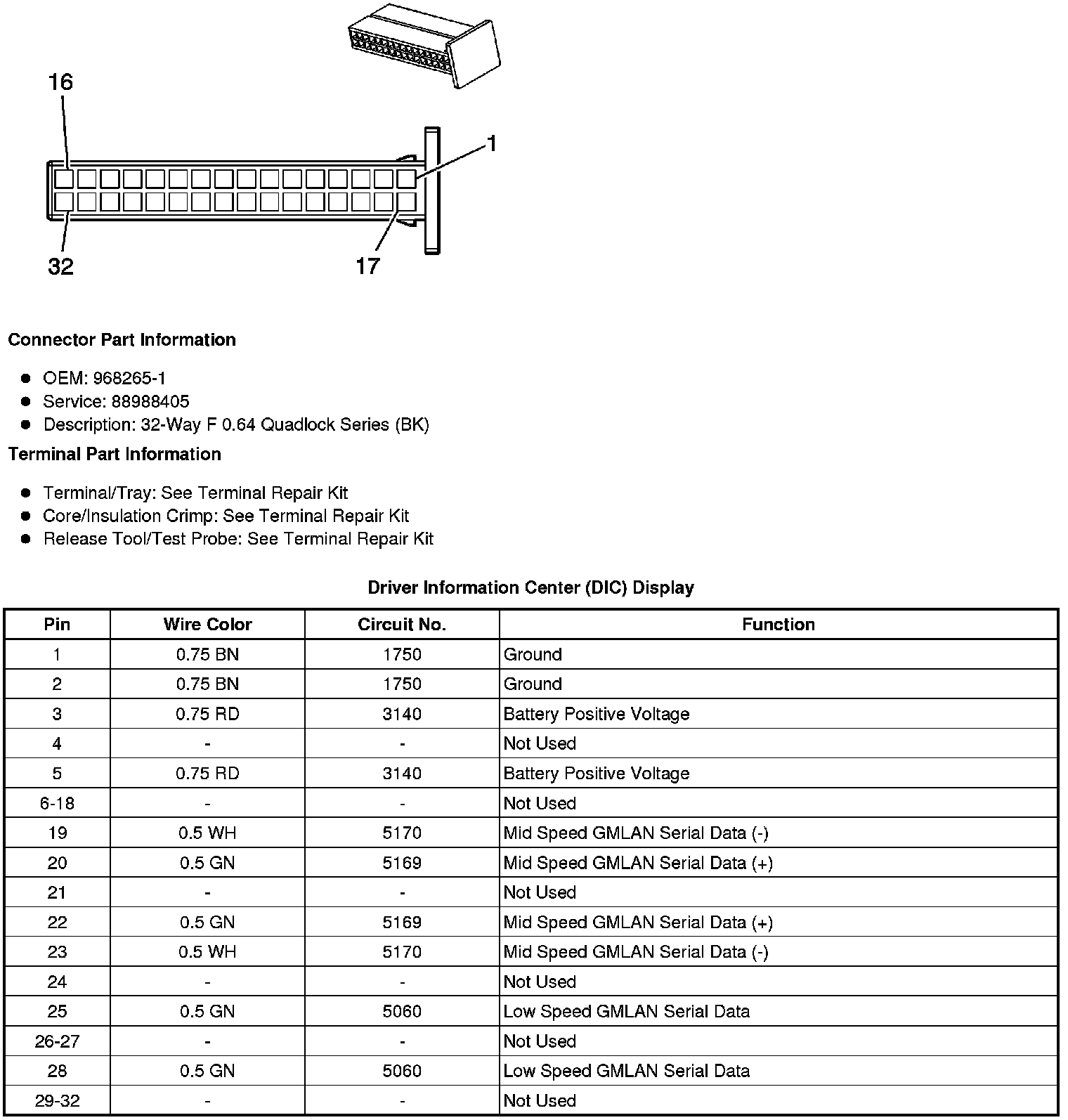

Component Connector End Views
Driver Information Center (DIC) Display
