Electrical Diagrams

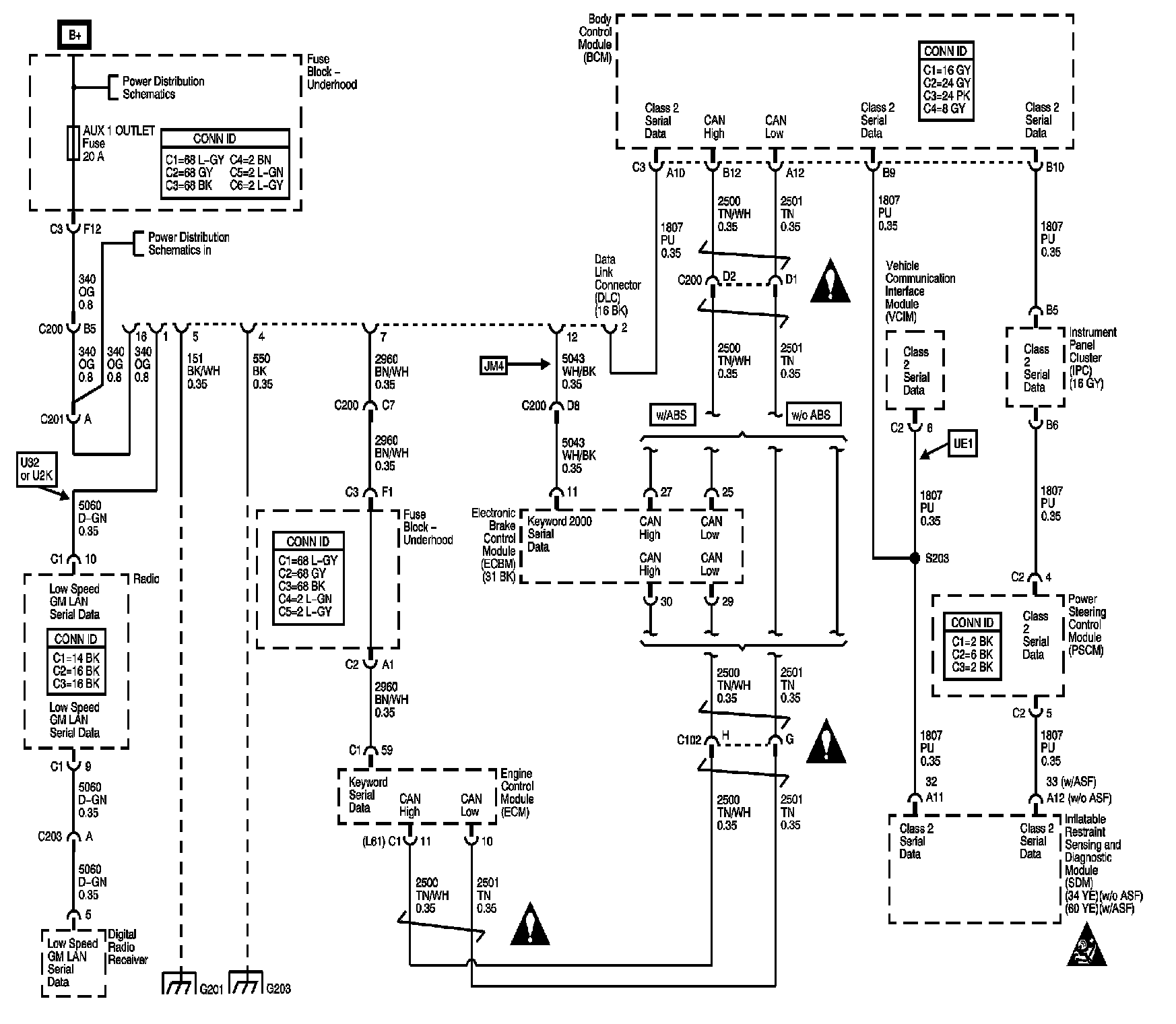

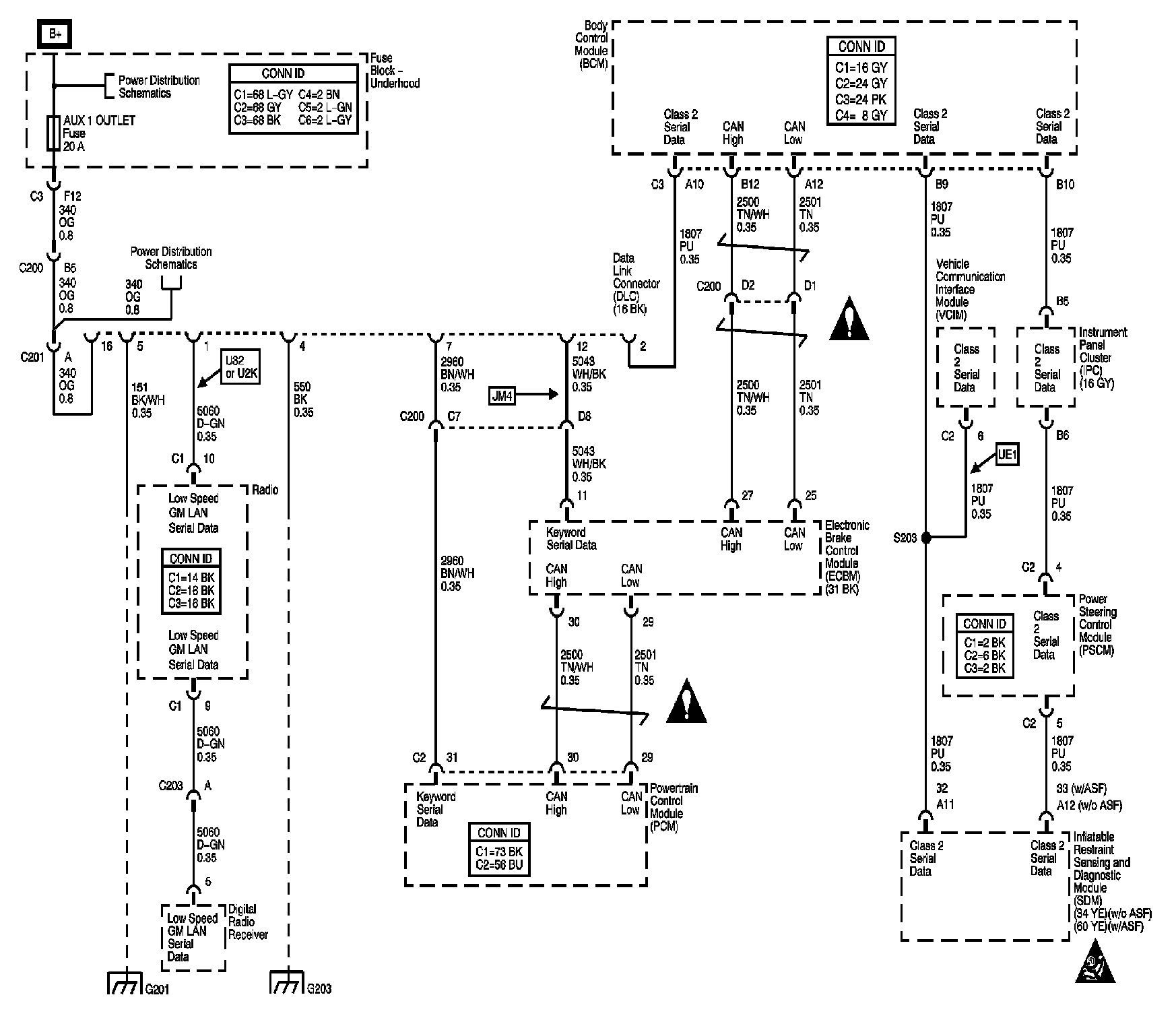

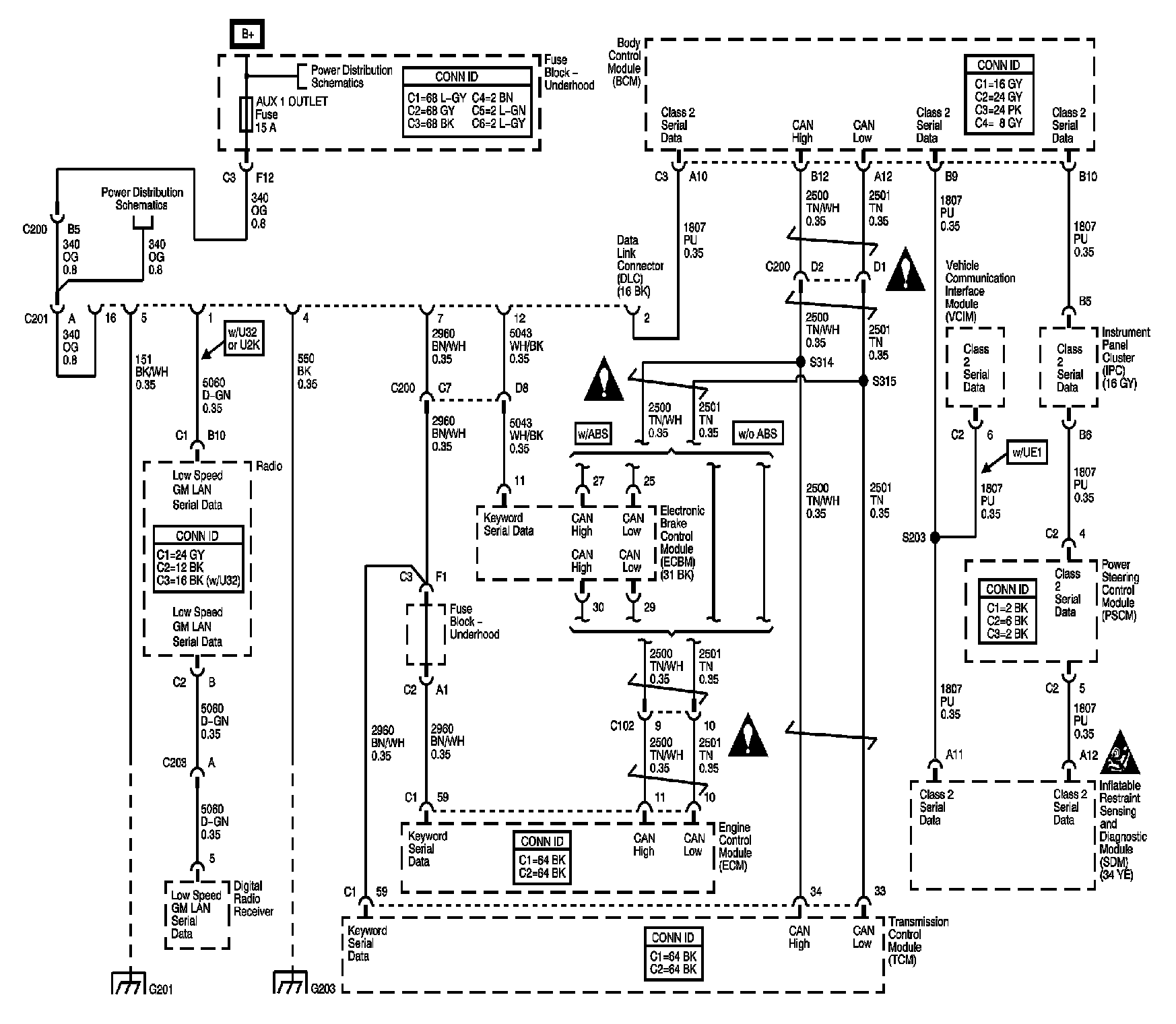

Data Communication Schematics

Automatic Transmission






Manual Transmission






Data Link (L61)






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
